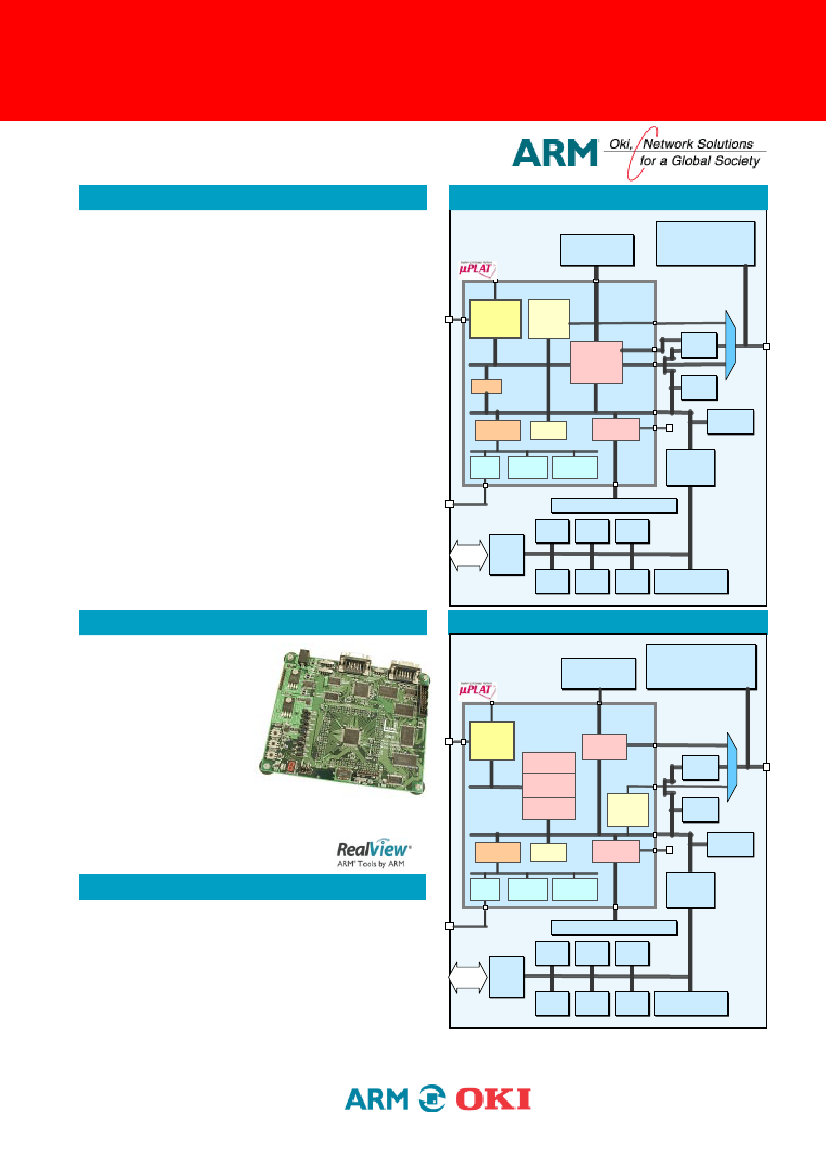

ML674K/ML675K
PRODUCT INTRODUCTION SHEET- PAGE 1 (July 30, 2003)
LOW-COST GENERAL PURPOSE 32-BIT MCUs
Description
Oki’s ML674K and ML675K series are the foundation
of general purpose 32-bit RISC microcontrollers
featuring the industry leading ARM/Thumb
®
architec-
ture. Both series offer 32KB RAM, 256K and 512K
Flash versions as well as ROM-less versions with the
ML674K series at operating at up to 33MHz and the
ML675K series at up to 60MHz.
The ML674K and ML675K series give engineers an
upward migration from propriety 16-bit MCUs to
industry leading 32-bit ARM performance. Major
functions of existing 16-bit microcontrollers, such as
on-chip Flash memory, 32KB RAM, various I/Os ( I2C
master, UARTs, USART and Clock Output), 4-channel
10-bit A/D, powerful Timers (PWM and WDT) and
power management, are supported. All parts in both
series are pin to pin compatible for a seamless
upgrade in Flash size and higher frequency with no
redesign needed of the board.
With Oki’s general purpose ARM micro-controllers,
engineers can take advantage of the additional
features and software enhancement inherent with a
32-bit architecture without noticable increase in
price from their current 16-bit MCUs.
1
SRAM
32KB
ROM-less (ML674001)
ROM-less (ML674001)
256KB (ML67Q4002)
512KB (ML67Q4003)
Block Schematic ML674K Series
FLASH ROM
µ
PLAT-7B
JTAG
Internal
Memory
Bus
Test Bus
Int/Ext
Memory
Controller
DRAM
CTRL
ARM7
Core
Test
Interface
Circuit
Bridge
P roc essor
Bus
System B us :
AMBA ™ AHB
2ch
DMAC
4KB Boot
4KB Boot
ROM
AHB-APB
Bridge
Arbiter
Interrupt
Controller
Peripheral Bus : AMBA ™ A PB
SIO
System
Timer
System
Control
AHB-APB
Bridge
Expanded Interrupt Controller
6ch
Timer
2ch
PWM
UART
16550
42
GP
I/O
Ports
16-Bit
WDT
I2C
I2C
SSIO
10-Bit ADC
4 channels
Development Kit
A CPU board is for use in
debugging embedded user
application systems to run on
the target MCUs. The board
replaces program ROM with
RAM and Flash memory,
allowing the developer to
debug without the target
memory connected.
A built-in debugging monitor
permits debugging from a PC. Comes with
schematic and sample source code and is ideal for
use as target board in conjunction with the
RealView Developer Kit for Oki.
Block Schematic ML675K Series
SRAM
32KB
ROM-less (ML675001)
ROM-less (ML675001)
256KB (ML67Q5002)
256KB (ML67Q5002)
512KB (ML67Q5003)
512KB (ML67Q5003)
FLASH ROM
µ
PLAT-7D
JTAG
Internal
Memory
Bus
SRAM
Controller
Test
Bus
ARM7
Core
Unified
8KB Cache
P roc essor
Bus
System Bus :
AMBA ™ A HB
Cache
Controller
Pro_Bus
AHB Bridge
Test
Interface
Circuit
Interrupt
Controller
DRAM
CTRL
CTRL
2ch
DMAC
4KB Boot
4KB Boot
ROM
AHB-APB
Bridge
Arbiter
Peripheral Bus : AMBA ™ APB
Benefits and Typical Applications
• Optimum MIPS/Watt
performance, small chip
• High code density using
Thumb
®
instructions
• Upwards software compatible
• Simple structured core:
small chip, current and price
• Wide penetration in the world
industry, numerous vendors.
•
•
•
•
•
•
•
•
•
DVD, MO drive
Car radio
Printers
Games, Toys
Industrial controls
Modems
POS terminal
Card reader/writer
Bar code reader
SIO
System
Timer
System
Control
AHB-APB
Bridge
Expanded Interrupt Controller
6ch
Timer
2ch
PWM
UART
16550
42
GP
I/O
Ports
16-Bit
WDT
I2C
I2C
SSIO
10-Bit ADC
4ch
continued on page 2
ML674K/ML675K

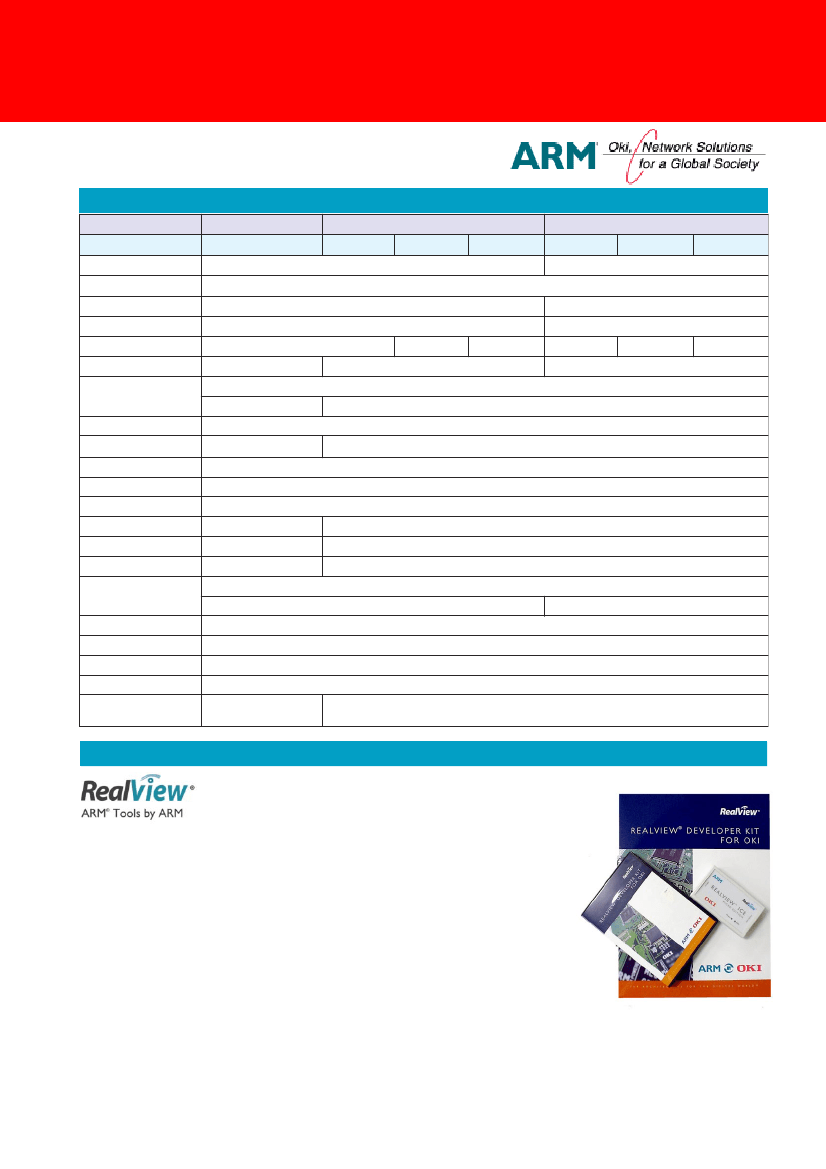

PRODUCT INTRODUCTION SHEET- PAGE 2 (July 28, 2003)
LOW-COST GENERAL PURPOSE 32-BIT MCUs
Essential Features
Base MCU
Part Number
CPU Platform
CPU Core
Clock
Cache Memory
Internal ROM
Internal RAM
External Memory Controller
DMA
Interrupt Controller
System Timer
Expanded Timer
PWM/WDT
Serial Interface
GPIO
A/DC
Power Management
Power Supply
Operating Current
Power-down Current
Operating Temperature
P a cka g e s
128-TQFP (14 x 14mm),
144-LQFP (11 x 11mm)
UART x 2
32-bit
10-bit x 8 channels
internal 18, external 5
8K B
ROM-less
1 to 33MHz (29MIPS)
none
256K B
32K B
ROM/Flash, SRAM, DRAM
2 I/O banks
2 channles
internal 23, external 5
16-bit x 1 channel
16-bit x 6 channels
16-bit x 2 / 16-bit
2 I/O banks
512K B
ML674000
ML674001
•
PLAT-7B
ARM7TDMI
ML674001 series
ML67Q4002
ML67Q4003
1
ML675001 Series
ML675001
ML67Q5002
•
PLAT-7D
ML67Q5003
1 to 60MHz (54MIPS)
8KB unified, 43-way set associative
ROM-less
256K B
32K B
512K B
4 channels: UART x2, SSIO, I2C
42-bit
10-bit x 4 channels
Standby (all clocks stopped) Halt (clock signal to CPU or other component stopped)
Clock gear (1/1, 1/2, 1/4, 1/8, 1/16)
Core: 2.5V (10%), I/Os: 3.3V (10%)
Core: 25mA max., I/O: 30mA max (@16MHz)
Clock gear (1/1, 1/2, 1/4, 1/8, 1/16), 1/32
STANDBY: core 45
•
A max, I/O 5
•
A max. (Ta = 25C), HALT: core 15mA max, I/O 5mA max (@16MHz)
-40 to +85 C
144-LQFP (20 x 20mm), 144-FBGA (11 x 11mm)
Development Tool
Jointly developed by ARM and Oki Electric as a complete, low-
cost solution for Oki’s ML674K/ML675K series ARM core general-
purpose microcontroller products, the RealView
®
Developer Kit for Oki is the
leading edge tool suite for software development. Being the most comprehensive
tool package forwriting, compiling, debugging and integrating systems, the kit is
based on components of the ARM RealView development solution with
functionality tailored to the specific requirements of Oki ARM7 MCU products.
Comprised of the RealView targeted compiler, and a powerful GUI-based
RealView debugger, the complementary ARM RealView ICE Micro Edition
module provides JTAG run control through a standard 8 MHz JTAG TAP at data
rates of 100 KB/second. The industry-leading optimization facilities of the RealView
Compiler help the developer to reduce system memory cost, through smaller
code size and increased system performance. A low price can be offered since
the functionality is precisely tailored to Oki’s ARM7 controllers. Moreover, a fully
functional evaluation version restricted by the number of run cycles or by a 60
day time-out is available.
