MR27V1652DRA

描述：
OTP ROM, 1MX16, 80ns, CMOS, PDIP42, 0.600 INCH, 2.54 MM PITCH, PLASTIC, DIP-42
分类：
存储    存储
文件大小：
120KB，共11页
制造商：
LAPIS Semiconductor Co Ltd
概述
OTP ROM, 1MX16, 80ns, CMOS, PDIP42, 0.600 INCH, 2.54 MM PITCH, PLASTIC, DIP-42
器件参数
参数名称
属性值
是否Rohs认证
不符合
厂商名称
LAPIS Semiconductor Co Ltd
零件包装代码
DIP
包装说明
DIP, DIP42,.6
针数
42
Reach Compliance Code
unknown
ECCN代码
EAR99
最长访问时间
80 ns
备用内存宽度
8
I/O 类型
COMMON
JESD-30 代码
R-PDIP-T42
JESD-609代码
e0
长度
51.98 mm
内存密度
16777216 bit
内存集成电路类型
OTP ROM
内存宽度
16
功能数量
1
端子数量
42
字数
1048576 words
字数代码
1000000
工作模式
ASYNCHRONOUS
最高工作温度
70 °C
最低工作温度
组织
1MX16
输出特性
3-STATE
封装主体材料
PLASTIC/EPOXY
封装代码
DIP
封装等效代码
DIP42,.6
封装形状
RECTANGULAR
封装形式
IN-LINE
并行/串行
PARALLEL
峰值回流温度（摄氏度）
NOT SPECIFIED
电源
3.3 V
认证状态
Not Qualified
座面最大高度
5.08 mm
最大待机电流
0.00005 A
最大压摆率
0.1 mA
最大供电电压 (Vsup)
3.6 V
最小供电电压 (Vsup)
3 V
标称供电电压 (Vsup)
3.3 V
表面贴装
NO
技术
CMOS
温度等级
COMMERCIAL
端子面层
Tin/Lead (Sn/Pb)
端子形式
THROUGH-HOLE
端子节距
2.54 mm
端子位置
DUAL
处于峰值回流温度下的最长时间
NOT SPECIFIED
宽度
15.24 mm
文档预览
Dear customers,
About the change in the name such as "Oki Electric Industry Co. Ltd." and
"OKI" in documents to OKI Semiconductor Co., Ltd.
The semiconductor business of Oki Electric Industry Co., Ltd. was succeeded to OKI
Semiconductor Co., Ltd. on October 1, 2008.
Therefore, please accept that although
the terms and marks of "Oki Electric Industry Co., Ltd.", “Oki Electric”, and "OKI"
remain in the documents, they all have been changed to "OKI Semiconductor Co., Ltd.".
It is a change of the company name, the company trademark, and the logo, etc. , and
NOT a content change in documents.
October 1, 2008
OKI Semiconductor Co., Ltd.
550-1 Higashiasakawa-cho, Hachioji-shi, Tokyo 193-8550, Japan
http://www.okisemi.com/en/
¡
Semiconductor
MR27V1652D
1,048,576-Word x 16-Bit or 2,097,152-Word x 8-Bit
8-Word x 16-Bit or 16-Word x 8-Bit Page Mode One Time PROM
DESCRIPTION
1A
The MR27V1652D is a 16Mbit electrically Programmable Read-Only Memory with page mode. Its
configuration can be electrically switched between 1,048,576 word x 16bit and 2,097,152 word x 8
bit. The MR27V1652D operates on a single +3.3V power supply and is TTL compatible. The MR27
V1652D provides Page mode which can greatly reduce the read access time. Since the MR27V1652
D operates asynchronously , external clocks are not required , making this device easy-to-use. The
MR27V1652D is suitable as large-capacity fixed memory for microcomputers and data terminals. It
is manufactured using a CMOS double silicon gate technology and is offered in 42-pin DIP , 44-pin
SOP , 44-pin TSOP or 48-pin TSOP packages.
FEATURES
• 1,048,576 word x 16bit / 2,097,152 word x 8bit electrically switchable configuration
• Single +3.3V power supply
• Access time 80ns
Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Packages
42-pin plastic DIP (DIP42-P-600-2.54)
(Product name : MR27V1652DRA)
44-pin plastic SOP (SOP44-P-600-1.27-K)
(Product name : MR27V1652DMA)
44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) (Product name : MR27V1652DTP)
48-pin plastic TSOP (TSOP II 48-P-550-0.80-K) (Product name : MR27V1652DTA)
November 1999
1/10
MR27V1652D

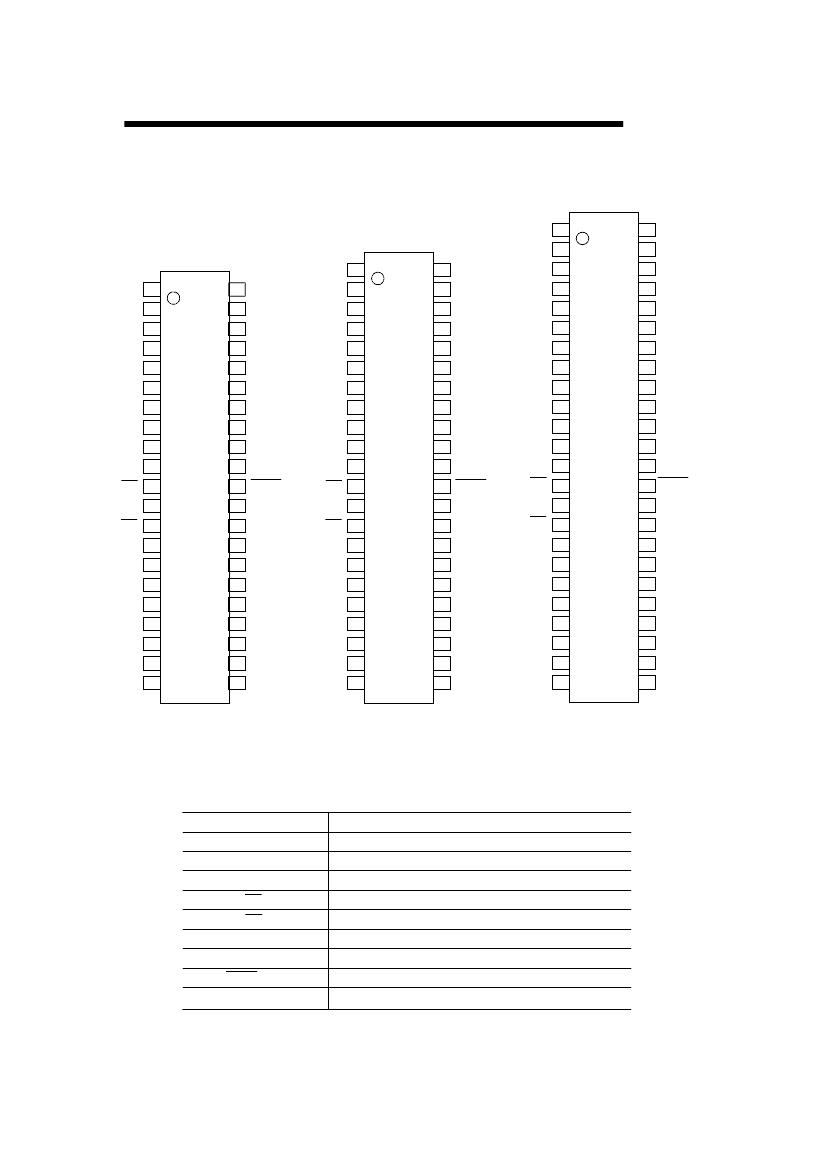

PIN CONFIGURATION (TOP VIEW)
NC 1
NC 2
A18 1
A17 2
A7 3
A6 4
A5 5
A4 6
A3 7
A2 8
A1 9
A0 10
CE 11
V
SS
12
OE 13
D0 14
D8 15
D1 16
D9 17
D2 18
D10 19
D3 20
D11 21
42 A19
41 A8
40 A9
39 A10
38 A11
37 A12
36 A13
35 A14
34 A15
33 A16
32 BYTE/Vpp
31 V
SS
30 D15/A-1
29 D7
28 D14
27 D6
26 D13
25 D5
24 D12
23 D4
22 V
CC
42-pin DIP
NC 1
A18 2
A17 3
A7 4
A6 5
A5 6
A4 7
A3 8
A2 9
A1 10
A0 11
CE 12
V
SS
13
OE 14
D0 15
D8 16
D1 17
D9 18
D2 19
D10 20
D3 21
D11 22
44 NC
43 A19
42 A8
41 A9
40 A10
39 A11
38 A12
37 A13
36 A14
35 A15
34 A16
33 BYTE/Vpp
32 V
SS
31 D15/A-1
30 D7
29 D14
28 D6
27 D13
26 D5
25 D12
24 D4
23 V
CC
NC 3
A18 4
A17 5
A7 6
A6 7
A5 8
A4 9
A3 10
A2 11
A1 12
A0 13
CE 14
V
SS
15
OE 16
D0 17
D8 18
D1 19
D9 20
D2 21
D10 22
D3 23
D11 24
48 NC
47 NC
46 NC
45 A19
44 A8
43 A9
42 A10
41 A11
40 A12
39 A13
38 A14
37 A15
36 A16
35 BYTE/Vpp
34 V
SS
33 D15/A-1
32 D7
31 D14
30 D6
29 D13
28 D5
27 D12
26 D4
25 V
CC
44-pin SOP , TSOP (II)
48-pin TSOP (II)
PIN NAMES
D15/A-1
A0 - A19
D0 - D14
CE
OE
V
CC
V
SS
BYTE/V
PP
NC
Address input
Data output
Chip enable
Output enable
FUNCTIONS
Data output / Address input
Power supply voltage
GND
Mode switch / Program power supply voltage
Non connection
2/10
MR27V1652D

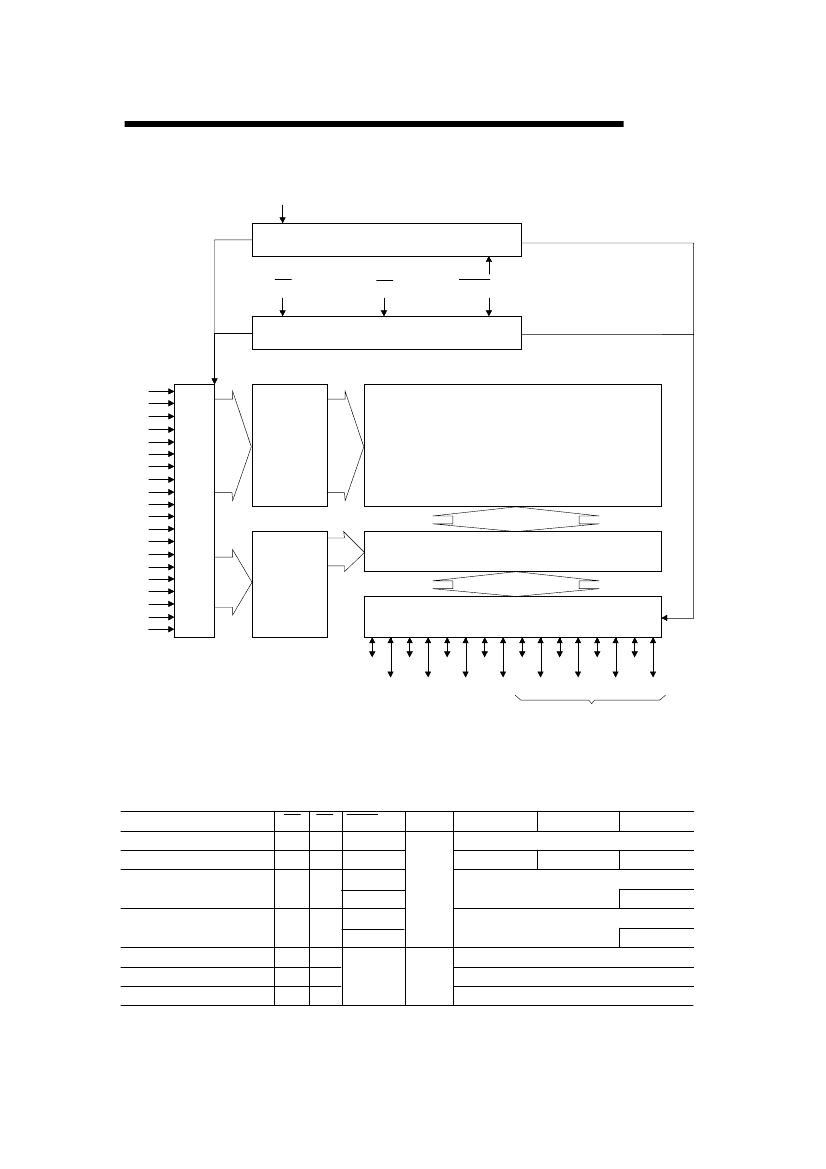

BLOCK DIAGRAM
A-1
X8/X16 Switch
CE
OE
BYTE/V
PP
PGM
CE
OE
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
Row Decoder
Memory Matrix
Address Buffer
1,048,576X16-Bit or 2,097,152X8-Bit
Column Decoder
Multiplexer & Page Data Latch
Output Buffer
D0
D1
D2
D3
D4
D5
D6
D7
D8
D10
D9
D12
D14
D15
D11
D13
In 8-bit output mode, these pins are
three-stated and pin D15 functions
as the A-1 address pin.
FUNCTION TABLE
MODE
READ (16-Bit)
READ (8-Bit)
OUTPUT DISABLE
STAND-BY
PROGRAM
PROGRAM INHIBIT
PROGRAM VERIFY
* : Don't Care
CE
L
L
L
H
L
H
H
OE BYTE/V
PP
L
L
H
*
H
H
L
9.75V
4.0V
H
L
H
L
H
L
3.3V
D
OUT
V
CC
D0 - D7
D8 - D14
D
OUT
Hi-Z
Hi-Z
*
Hi-Z
*
D
IN
Hi-Z
D
OUT
D15/A-1
L/H
3/10
MR27V1652D
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating temperature under bias
Storage temperature
Input voltage
Output voltage
Power supply voltage
Program power supply voltage
Power dissipation per package
Symbol
Topr
T
stg
V
I
V
O
V
CC
V
PP
P
D
-
relative to V
SS
Condition
-
Value
0 to 70
-55 to 125
-0.5 to V
CC
+ 0.5
-0.5 to V
CC
+ 0.5
-0.5 to 5
-0.5 to 11.5
1.0
Unit
°C
°C
V
V
V
V
W
RECOMMENDED OPERATING CONDITIONS FOR READ
(Ta=0 to 70
°C)
Parameter
V
CC
power supply voltage
V
PP
power supply voltage
Input "H" level
Input "L" level
Voltage is relative to Vss
* : Vcc+1.5V (Max.) when pulse width of overshoot is less than 10nS.
** : -1.5V (Min.) when pulse width of undershoot is less than 10nS.
Symbol
V
CC
V
PP
V
IH
V
IL
V
CC
=3.0V-3.6V
Condition
Min.
3.0
-0.5
2.2
-0.5**
Typ.
-
-
-
-
Max.
3.6
V
CC
+0.5
V
CC
+0.5*
0.6
Unit
V
V
V
V
4/10
