OKI Semiconductor
MR27V3102L
GENERAL DESCRIPTION
The MR27V3102L is a 32Mbit Production Programmed Read Only
Memory (P2ROM) with 64 bytes ID block. It offers capability for
unique ID in each P2ROM. It is ideal for applications that require
storage common data and unique ID in each device.
PEDR27V3102L-02-01
Issue Date: Jan. 20, 2006
Preliminary
block
)

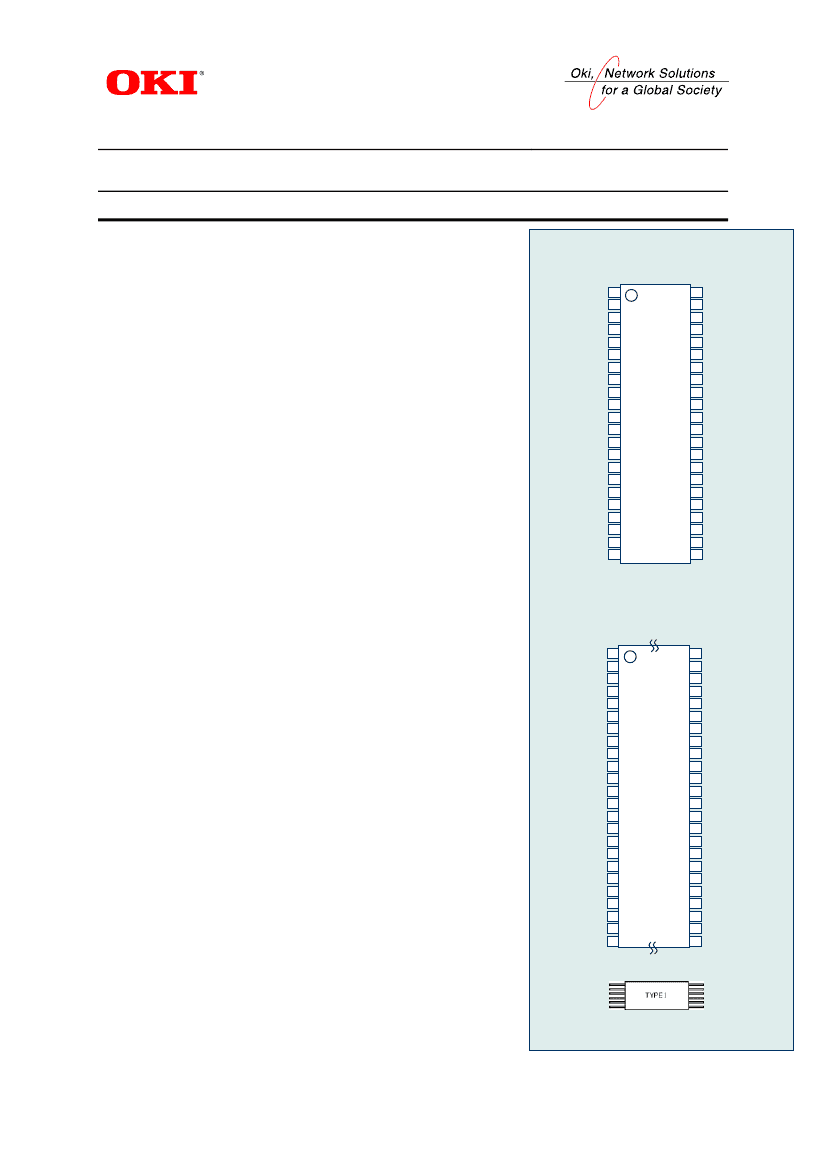

PIN CONFIGURATION (TOP VIEW)
NC
A18
A17
A7
A6
A5
A4
A3
A2
A1
A0
CE#
V
SS
OE#
D0
D8
D1
D9
D2
D10
D3
D11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
44
A20
43
A19
42
A8
41
A9
40
A10
39
A11
38
A12
37
A13
36
A14
35
A15
34
A16
33
BYTE#
32
V
SS
31
D15/A–1
30
D7
29
D14
28
D6
27
D13
26
D5
25
D12
24
D4
23
V
CC
2M–Word
x
16–Bit or 4M–Word
x
8–Bit
P2ROM
( with 32–Word
×
16–Bit or 64–Word
×
8–Bit
ID
FEATURES
· 2M-word
×
16-bit / 4M-word
×
8-bit electrically switchable configuration
· 3.0 V to 3.6 V power supply
· Access time
80 ns MAX
· Operating current
20 mA MAX(5MHz)
· Standby current
10 µA MAX
· Input/Output TTL compatible
· Three-state output
PACKAGES
· MR27V3102L-xxxMA
44-pin plastic SOP (SOP44-P-600-1.27-K)
· MR27V3102L-xxxTN
48-pin plastic TSOP (TSOP I 48-P-1220-0.50-1K)
44SOP
MEMORY ORGANIZATION
· P2ROM block:
000000 - 1FFBFF (16bit)
000000 - 3FF7FF (8bit)
1FFFE0 - 1FFFFF (16bit)
3FFFC0 - 3FFFFF (8bit)
· ID block :
· Following address is pre-programmed with OKI test data for screening
purpose.
1FFC00 - 1FFFDF (16bit)
3FF800 - 3FFFBF (8bit)
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
NC
NC
NC
NC
NC
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
A16
47
BYTE#
46
V
SS
45
D15/A–1
44
D7
43
D14
42
D6
41
D13
40
D5
39
D12
38
D4
37
V
CC
36
D11
35
D3
34
D10
33
D2
32
D9
31
D1
30
D8
29
D0
28
OE#
27
V
SS
26
CE#
25
A0
48TSOP(Type-I)
1/11
PEDR27V3102L-02-01
OKI Semiconductor
MR27V3102L / P2ROM
ID DESCRIPTION
· ID is generated by Oki and pre-programmed in ID block by OKI. ID block is 64 bytes long.
· It offers capability for unique ID in each P2ROM.
· ID composition:
(x16bit)
ID block adress
ID block adress
(x8bit)
ID block adress
ID block adress
00-16
17-1F
Oki serial no.
reserved (no data)
00-2D
2E-3F
Oki serial no.
reserved (no data)
NOTES:
· Missing number is allowed.
Missing number may occur in production (e.g. appearance inspection, etc).
· To identify ID data programmed, please do reading operation.
This device will be shipped in tray or other packing forms. ID cannot be identified visually (e.g. by position in
tray, marking, etc). Therefore, please do reading operation to identify ID.
· About additional ID programming charge and lead-time, please contact our sales.
2/11
PEDR27V3102L-02-01
OKI Semiconductor
MR27V3102L / P2ROM

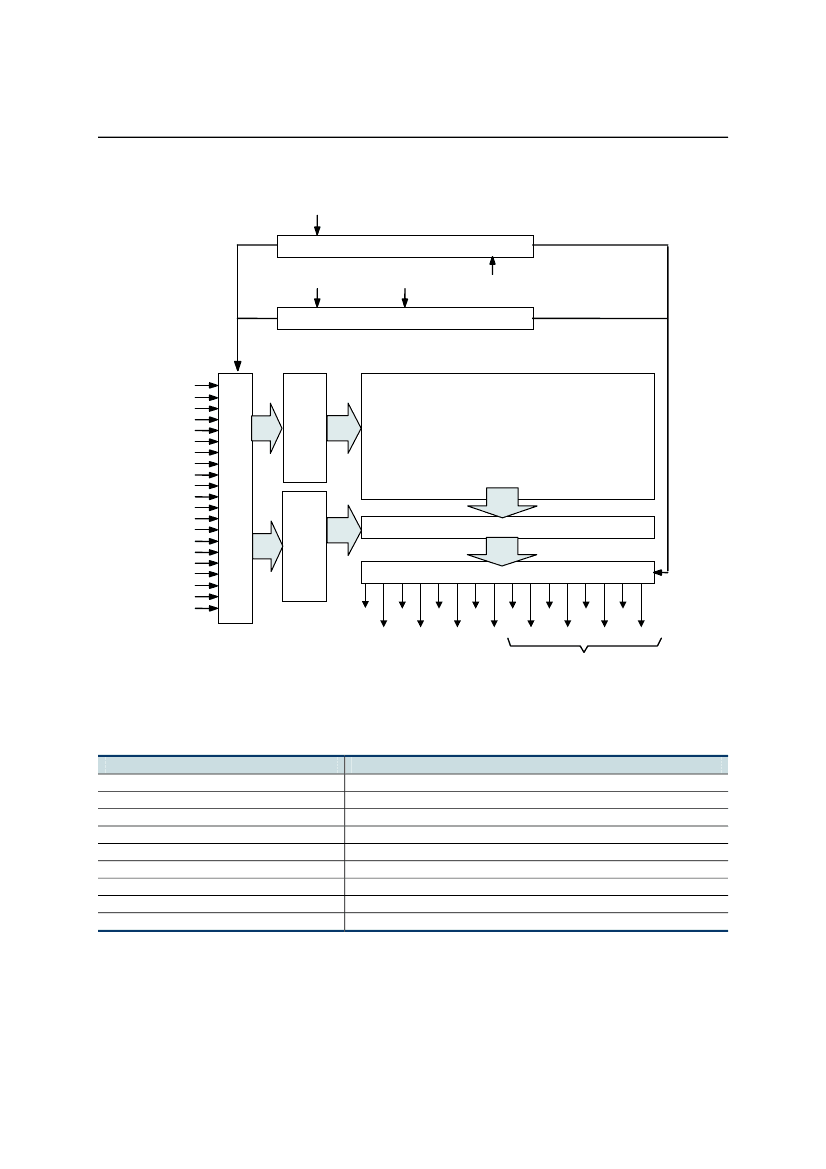

BLOCK DIAGRAM
A–1
× 8/× 16 Switch
CE#
CE
OE#
OE
BYTE#
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
Row Decoder
Memory Cell Matrix
4M × 16-Bit or 8M × 8-Bit
Address Buffer
Column Decoder
Multiplexer
Output Buffer
D0
D1
D2
D3
D4
D5
D6
D7
D8
D10
D9
D12
D14
D15
D11
D13
In 8-bit output mode, these pins
are placed in a high-Z state and
pin D15 functions as the A-1
address pin.
PIN DESCRIPTIONS
Pin name
D15 / A–1
A0 to A20
D0 to D14
CE#
OE#
BYTE#
V
CC
V
SS
NC
Functions
Data output / Address input
Address inputs
Data outputs
Chip enable input
Output enable input
Word / Byte select input
Power supply voltage
Ground
No connect
3/11
PEDR27V3102L-02-01
OKI Semiconductor
MR27V3102L / P2ROM
FUNCTION TABLE
Mode
P2ROM
ID
Read (16-Bit)
Read (8-Bit)
Read (16-Bit)
Read (8-Bit)
Output disable
Standby
CE#
L
L
L
L
L
H
OE#
L
L
L
L
H
∗
BYTE#
H
L
H
L
H
L
H
L
Address
000000 - 1FFBFF (16bit)
000000 - 3FF7FF (8bit)
1FFFE0 - 1FFFFF (16bit)
3FFFC0 - 3FFFFF (8bit)
∗
∗
3.3V
D
OUT
D
OUT
V
CC
D0 to
D7
D8 to
D14
D
OUT
Hi–Z
D
OUT
Hi–Z
Hi–Z
Hi–Z
L/H
∗
∗
L/H
D15/
A–1
∗:
Don’t Care (H or L)
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating temperature under bias
Storage temperature
Input voltage
Output voltage
Power supply voltage
Power dissipation per package
Output short circuit current
Symbol
Ta
Tstg
V
I
V
O
V
CC
P
D
I
OS
Condition
—
relative to V
SS
Ta = 25°C
—
Value
0 to 70
–55 to 125
–0.5 to V
CC
+0.5
–0.5 to V
CC
+0.5
–0.5 to 5
1.0
10
Unit
°C
°C
V
V
V
W
mA
RECOMMENDED OPERATING CONDITIONS
(Ta = 0 to 70°C)
Parameter
V
CC
power supply voltage
Input “H” level
Input “L” level
Symbol
V
CC
V
IH
V
IL
Condition
V
CC
= 3.0 to 3.6 V
Min.
3.0
2.2
–0.5∗∗
Typ.
—
—
—
Max.
3.6
V
CC
+0.5∗
0.6
Unit
V
V
V
Voltage is relative to V
SS
.
∗
: Vcc+1.5V(Max.) when pulse width of overshoot is less than 10ns.
∗∗
: -1.5V(Min.) when pulse width of undershoot is less than 10ns.
PIN CAPACITANCE
(V
CC
= 3.3 V, Ta = 25°C, f = 1 MHz)
Parameter
Input
BYTE#
Output
Symbol
C
IN1
C
IN2
C
OUT
Condition
V
I
= 0 V
V
O
= 0 V
Min.
—
—
—
Typ.
—
—
—
Max.
10
200
10
Unit
pF
4/11
PEDR27V3102L-02-01
OKI Semiconductor
MR27V3102L / P2ROM
ELECTRICAL CHARACTERISTICS
DC Characteristics
(V
CC
= 3.0 V to 3.6 V, Ta = 0 to 70°C)
Parameter
Input leakage current
Output leakage current
V
CC
power supply current
(Standby)
V
CC
power supply current
(Read)
Input “H” level
Input “L” level
Output “H” level
Output “L” level
Symbol
I
LI
I
LO
I
CCSC
I
CCST
I
CCA
V
IH
V
IL
V
OH
V
OL
Condition
V
I
= 0 to V
CC
V
O
= 0 to V
CC
CE# = V
CC
CE# = V
IH
CE# = V
IL
, OE# = V
IH
f=5MHz
—
—
I
OH
= –1 mA
I
OL
= 2 mA
Min.
—
—
—
—
—
2.2
–0.5∗∗
2.4
—
Typ.
—
—
—
—
—
—
—
—
—
Max.
10
10
10
1
20
V
CC
+0.5∗
0.6
—
0.4
Unit
µA
µA
µA
mA
mA
V
V
V
V
Voltage is relative to V
SS
.
∗
: Vcc+1.5V(Max.) when pulse width of overshoot is less than 10ns.
∗∗
: -1.5V(Min.) when pulse width of undershoot is less than 10ns.
5/11
