Semiconductor
MR27V3202D
2,097,152-Word x 16-Bit or 4,194,304-Word x 8-Bit
Production Programmed Read Only Memory (P2ROM)
DESCRIPTION
1A
The MR27V3202D is a 32Mbit Production Programmed Read-Only Memory (P2ROM) whose
configuration can be electrically switched between 2,097,152 word x 16bit and 4,194,304 word x 8
bit. The MR27V3202D operates on a single +3V-3.3V power supply and is TTL compatible. Since
the MR27V3202D operates asynchronously , external clocks are not required , making this device
easy-to-use. The MR27V3202D is suitable as large-capacity fixed memory for microcomputers and
data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 44-
pin SOP or 48-pin TSOP packages.
FEATURES
• 2,097,152 word x 16bit / 4,194,304 word x 8bit electrically switchable configuration
• Single +3V-3.3V power supply
• Access time
120ns access time (Vcc=+3V)
100ns access time (Vcc=+3.3V)
• Input / Output TTL compatible
• Three-state output
• Packages
44-pin plastic SOP (SOP44-P-600-1.27-K)
(Product name : MR27V3202D-xxMA)
48-pin plastic TSOP (TSOP II 48-P-550-0.80-K) (Product name : MR27V3202D-xxTA)
November 1999
1/8
MR27V3202D

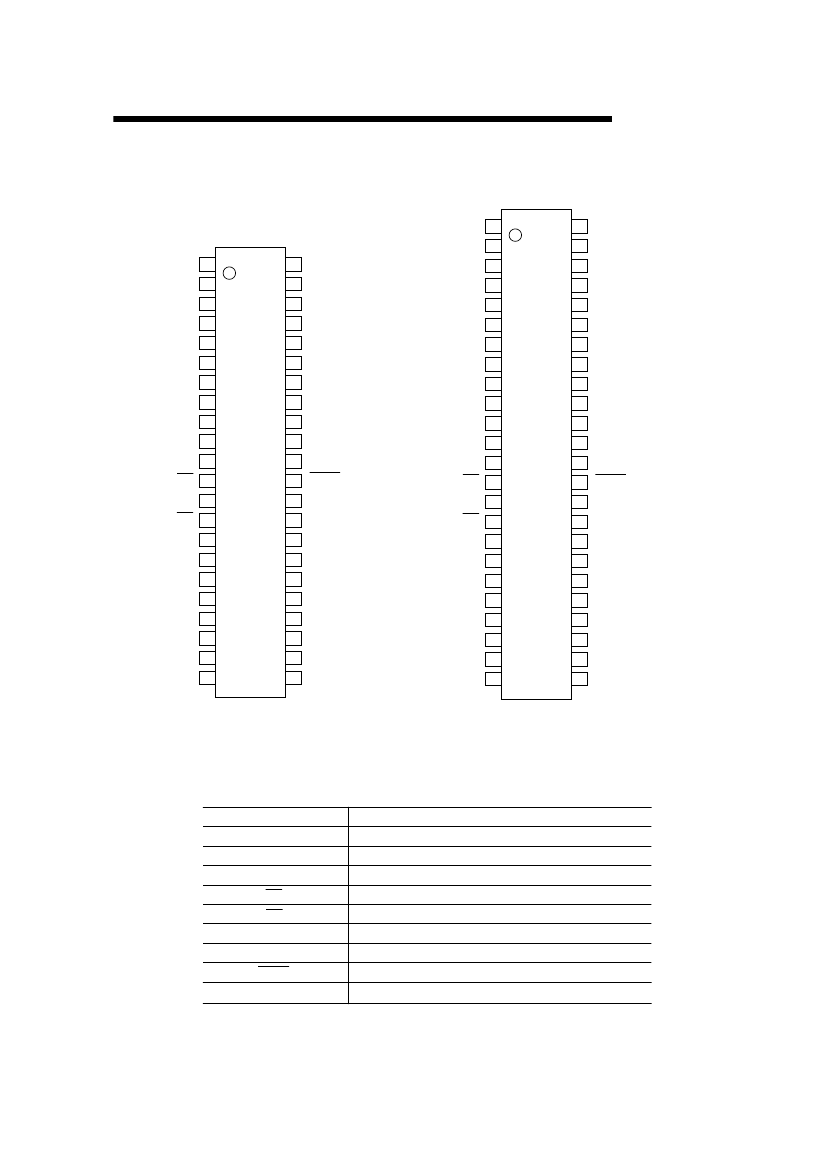

PIN CONFIGURATION (TOP VIEW)
NC 1
NC 2
NC 1
A18 2
A17 3
A7 4
A6 5
A5 6
A4 7
A3 8
A2 9
A1 10
A0 11
CE 12
V
SS
13
OE 14
D0 15
D8 16
D1 17
D9 18
D2 19
D10 20
D3 21
D11 22
44 A20
43 A19
42 A8
41 A9
40 A10
39 A11
38 A12
37 A13
36 A14
35 A15
34 A16
33 BYTE
32 V
SS
31 D15/A-1
30 D7
29 D14
28 D6
27 D13
26 D5
25 D12
24 D4
23 V
CC
44-pin SOP
NC 3
A18 4
A17 5
A7 6
A6 7
A5 8
A4 9
A3 10
A2 11
A1 12
A0 13
CE 14
V
SS
15
OE 16
D0 17
D8 18
D1 19
D9 20
D2 21
D10 22
D3 23
D11 24
48 NC
47 NC
46 A20
45 A19
44 A8
43 A9
42 A10
41 A11
40 A12
39 A13
38 A14
37 A15
36 A16
35 BYTE
34 V
SS
33 D15/A-1
32 D7
31 D14
30 D6
29 D13
28 D5
27 D12
26 D4
25 V
CC
48-pin TSOP (II)
PIN NAMES
D15/A-1
A0-A20
D0-D14
CE
OE
V
CC
V
SS
BYTE
NC
Address input
Data output
Chip enable
Output enable
FUNCTIONS
Data output / Address input
Power supply voltage
GND
Mode switch
Non connection
2/8
MR27V3202D

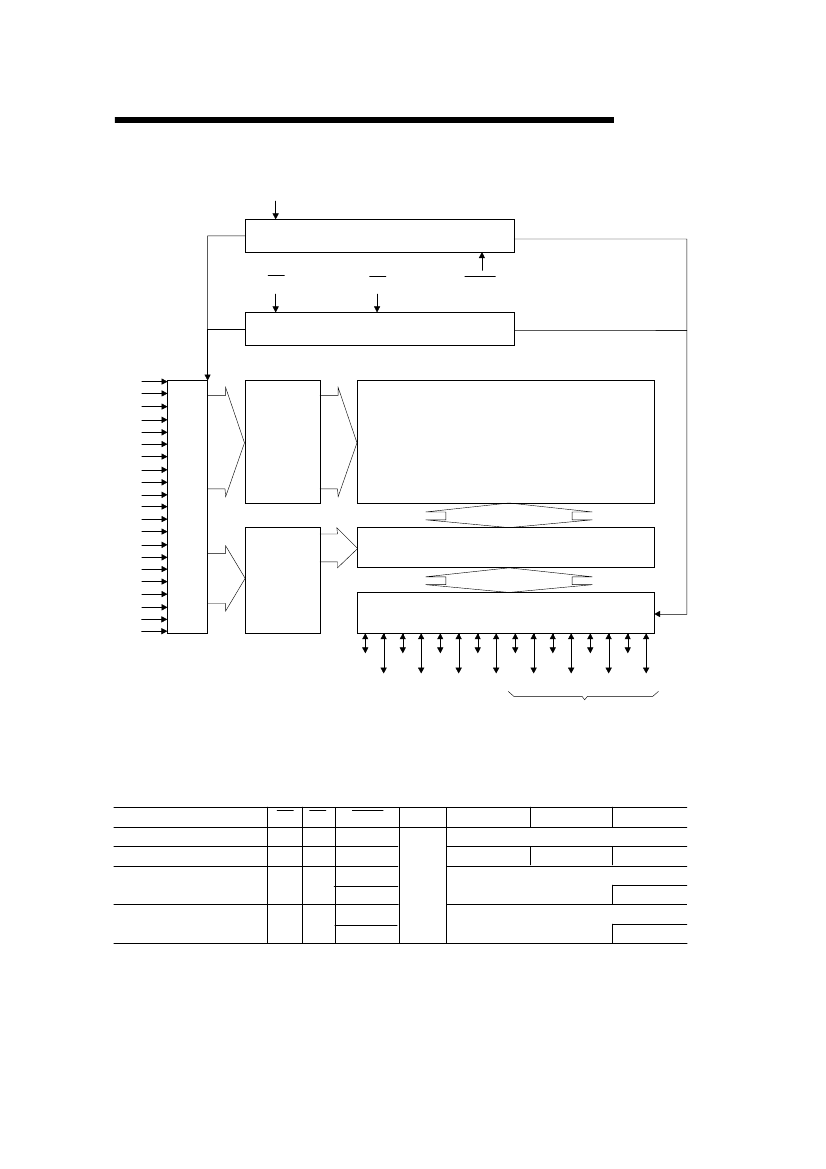

BLOCK DIAGRAM
A-1
X8/X16 Switch
CE
OE
BYTE
CE
OE
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
Row Decoder
Memory Matrix
Address Buffer
2,097,152X16-Bit or 4,194,304X8-Bit
Column Decoder
Multiplexer
Output Buffer
D0
D1
D2
D3
D4
D5
D6
D7
D8
D10
D9
D12
D14
D15
D11
D13
In 8-bit output mode, these pins are
three-stated and pin D15 functions
as the A-1 address pin.
FUNCTION TABLE
MODE
READ (16-Bit)
READ (8-Bit)
OUTPUT DISABLE
STAND-BY
*: Don't Care
CE
L
L
L
H
OE
L
L
H
*
BYTE
H
L
H
L
H
L
3.0V
to
3.3V
D
OUT
V
CC
D0 - D7
D8 - D14
D
OUT
Hi-Z
Hi-Z
*
Hi-Z
*
D15/A-1
L/H
3/8
MR27V3202D
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating temperature under bias
Storage temperature
Input voltage
Output voltage
Power supply voltage
Power dissipation per package
Symbol
T
opr
T
stg
V
I
V
O
V
CC
P
D
-
relative to V
SS
Condition
-
Value
0 to 70
-55 to 125
-0.5 to V
CC
+ 0.5
-0.5 to V
CC
+0.5
-0.5 to 5
1.0
Unit
°C
°C
V
V
V
W
RECOMMENDED OPERATING CONDITIONS
(Ta=0 to 70
°C)
Parameter
V
CC
power supply voltage
Input "H" level
Input "L" level
Voltage is relative to Vss
* : Vcc+1.5V (Max.) when pulse width of overshoot is less than 10nS.
** : -1.5V (Min.) when pulse width of undershoot is less than 10nS.
Symbol
V
CC
V
IH
V
IL
V
CC
=2.7V-3.6V
Condition
Min.
2.7
2.2
-0.5**
Typ.
-
-
-
Max.
3.6
V
CC
+0.5*
0.6
Unit
V
V
V
4/8
