MR27V402D
262,144-Word x 16-Bit or 524,288-Word x 8-Bit One Time PROM
DESCRIPTION
1A
The MR27V402D is a 4Mbit electrically Programmable Read-Only Memory whose configuration can
be electrically switched between 262,144 word x 16bit and 524,288 word x 8bit. The MR27V402D
operates on a single +3V-3.3V power supply and is TTL compatible. Since the MR27V402D
operates asynchronously , external clocks are not required , making this device easy-to-use. The
MR27V402D is suitable as large-capacity fixed memory for microcomputers and data terminals. It is
manufactured using a CMOS double silicon gate technology and is offered in 40-pin DIP, 40-pin
SOP or 44-pin TSOP packages.
FEATURES
• 262,144 word x 16bit / 524,288 word x 8bit electrically switchable configuration
• Single +3V-3.3V power supply
• Access time
100ns access time (Vcc=+3V)
80ns access time (Vcc=+3.3V)
• Input / Output TTL compatible
• Three-state output
• Packages
40-pin plastic DIP (DIP40-P-600-2.54)
(Product name : MR27V402DRP)
40-pin plastic SOP (SOP40-P-525-1.27-K)
(Product name : MR27V402DMP)
44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) (Product name : MR27V402DTP)
November 1999
1/11
MR27V402D

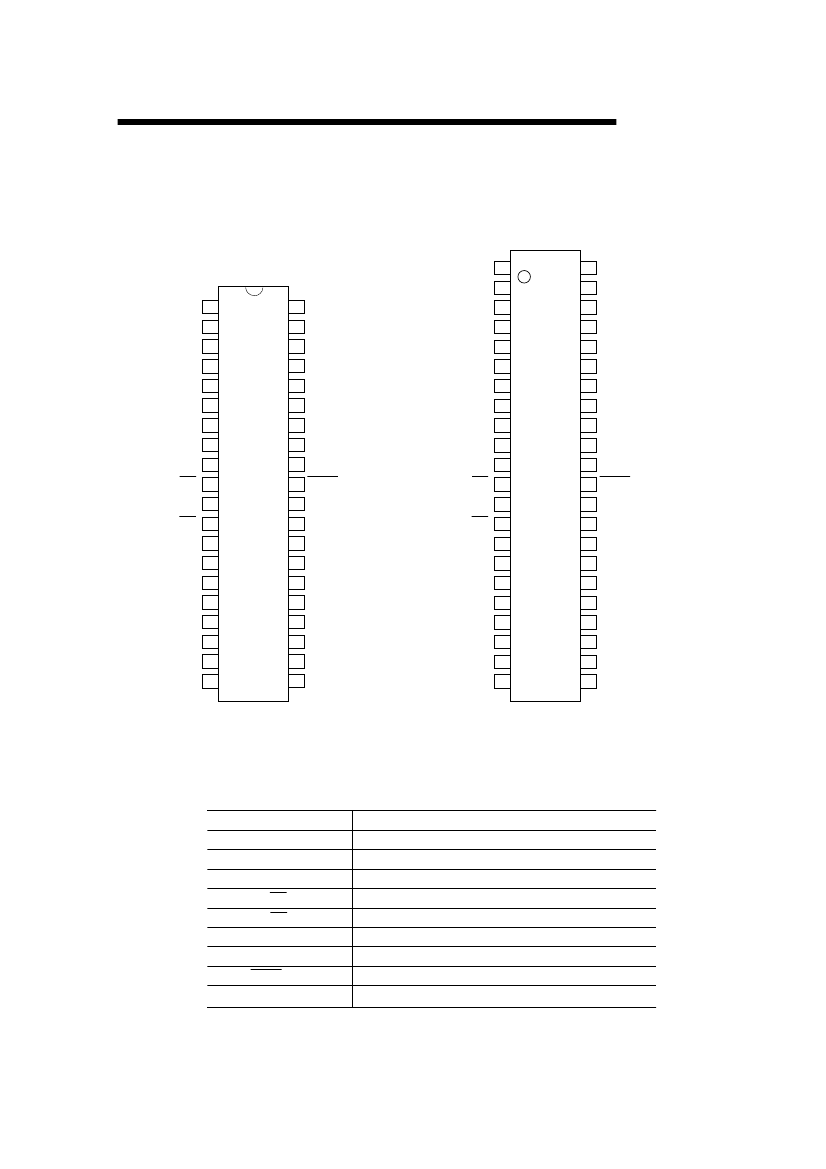

PIN CONFIGURATION (TOP VIEW)
NC 1
NC 2
A17 1
A7 2
A6 3
A5 4
A4 5
A3 6
A2 7
A1 8
A0 9
CE 10
V
SS
11
OE 12
D0 13
D8 14
D1 15
D9 16
D2 17
D10 18
D3 19
D11 20
40 A8
39 A9
38 A10
37 A11
36 A12
35 A13
34 A14
33 A15
32 A16
31 BYTE/Vpp
30 V
SS
29 D15/A-1
28 D7
27 D14
26 D6
25 D13
24 D5
23 D12
22 D4
21 V
CC
A17 3
A7 4
A6 5
A5 6
A4 7
A3 8
A2 9
A1 10
A0 11
CE 12
V
SS
13
OE 14
D0 15
D8 16
D1 17
D9 18
D2 19
D10 20
D3 21
D11 22
44 NC
43 NC
42 A8
41 A9
40 A10
39 A11
38 A12
37 A13
36 A14
35 A15
34 A16
33 BYTE/Vpp
32 V
SS
31 D15/A-1
30 D7
29 D14
28 D6
27 D13
26 D5
25 D12
24 D4
23 V
CC
40-pin DIP , SOP
44-pin TSOP (II)
PIN NAMES
D15/A-1
A0-A17
D0-D14
CE
OE
V
CC
V
SS
BYTE/V
PP
NC
Address input
Data output
Chip enable
Output enable
FUNCTIONS
Data output / Address input
Power supply voltage
GND
Mode switch / Program power supply voltage
Non connection
2/11
MR27V402D

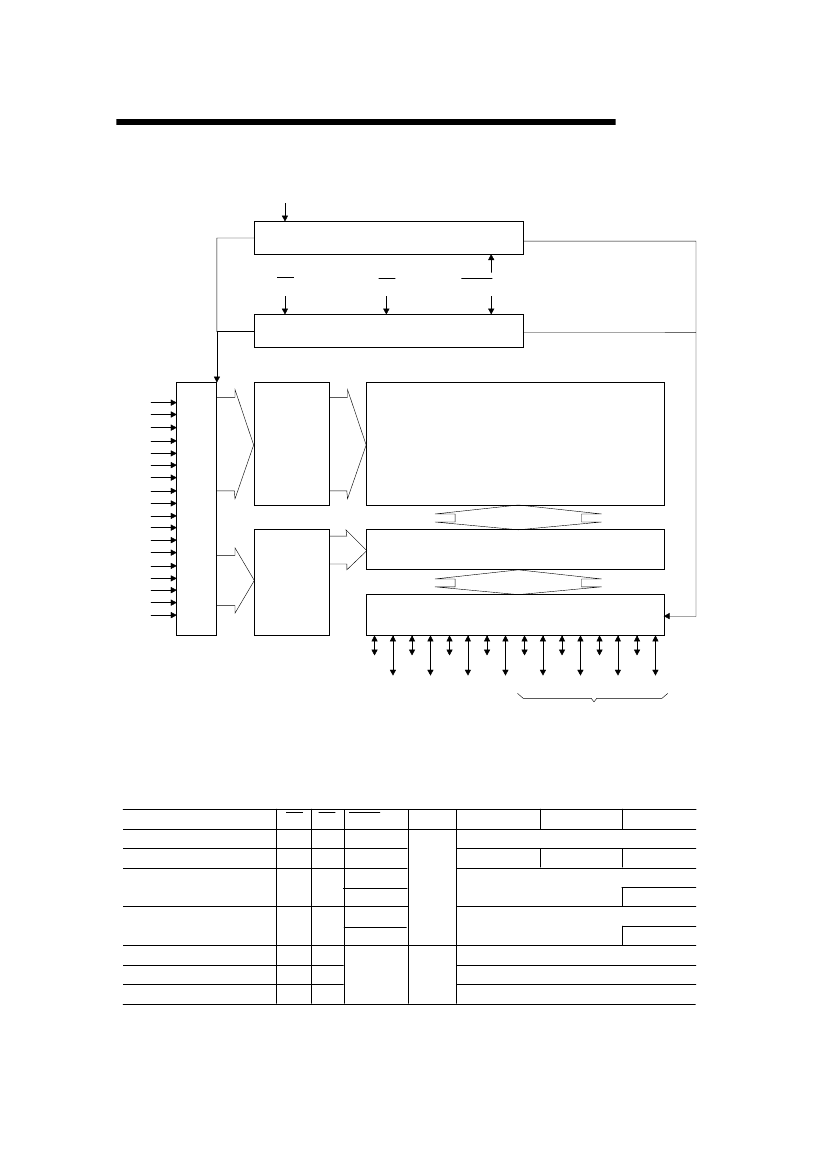

BLOCK DIAGRAM
A-1
X8/X16 Switch
CE
OE
BYTE/V
PP
PGM
CE
OE
Column Decoder
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
Row Decoder
Memory Matrix
Address Buffer
262,144X16-Bit or 524,288X8-Bit
Multiplexer
Output Buffer
D0
D1
D2
D3
D4
D5
D6
D7
D8
D10
D9
D12
D14
D15
D11
D13
In 8-bit output mode, these pins are
three-stated and pin D15 functions
as the A-1 address pin.
FUNCTION TABLE
MODE
READ (16-Bit)
READ (8-Bit)
OUTPUT DISABLE
STAND-BY
PROGRAM
PROGRAM INHIBIT
PROGRAM VERIFY
*: Don't Care
CE
L
L
L
H
L
H
H
OE BYTE/V
PP
L
L
H
*
H
H
L
9.75V
4.0V
H
L
H
L
H
L
3.0V
to
3.3V
D
OUT
V
CC
D0 - D7
D8 - D14
D
OUT
Hi-Z
Hi-Z
*
Hi-Z
*
D
IN
Hi-Z
D
OUT
D15/A-1
L/H
3/11
MR27V402D
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating temperature under bias
Storage temperature
Input voltage
Output voltage
Power supply voltage
Program power supply voltage
Power dissipation per package
Symbol
Topr
T
stg
V
I
V
O
V
CC
V
PP
P
D
-
relative to V
SS
Condition
-
Value
0 to 70
-55 to 125
-0.5 to V
CC
+ 0.5
-0.5 to V
CC
+0.5
-0.5 to 5
-0.5 to 11.5
1.0
Unit
°C
°C
V
V
V
V
W
RECOMMENDED OPERATING CONDITIONS
(Ta=0 to 70
°C)
Parameter
V
CC
power supply voltage
V
PP
power supply voltage
Input "H" level
Input "L" level
Voltage is relative to Vss
* : Vcc+1.5V (Max.) when pulse width of overshoot is less than 10nS.
** : -1.5V (Min.) when pulse width of undershoot is less than 10nS.
Symbol
V
CC
V
PP
V
IH
V
IL
V
CC
=2.7V-3.6V
Condition
Min.
2.7
-0.5
2.2
-0.5**
Typ.
-
-
-
-
Max.
3.6
V
CC
+0.5
V
CC
+0.5*
0.6
Unit
V
V
V
V
