MR27V6452D
4,194,304-Word x 16-Bit or 8,388,608-Word x 8-Bit
8-Word x 16-Bit or 16-Word x 8-Bit Page Mode One Time PROM
DESCRIPTION
1A
The MR27V6452D is a 64Mbit electrically Programmable Read-Only Memory with page mode. Its
configuration can be electrically switched between 4,194,304 word x 16bit and 8,388,608 word x 8
bit. The MR27V6452D operates on a single +3.3V power supply and is TTL compatible. The MR27
V6452D provides Page mode which can greatly reduce the read access time. Since the MR27V6452
D operates asynchronously , external clocks are not required , making this device easy-to-use. The
MR27V6452D is suitable as large-capacity fixed memory for microcomputers and data terminals. It is
manufactured using a CMOS double silicon gate technology and is offered in 44-pin SOP package.
FEATURES
• 4,194,304 word x 16bit / 8,388,608 word x 8bit electrically switchable configuration
• Single +3.3V power supply
• Access time 120ns
Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Package
44-pin plastic SOP (SOP44-P-600-1.27-K) (Product name : MR27V6452DMA)
November 1999
1/10
MR27V6452D

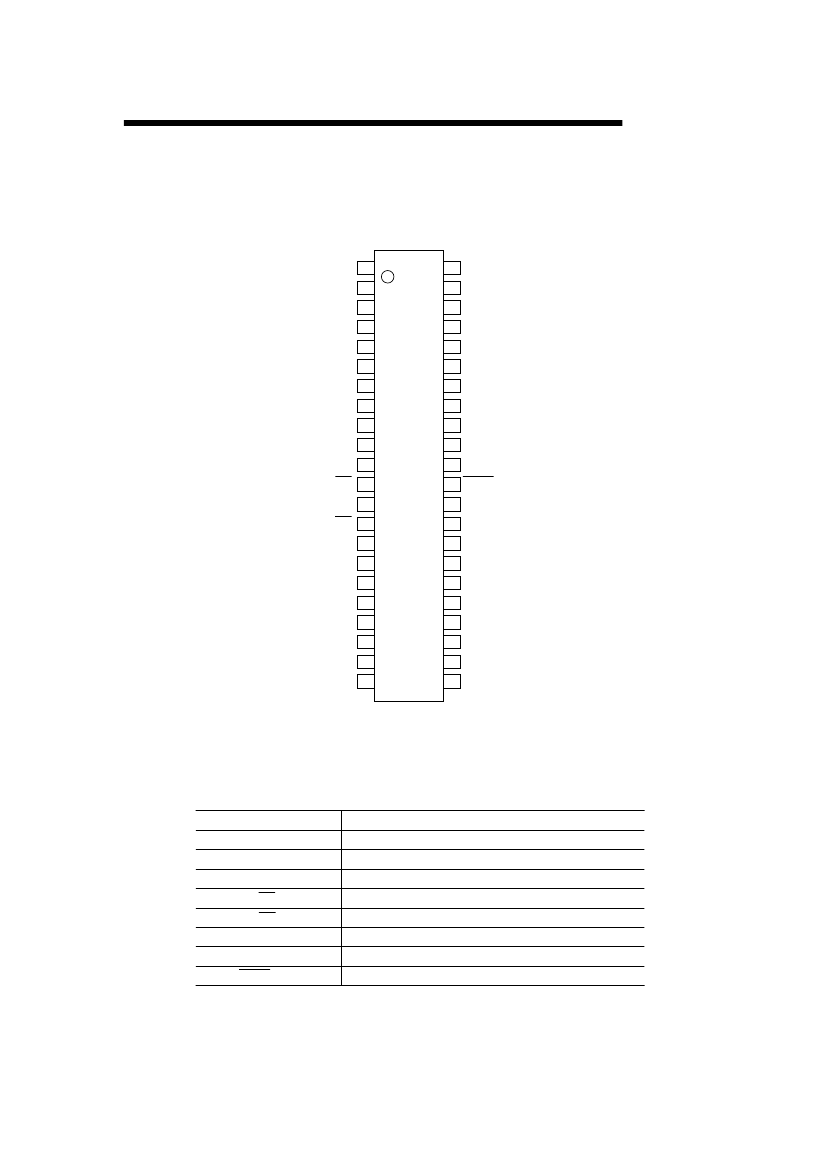

PIN CONFIGURATION (TOP VIEW)
A21 1
A18 2
A17 3
A7 4
A6 5
A5 6
A4 7
A3 8
A2 9
A1 10
A0 11
CE 12
V
SS
13
OE 14
D0 15
D8 16
D1 17
D9 18
D2 19
D10 20
D3 21
D11 22
44 A20
43 A19
42 A8
41 A9
40 A10
39 A11
38 A12
37 A13
36 A14
35 A15
34 A16
33 BYTE/Vpp
32 V
SS
31 D15/A-1
30 D7
29 D14
28 D6
27 D13
26 D5
25 D12
24 D4
23 V
CC
44-pin SOP
PIN NAMES
D15/A-1
A0-A21
D0-D14
CE
OE
V
CC
V
SS
BYTE/V
PP
Address input
Data output
Chip enable
Output enable
FUNCTIONS
Data output / Address input
Power supply voltage
GND
Mode switch / Program power supply voltage
2/10
MR27V6452D

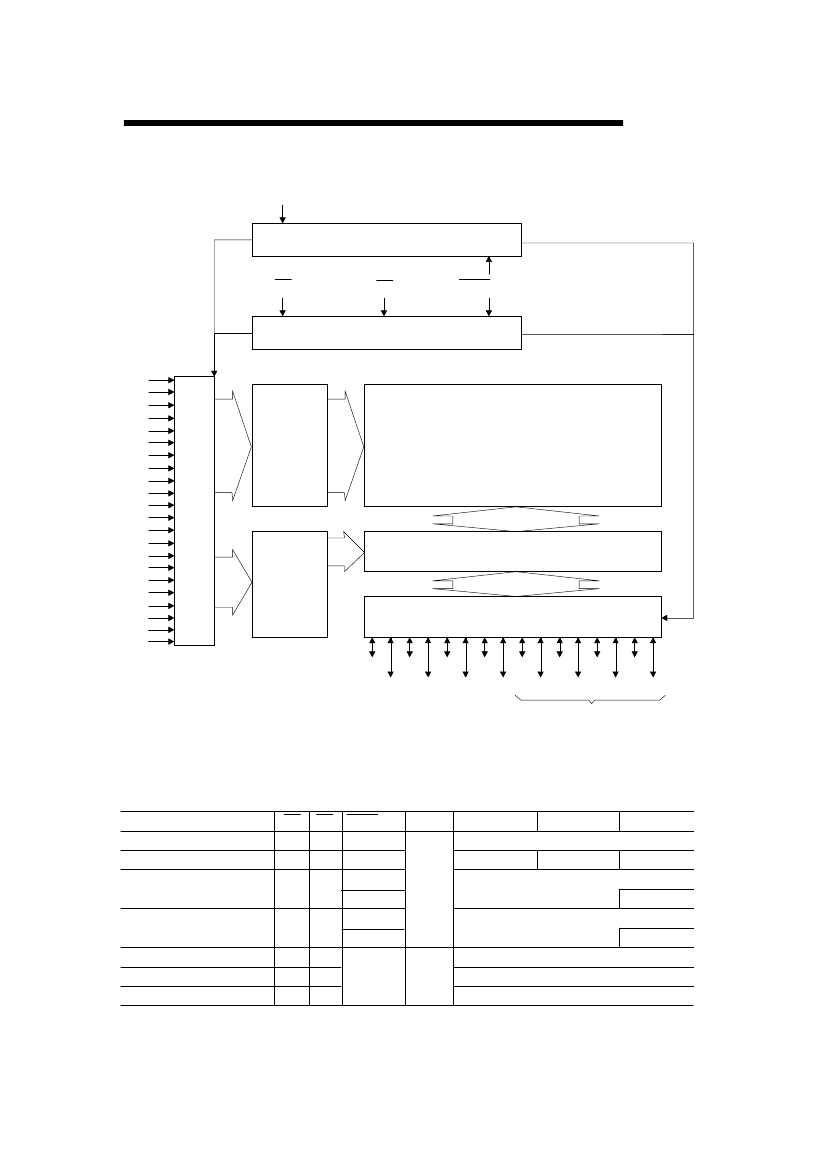

BLOCK DIAGRAM
A-1
X8/X16 Switch
CE
OE
BYTE/V
PP
PGM
CE
OE
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
Row Decoder
Memory Matrix
Address Buffer
4,194,304X16-Bit or 8,388,608X8-Bit
Column Decoder
Multiplexer & Page Data Latch
Output Buffer
D0
D1
D2
D3
D4
D5
D6
D7
D8
D10
D9
D12
D14
D15
D11
D13
In 8-bit output mode, these pins are
three-stated and pin D15 functions
as the A-1 address pin.
FUNCTION TABLE
MODE
READ (16-Bit)
READ (8-Bit)
OUTPUT DISABLE
STAND-BY
PROGRAM
PROGRAM INHIBIT
PROGRAM VERIFY
* : Don't Care
CE
L
L
L
H
L
H
H
OE BYTE/V
PP
L
L
H
*
H
H
L
9.75V
4.0V
H
L
H
L
H
L
3.3V
D
OUT
V
CC
D0 - D7
D8 - D14
D
OUT
Hi-Z
Hi-Z
*
Hi-Z
*
D
IN
Hi-Z
D
OUT
D15/A-1
L/H
3/10
MR27V6452D
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating temperature under bias
Storage temperature
Input voltage
Output voltage
Power supply voltage
Program power supply voltage
Power dissipation per package
Symbol
Topr
T
stg
V
I
V
O
V
CC
V
PP
P
D
-
relative to V
SS
Condition
-
Value
0 to 70
-55 to 125
-0.5 to V
CC
+ 0.5
-0.5 to V
CC
+ 0.5
-0.5 to 5
-0.5 to 11.5
1.0
Unit
°C
°C
V
V
V
V
W
RECOMMENDED OPERATING CONDITIONS FOR READ
(Ta=0 to 70
°C)
Parameter
V
CC
power supply voltage
V
PP
power supply voltage
Input "H" level
Input "L" level
Voltage is relative to Vss
* : Vcc+1.5V (Max.) when pulse width of overshoot is less than 10nS.
** : -1.5V (Min.) when pulse width of undershoot is less than 10nS.
Symbol
V
CC
V
PP
V
IH
V
IL
V
CC
=3.0V-3.6V
Condition
Min.
3.0
-0.5
2.2
-0.5**
Typ.
-
-
-
-
Max.
3.6
V
CC
+0.5
V
CC
+0.5*
0.6
Unit
V
V
V
V
4/10
