FEDR37V12841A-002-02
Issue Date: Oct. 01, 2008
MR37V12841A
128M
1–Bit Serial Production Programmed ROM (P2ROM)
GENERAL DESCRIPTION
The MR37V12841A is a 128Mbit Production Programmed Read-Only Memory, which is configured as
134,217,728word
1-bit. The MR37V12841A supports a simple read operation using a single 3.3V power supply
and a Serial Peripheral Interface (SPI) compatible serial bus.
The MR37V12841A have data programmed and have functions tested at LAPIS Semiconductor factory. (Using
the DC pins for the programming function is NOT allowed )
FEATURES
·Read Operation
- +3.3 V power supply
- 134,217,728
1-bit
- Access time: 33MHz serial clock (FAST-READ)
-
20MHz serial clock (READ)
- Read Identification Instruction
- Active read current: 30mA(FAST-READ)
-
20mA(READ)
- Standby current
: 50 µA
- Serial Clock Input and Data Input/Output
- Input Data Format :
1-byte Command code, 3-byte address, 1-byte dummy
(FAST-READ)
1-byte Command code, 3-byte address
(READ)
PACKAGES
· MR37V12841A-xxxMP
- 16-pin plastic SOP (P-SOP16-375-1.27-K)

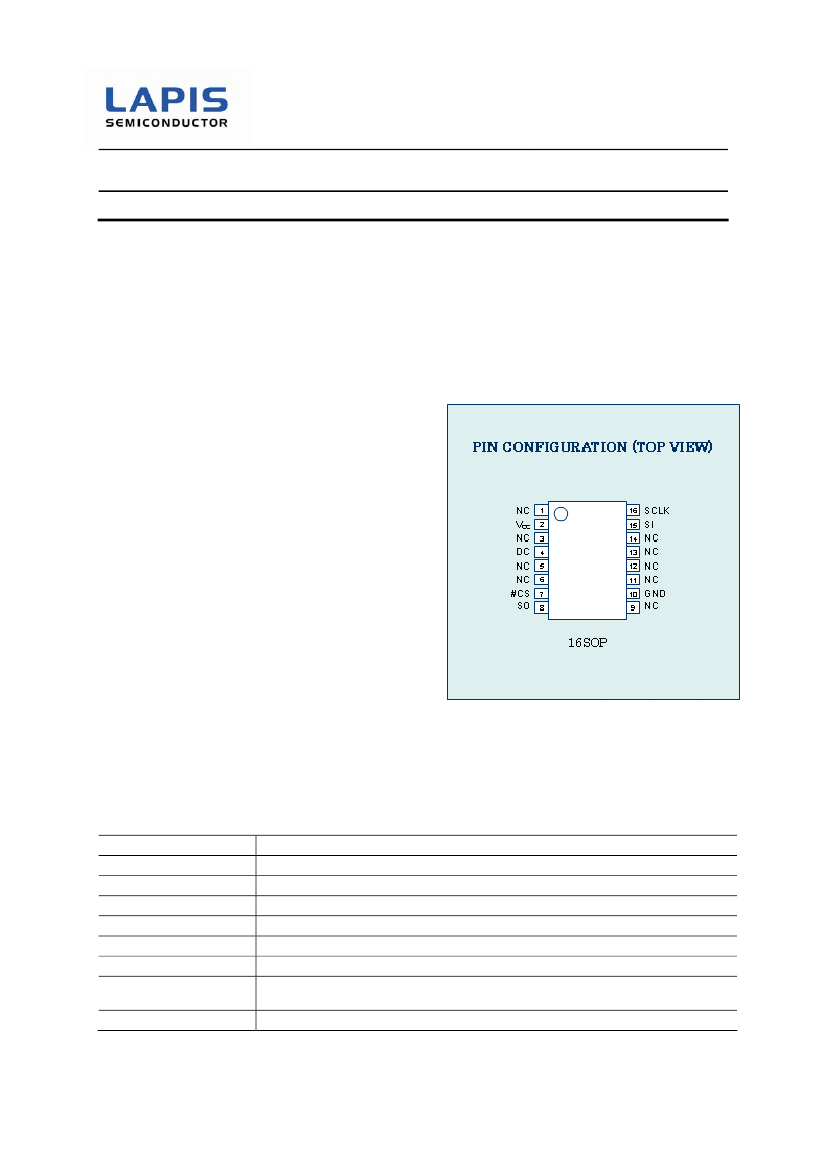

PIN DESCRIPTIONS
Pin name
#CS
SI
SO
SCLK
V
CC
GND
DC
NC
Chip Select
Serial Data Input
Serial Data Output
Clock Input
Power supply voltage
Ground
Don’t care ( 0v - Vcc )
<for reference> Program power supply voltage Vpp under Programming operation
Non connection
Functions under Read Operation
1/15
FEDR37V12841A-002-02
MR37V12841A / P2ROM
READ COMMAND DEFINITION
Command
1
2
3
st
Read Array (byte)
03[H]
AD1
AD2
AD3
N byte read out until #CS goes high
Note
1
2
2
2
3
nd
rd
th
4
Action
Note:
st
1. The 1 command 03[H] is a Read command
2. AD1 to AD3 are address input data
3. Data output
Details of command and address are shown as follows.
1-byte command code
READ
0
3-byte address
AD1:
AD2:
AD3:
A23
A15
A7
0
A22
A14
A6
0
A21
A13
A5
0
A20
A12
A4
0
A19
A11
A3
0
A18
A10
A2
1
A17
A9
A1
1
A16
A8
A0
2/15
FEDR37V12841A-002-02
MR37V12841A / P2ROM
FAST READ COMMAND DEFINITION
Command
1
2
3
st
Read Array (byte)
0B[H]
AD1
AD2
AD3
X
N byte read out until #CS goes high
Note
1
2
2
2
3
4
nd
rd
th
th
4
5
Action
Note:
1.
2.
3.
4.
The 1 command 0B[H] is a Read command
AD1 to AD3 are address input data
X is a dummy cycle
Data output
st
Details of command and address are shown as follows.
1-byte command code
FAST-READ
3-byte address
AD1:
AD2:
AD3:
0
A23
A15
A7
0
A22
A14
A6
0
A21
A13
A5
0
A20
A12
A4
1
A19
A11
A3
0
A18
A10
A2
1
A17
A9
A1
1
A16
A8
A0
3/15
FEDR37V12841A-002-02
MR37V12841A / P2ROM
READ IDENTIFICATION COMMAND DEFINITION
Command
1
st
Read Array (byte)
9F[H]
3 byte read out
Note
1
2
Action
Note:
st
1. The 1 command 9F[H] is a Read Identification command
2. Identification output
Details of command and address are shown as follows.
1-byte command code
RDID
1
0
0
1
1
1
1
1
IDENTIFICATION DEFINITION
Manufacturer Identification
AE[H]
Device Identification
Type
41[H]
Capacity
16[H]
4/15
FEDR37V12841A-002-02
MR37V12841A / P2ROM
DEVICE OPERATION
1. Command “03h” or “0Bh” makes this LSI become and keep active mode until next #CS High.
2. Incorrect command makes this LSI become and keep standby mode until next #CS Low. In standby mode, SO pin is
High-Z.
COMMAND DESCRIPTION
1. Read Array
This command consists of the 4-byte code. The 1
st
code is a command which decides if the device becomes standby
or active mode. The 1
st
code “03h” activates the device. The 2
nd
code to the 4
th
code are address inputs.
2. Fast Read Array
This command consists of the 5-byte code. The 1
st
code is a command which decides if the device becomes standby
or active mode. The 1
st
code “0Bh”activates the device. The 2
nd
code to the 4
th
code are address. The 5
th
code is a
dummy cycle.
3. Identification Read Array
This command consists of the 1-byte code. The 1
st
code is a command which decides if the device becomes standby
or active mode. The 1
st
code “9Fh”activates the device.
4. Standby
When #CS is high, the device is put in standby mode at the next rising edge of SCLK. Maximum standby current is
10uA. When the above-mentioned 1
st
code is incorrect command, the device is put in standby mode at the next rising
edge of SCLK.
DATA SEQUENCE
The data is serially sent out through SO pin, synchronized with the falling edge of SCLK. Meanwhile input data is also
serially read in through SI pin, synchronized with the rising edge of SCLK. The bit sequence for both input and output
data are bit7 (MSB) first, bit6, bit 5, …, and bit0(LSB).
ADDRESS SEQUENCE
The address assignment is described at the COMMAND DEFINITION on page 2, 3.
5/15
