MS87V1021

描述：
Speech Synthesizer With RCDG, 30s, PDSO32, 8 X 14 MM, 0.50 PITCH, PLASTIC, TSOP1-32
分类：
模拟混合信号IC    消费电路
文件大小：
512KB，共66页
制造商：
LAPIS Semiconductor Co Ltd
概述
Speech Synthesizer With RCDG, 30s, PDSO32, 8 X 14 MM, 0.50 PITCH, PLASTIC, TSOP1-32
器件参数
参数名称
属性值
厂商名称
LAPIS Semiconductor Co Ltd
零件包装代码
TSOP1
包装说明
TSSOP, TSSOP32,.56,20
针数
32
Reach Compliance Code
unknown
商用集成电路类型
SPEECH SYNTHESIZER WITH RCDG
JESD-30 代码
R-PDSO-G32
长度
12.4 mm
功能数量
1
端子数量
32
片上内存类型
MASK ROM; DYNAMIC RAM
最高工作温度
70 °C
最低工作温度
-20 °C
封装主体材料
PLASTIC/EPOXY
封装代码
TSSOP
封装等效代码
TSSOP32,.56,20
封装形状
RECTANGULAR
封装形式
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
电源
3/3.3 V
认证状态
Not Qualified
最长读取时间
30 s
座面最大高度
1.2 mm
最大压摆率
15 mA
最大供电电压 (Vsup)
3.6 V
最小供电电压 (Vsup)
2.7 V
表面贴装
YES
温度等级
OTHER
端子形式
GULL WING
端子节距
0.5 mm
端子位置
DUAL
宽度
8 mm
文档预览
Dear customers,
About the change in the name such as "Oki Electric Industry Co. Ltd." and
"OKI" in documents to OKI Semiconductor Co., Ltd.
The semiconductor business of Oki Electric Industry Co., Ltd. was succeeded to OKI
Semiconductor Co., Ltd. on October 1, 2008.
Therefore, please accept that although
the terms and marks of "Oki Electric Industry Co., Ltd.", “Oki Electric”, and "OKI"
remain in the documents, they all have been changed to "OKI Semiconductor Co., Ltd.".
It is a change of the company name, the company trademark, and the logo, etc. , and
NOT a content change in documents.
October 1, 2008
OKI Semiconductor Co., Ltd.
550-1 Higashiasakawa-cho, Hachioji-shi, Tokyo 193-8550, Japan
http://www.okisemi.com/en/
OKI Semiconductor
MS87V1021
Recording and Playback IC with Built-in 2-Mbit DRAM
PEDS87V1021-02
Issue Date: Feb. 20, 2002
Preliminary
GENERAL DESCRIPTION
The MS87V1021 is a single chip recording and playback IC that is controlled by the microcontroller in serial mode,
compresses voice with the 4-bit OKI ADPCM algorithm or 4-bit OKI ADPCM2 algorithm with high tone quality,
and has 2-Mbit DRAM in which recorded data is stored and 512-Kbit mask ROM in which fixed messages reside.
The MS87V1021 includes such features as Normal Recording and Playback, Delayed playback, Retroactive
playback, Fast forwarding, and Rewinding.
The internal memory in which voice data is stored allows a recording/playback system to be constructed merely by
externally connecting it to a microphone, a speaker driving amplifier, and a speaker.
FEATURES
•
Serial microcontroller interface (clock synchronized)
•
Built-in 512-Kbit mask ROM for fixed messages
ROM playback time:
Approx. 15 seconds (Fsam = 8.0 kHz)
Approx. 20 seconds (Fsam = 6.4 kHz)
Approx. 30 seconds (Fsam = 4.0 kHz)
•
Voice analyzing and synthesizing system:
4-bit OKI ADPCM or 4-bit OKI ADPCM2 algorithm
8-bit OKI non-linear PCM algorithm (for ROM playback only)
•
Sampling frequency (source oscillation frequency: 4.096 MHz):
4.0 kHz, 5.3 kHz, 6.4 kHz, 8.0 kHz, or 10.6 kHz
•
Recording time:
Approx. 60 seconds (Fsam = 8.0 kHz)
Approx. 80 seconds (Fsam = 6.4 kHz)
Approx. 120 seconds (Fsam = 4.0 kHz)
•
Built-in 14-bit A-to-D and D-to-A converters
•
Built-in LPF: Attenuation rate –40 dB/oct
•
Number of phrases
Variable message: 254 phrases max.
Fixed phrases: 256 phrases max.
•
Source oscillation frequency: 4.096 MHz
•
Supply voltage: 2.7 to 3.6 V
•
Operating current:
15 mA max. (source oscillation frequency: 4.096 MHz, Supply voltage: 3.6 V)
•
Operating temperature: –20 to +70°C
•
Package: 32-pin TSOP Type I
1/65
PEDS87V1021-02
OKI Semiconductor
MS87V1021
CONTENTS
GENERAL DESCRIPTION ................................................................................................................................ 1
FEATURES.......................................................................................................................................................... 1
BLOCK DIAGRAM ............................................................................................................................................ 4
PIN CONFIGURATION (TOP VIEW) ............................................................................................................... 4
PIN DESCRIPTION............................................................................................................................................. 5
APPLICATION CIRCUIT EXAMPLE ............................................................................................................... 6
ABSOLUTE MAXIMUM RATINGS ................................................................................................................. 7
RECOMMENDED OPERATING CONDITIONS .............................................................................................. 7
ELECTRICAL CHARACTERISTICS ................................................................................................................ 7
DC Characteristics.............................................................................................................................................. 7
AC Characteristics.............................................................................................................................................. 8
1. Microcontroller interface mode. .................................................................................................................. 8
2. BUSY time when a command is executed.................................................................................................. 8
3. Status flag time when a command is executed.. ........................................................................................ 10
Analog Characteristics...................................................................................................................................... 11
Analog Input Amplifier Circuit ........................................................................................................................ 11
LPF Characteristics...... .................................................................................................................................... 12
AD, DA Converter Full Scale........................................................................................................................... 12
NOTICE.......................................... ................................................................................................................... 13
Power Supply Connection...................... .......................................................................................................... 13
Supplementary Explanation on SG Pin ............................................................................................................ 14
TIMING DIAGRAMS ....................................................................................................................................... 15
Serial microcontroller interface mode .............................................................................................................. 15
Ready for recording with Rec command .......................................................................................................... 17
Ready for playback with Play command .......................................................................................................... 17
Starting recording with Start command............................................................................................................ 18
Starting playback with Start command............................................................................................................. 18
Ending recording/playback with Stop command.............................................................................................. 19
Pause of recording/playback with Pause command.......................................................................................... 19
Setting voice area block with Area1 commnand .............................................................................................. 20
Setting voice area with Area2 command .......................................................................................................... 20
Setting Delay value with Delay command ....................................................................................................... 21
Deleting phrase with Del command. ................................................................................................................ 21
Outputting STATUS with Status command ..................................................................................................... 22
Reading recording/playback start address with Adrrd command ..................................................................... 23
Writing recording/playback start address with Adrwr command ..................................................................... 23
Copying page data with Copy command.......................................................................................................... 24
Fast forward/rewind with Cue/rew command .................................................................................................. 24
Data transfer with Dtrw command ................................................................................................................... 25
Ending Dtrw mode with End command ........................................................................................................... 25
Continuous ROM playback with Rply command............................................................................................. 26
Reset function................................................................................................................................................... 27
Power down function........................................................................................................................................ 27
THE COMMANDS LIST .................................................................................................................................. 28
Delayed Play Mode .......................................................................................................................................... 28
Retroactive Play Mode (1/2) ............................................................................................................................ 29
Retroactive Play Mode (2/2) ............................................................................................................................ 30
Normal Mode(1/2)............................................................................................................................................ 31
Normal Mode(2/2)............................................................................................................................................ 32
Fast Forward/Rewind Playback (Valid only in Retroactive Play Mode and Normal Mode). .......................... 33
Other Commands (Common in All Modes) (1/2)............................................................................................. 34
Other Commands (Common in All Modes) (2/2)............................................................................................. 35
2/65
PEDS87V1021-02
OKI Semiconductor
MS87V1021
FLOWCHARTS................................................................................................................................................. 36
Delayed Play Mode .......................................................................................................................................... 36
Retroactive Play Mode (1)................................................................................................................................ 37
Retroactive Play Mode (2)................................................................................................................................ 38
Recording in Normal Mode.............................................................................................................................. 39
Playback in Normal Mode.............. ...................................... ............................................................................40
Dtrw Command ................................................................................................................................................ 41
STATUS TRANSITION DIAGRAM ................................................................................................................ 42
SUMMARY OF OPERATING MODES AND FUNCTIONS .......................................................................... 43
Delayed Play Mode ......... ..................................................................................................................................43
Retroactive Play Mode .................................................................................................................................... .44
Normal Mode ................................................................................................................................................... 45
Fast Forward/Rewind Function (Cue/Rew)..................................................................................................... .46
Copy Command................................................................................................................................................ 47
MEMORY ALLOCATION ............................................................................................................................... 49
Storing Sound Data to DRAM (In Pages) ........................................................................................................ 49
Storing Sound Data to DRAM (In Blocks)....................................................................................................... 50
Controlling Address in Retroactive Play Mode................................................................................................ 53
Controlling Address in Normal Mode .............................................................................................................. 54
Address Control Data for Each Phrase ............................................................................................................. 55
Addressing with the Adrrd and Adrwr Commands. ......................................................................................... 56
Memory Allocation of Mask ROM .................................................................................................................. 57
Memory Map.................... ................................................................................................................................ 58
Recording Time Length.................................................................................................................................... 59
Delay Time in Delayed Play Mode and Retroactive Play Mode ...................................................................... 61
PACKAGE DIMENSIONS................................................................................................................................ 62
3/65
PEDS87V1021-02
OKI Semiconductor
MS87V1021

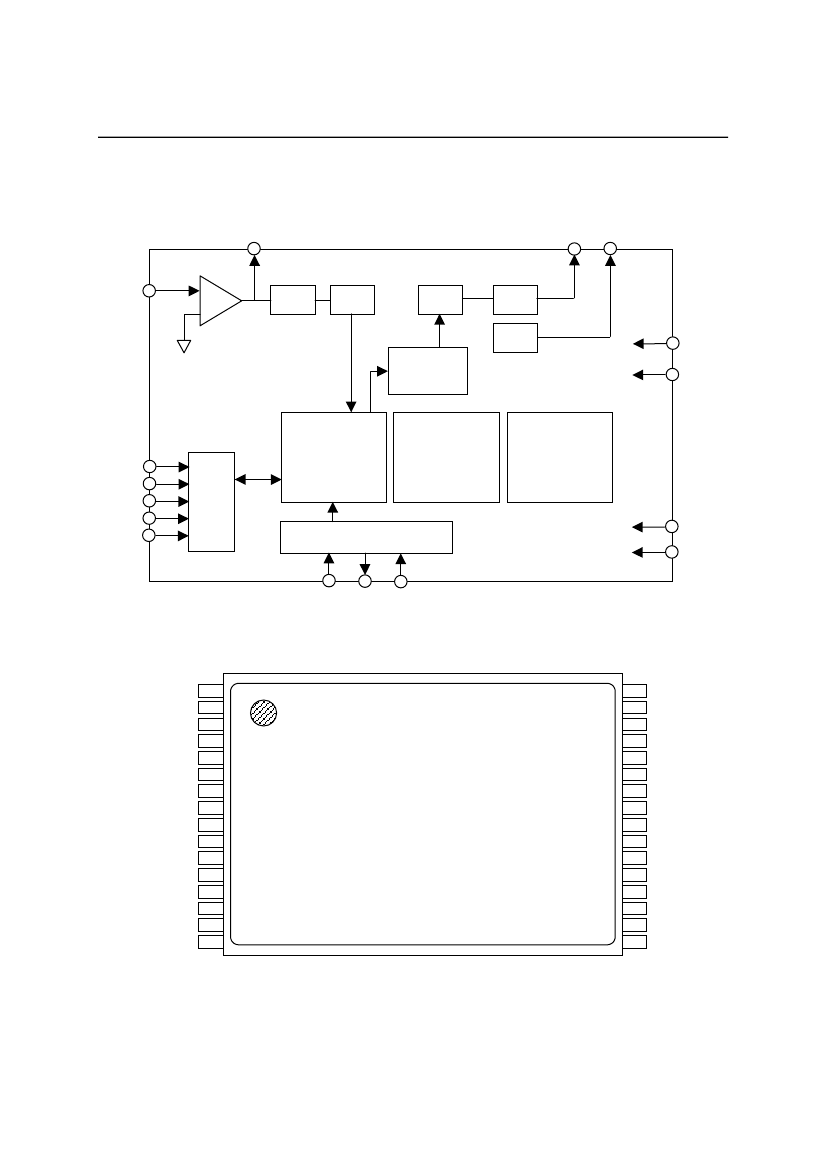

BLOCK DIAGRAM
LOUT
AOUT SG
LIN
LPF
ADC
DAC
LPF
SG
AIN
AMON
SG
Volume
Controller
ADPCM
CS
SI
SO
SK
BUSY
Analizer/
Synthesizer
MCU
I/F
Timing Controller
DARM
2M-Bit
MaskROM
512k-Bit
TEST
TEST
XT
XT RESET
PIN CONFIGURATION (TOP VIEW)
MGND
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
TEST
BUSY
SK
SO
SI
CS
MVDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
AGND
SG
LIN
LOUT
AMON
AOUT
AIN
AVDD
DGND
TEST
TEST
TEST
RESET
XT
XT
DVDD
32-pin plastic TSOP Type I (TSOP32-P814-K)
4/65
