MSM27C852CZ
524,288-Word x 16-Bit or 1,048,576-Word x 8-Bit
8-Word x 16-Bit or 16-Word x 8-Bit Page Mode One Time PROM
DESCRIPTION
1A
The MSM27C852CZ is a 8Mbit electrically Programmable Read-Only Memory with page mode. Its
configuration can be electrically switched between 524,288 word x 16bit and 1,048,576 word x 8bit.
The MSM27C852CZ operates on a single +5V power supply and is TTL compatible. The MSM27C8
52CZ provides Page mode which can greatly reduce the read access time. Since the MSM27C852
CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The
MSM27C852CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It
is manufactured using a CMOS double silicon gate technology and is offered in 42-pin DIP , 44-pin
SOP or 44-pin TSOP packages.
FEATURES
• 524,288 word x 16bit / 1,048,576 word x 8bit electrically switchable configuration
• Single +5V power supply
• Access time 100ns
Page mode access time 50ns
• Input / Output TTL compatible
• Three-state output
• Packages
42-pin plastic DIP (DIP42-P-600-2.54)
44-pin plastic SOP (SOP44-P-600-1.27-K)
44-pin plastic TSOP (TSOP II 44-P-400-0.80-K)
1
MSM27C852CZ

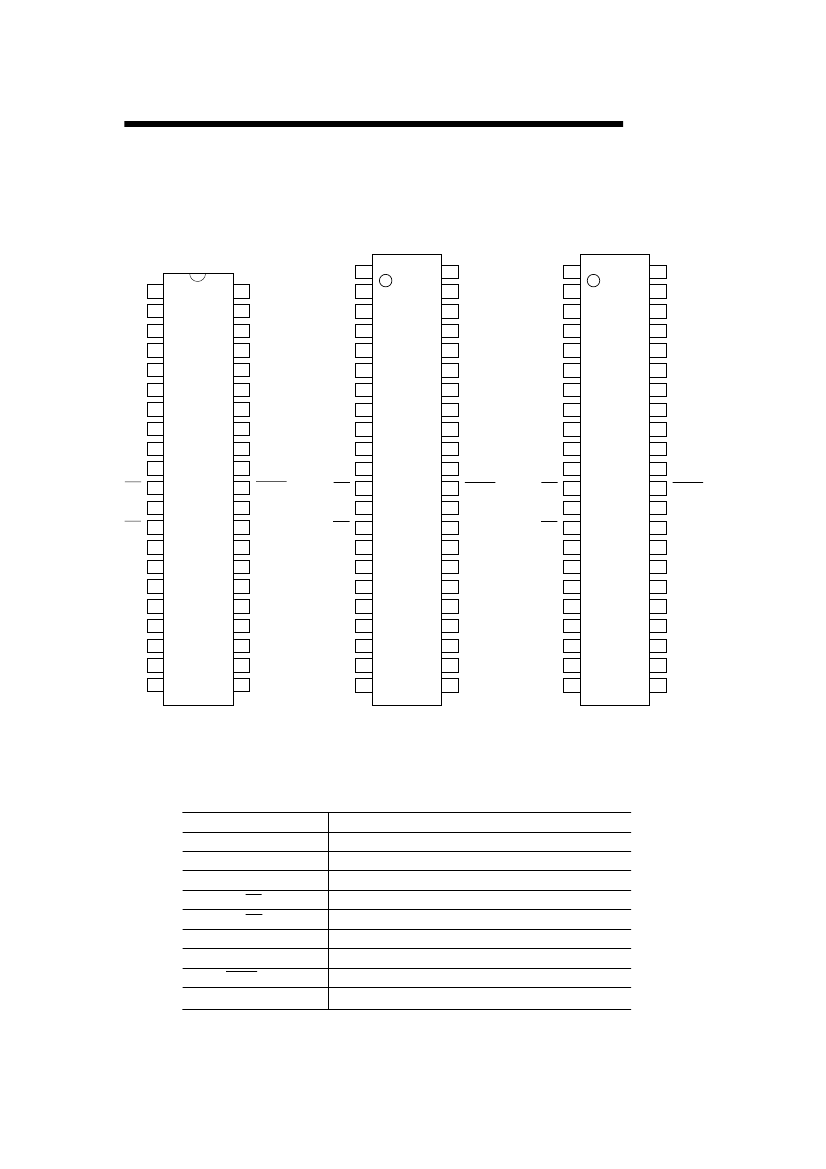

PIN CONFIGURATION (TOP VIEW)
A18 1
A17 2
A7 3
A6 4
A5 5
A4 6
A3 7
A2 8
A1 9
A0 10
CE 11
V
SS
12
OE 13
D0 14
D8 15
D1 16
D9 17
D2 18
D10 19
D3 20
D11 21
42 NC
41 A8
40 A9
39 A10
38 A11
37 A12
36 A13
35 A14
34 A15
33 A16
32 BYTE/Vpp
31 V
SS
30 D15/A-1
29 D7
28 D14
27 D6
26 D13
25 D5
24 D12
23 D4
22 V
CC
42-pin DIP
NC 1
A18 2
A17 3
A7 4
A6 5
A5 6
A4 7
A3 8
A2 9
A1 10
A0 11
CE 12
V
SS
13
OE 14
D0 15
D8 16
D1 17
D9 18
D2 19
D10 20
D3 21
D11 22
44 NC
43 NC
42 A8
41 A9
40 A10
39 A11
38 A12
37 A13
36 A14
35 A15
34 A16
33 BYTE/Vpp
32 V
SS
31 D15/A-1
30 D7
29 D14
28 D6
27 D13
26 D5
25 D12
24 D4
23 V
CC
44-pin SOP
NC 1
A18 2
A17 3
A7 4
A6 5
A5 6
A4 7
A3 8
A2 9
A1 10
A0 11
CE 12
V
SS
13
OE 14
D0 15
D8 16
D1 17
D9 18
D2 19
D10 20
D3 21
D11 22
44 NC
43 NC
42 A8
41 A9
40 A10
39 A11
38 A12
37 A13
36 A14
35 A15
34 A16
33 BYTE/Vpp
32 V
SS
31 D15/A-1
30 D7
29 D14
28 D6
27 D13
26 D5
25 D12
24 D4
23 V
CC
44-pin TSOP
PIN NAMES
D15/A-1
A0 - A18
D0 - D14
CE
OE
V
CC
V
SS
BYTE/V
PP
NC
Address input
Data output
Chip enable
Output enable
FUNCTIONS
Data output / Address input
Power supply voltage
GND
Mode switch / Program power supply voltage
Non connection
2
MSM27C852CZ

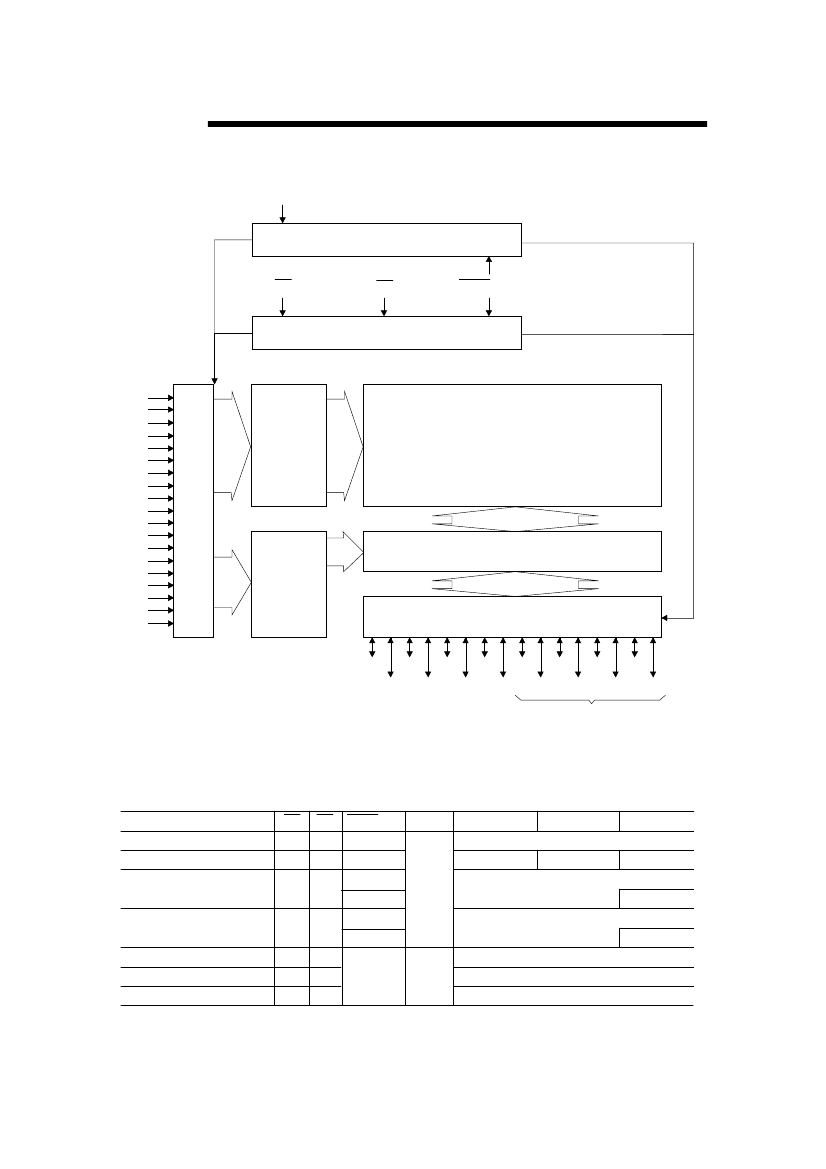

BLOCK DIAGRAM
A-1
X8/X16 Switch
CE
OE
BYTE/V
PP
CE
OE
PGM
Column Decoder
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
Row Decoder
Memory Matrix
Address Buffer
524,288X16-Bit or 1,048,576X8-Bit
Multiplexer & Page Data Latch
Output Buffer
D0
D1
D2
D3
D4
D5
D6
D7
D8
D10
D9
D12
D14
D15
D11
D13
In 8-bit output mode, these pins are
three-stated and pin D15 functions
as the A-1 address pin.
FUNCTION TABLE
MODE
READ (16-Bit)
READ (8-Bit)
OUTPUT DISABLE
STAND-BY
PROGRAM
PROGRAM INHIBIT
PROGRAM VERIFY
* : Don't Care
3
CE
L
L
L
H
L
H
H
OE BYTE/V
PP
L
L
H
*
H
H
L
11.5V
6.25V
H
L
H
L
H
L
4.5V
to
5.5V
D
OUT
V
CC
D0 - D7
D8 - D14
D
OUT
Hi-Z
Hi-Z
*
Hi-Z
*
D
IN
Hi-Z
D
OUT
D15/A-1
L/H
MSM27C852CZ
ABSOLUTE MAXIMUM RATINGS
Parameter
Operating temperature under bias
Storage temperature
Input voltage
Output voltage
Power supply voltage
Program power supply voltage
Power dissipation per package
Symbol
Topr
T
stg
V
I
V
O
V
CC
V
PP
P
D
-
relative to V
SS
Condition
-
Value
0 to 70
-55 to 125
-0.5 to V
CC
+ 0.5
-0.5 to V
CC
+ 0.5
-0.5 to 7
-0.5 to 12.5
1.0
Unit
°C
°C
V
V
V
V
W
RECOMMENDED OPERATING CONDITIONS FOR READ
(Ta=0 to 70
°C)
Parameter
V
CC
power supply voltage
V
PP
power supply voltage
Input "H" level
Input "L" level
Voltage is relative to Vss
Symbol
V
CC
V
PP
V
IH
V
IL
V
CC
=4.5V - 5.5V
Condition
Min.
4.5
-0.5
2.2
-0.5
Typ.
-
-
-
-
Max.
5.5
V
CC
+0.5
V
CC
+0.5
0.8
Unit
V
V
V
V
4
