¡ Semiconductor
MSM514256C/CL
¡ Semiconductor
This version: Jan. 1998
MSM514256C/CL
Previous version: May 1997
262,144-Word
¥
4-Bit DYNAMIC RAM : FAST PAGE MODE TYPE
DESCRIPTION
The MSM514256C/CL is a 262,144-word
¥
4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS
technology. The MSM514256C/CL achieves high integration, high-speed operation, and low-power
consumption because Oki manufactures the device in a quadruple-layer polysilicon/single-layer
metal CMOS process. The MSM514256C/CL is available in a 20-pin plastic DIP, 26/20-pin plastic
SOJ, or 20-pin plastic ZIP. The MSM514256CL (the low-power version) is specially designed for
lower-power applications.
FEATURES
• 262,144-word
¥
4-bit configuration
• Single 5 V power supply,
±10%
tolerance
• Input
: TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 512 cycles/8 ms, 512 cycles/64 ms (L-version)
• Fast page mode, read modify write capability
•
CAS
before
RAS
refresh, hidden refresh,
RAS-only
refresh capability
• Package options:
20-pin 300 mil plastic DIP
(DIP20-P-300-2.54-W1) (Product : MSM514256C/CL-xxRS)
26/20-pin 300 mil plastic SOJ (SOJ26/20-P-300-1.27) (Product : MSM514256C/CL-xxJS)
20-pin 400 mil plastic ZIP
(ZIP20-P-400-1.27)
(Product : MSM514256C/CL-xxZS)
xx indicates speed rank.
PRODUCT FAMILY
Family
MSM514256C/CL-45
MSM514256C/CL-50
MSM514256C/CL-60
MSM514256C/CL-70
Access Time (Max.)
t
RAC
t
AA
t
CAC
t
OEA
45 ns 24 ns 14 ns 14 ns
50 ns 26 ns 14 ns 14 ns
60 ns 30 ns 15 ns 15 ns
70 ns 35 ns 20 ns 20 ns
Cycle Time
Power Dissipation
(Min.)
Operating (Max.) Standby (Max.)
90 ns
100 ns
120 ns
130 ns
468 mW
446 mW
385 mW
330 mW
5.5 mW/
1.1 mW (L-version)
1/17
¡ Semiconductor

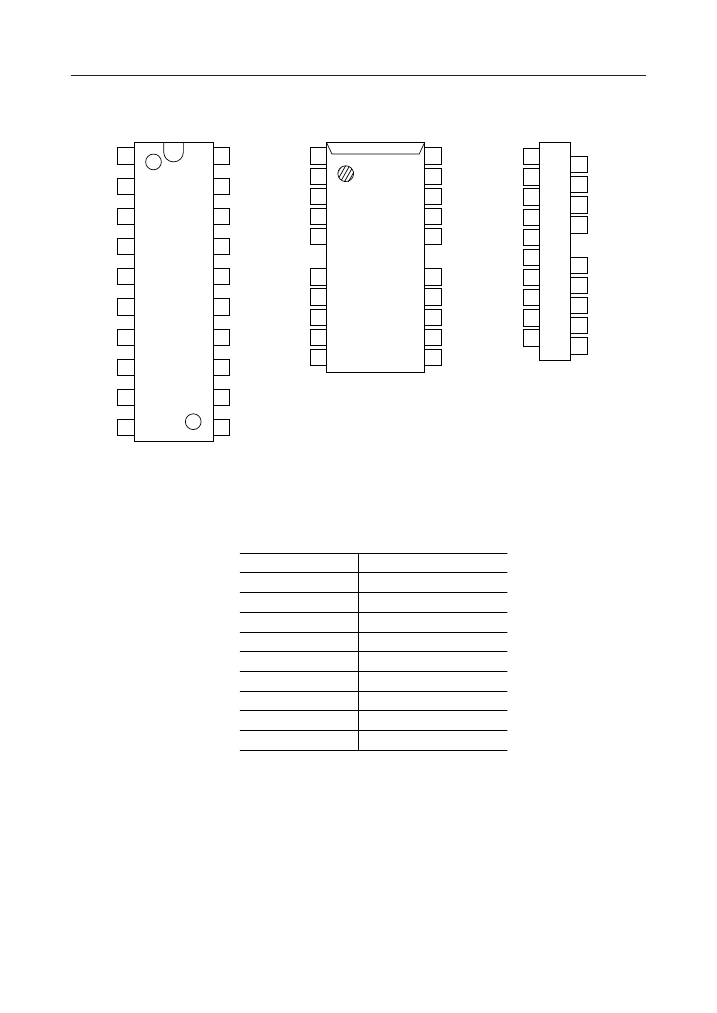

PIN CONFIGURATION (TOP VIEW)
DQ1 1
DQ2 2
WE
3
RAS
4
NC 5
A0 6
A1 7
A2 8
A3 9
V
CC
10
20 V
SS
DQ1 1
19 DQ4
18 DQ3
17
CAS
16
OE
15 A8
14 A7
13 A6
12 A5
11 A4
DQ2 2
WE
3
NC 5
A0 9
RAS
4
A1 10
A2 11
A3 12
V
CC
13
Pin Name
A0 - A8
RAS
CAS
DQ1 - DQ4
OE
WE
V
CC
V
SS
NC
MSM514256C/CL
26 V
SS
25 DQ4
24 DQ3
23
CAS
22
OE
18 A8
17 A7
16 A6
15 A5
14 A4
OE
1
DQ3 3
V
SS
5
DQ2 7
RAS
9
A0 11
A2 13
V
CC
15
A5 17
A7 19
2
CAS
4 DQ4
6 DQ1
8
WE
NO LEAD
12 A1
14 A3
16 A4
18 A6
20 A8
20-Pin Plastic ZIP
26/20-Pin Plastic SOJ
20-Pin Plastic DIP
Function
Address Input
Row Address Strobe
Column Address Strobe
Data Input/Data Output
Output Enable
Write Enable
Power Supply (5 V)
Ground (0 V)
No Connection
2/17
¡ Semiconductor
MSM514256C/CL

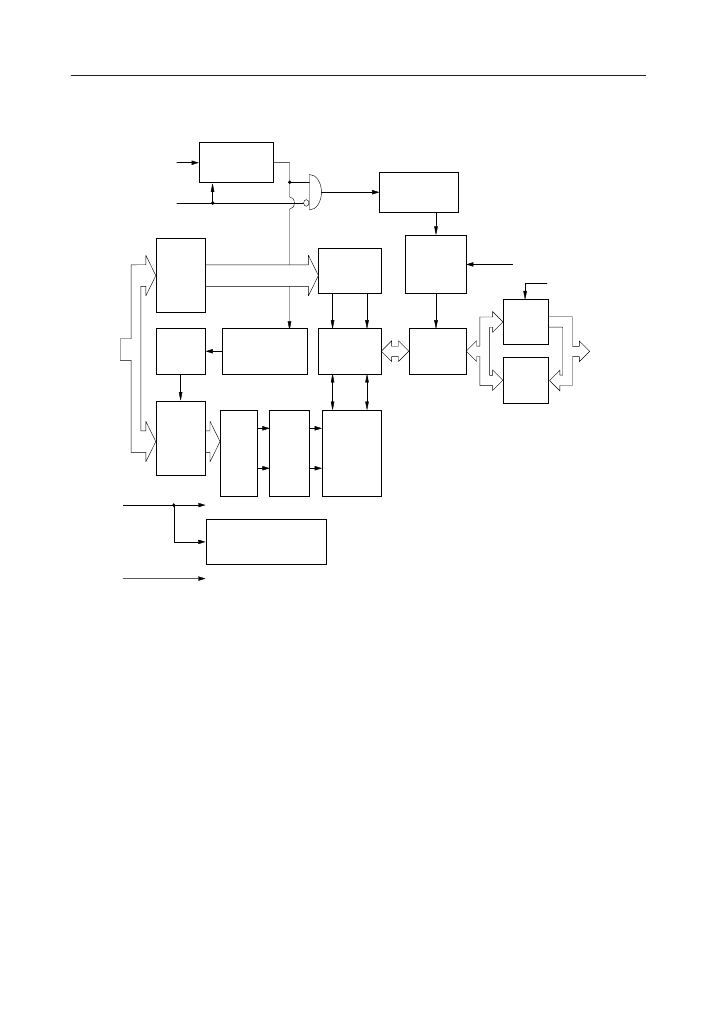

BLOCK DIAGRAM
RAS
CAS
Timing
Generator
Timing
Generator
9
Column
Address
Buffers
Internal
Address
Counter
9
Column
Decoders
Write
Clock
Generator
WE
OE
4
Output
Buffers
Input
Buffers
4
4
A0 - A8
Refresh
Control Clock
Sense
Amplifiers
4
I/O
Selector
4
4
4
DQ1 - DQ4
9
Row
Address
Buffers
9
Row
De-
coders
Word
Drivers
Memory
Cells
V
CC
On Chip
V
BB
Generator
V
SS
3/17
¡ Semiconductor
MSM514256C/CL
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Parameter
Voltage on Any Pin Relative to V
SS
Short Circuit Output Current
Power Dissipation
Operating Temperature
Storage Temperature
Symbol
V
T
I
OS
P
D
*
T
opr
T
stg
Rating
–1.0 to 7.0
50
1
0 to 70
–55 to 150
Unit
V
mA
W
°C
°C
*: Ta = 25°C
Recommended Operating Conditions
Parameter
Power Supply Voltage
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min.
4.5
0
2.4
–1.0
Typ.
5.0
0
—
—
Max.
5.5
0
6.5
0.8
(Ta = 0°C to 70°C)
Unit
V
V
V
V
Capacitance
Parameter
Input Capacitance (A0 - A8)
Input Capacitance (RAS,
CAS, WE, OE)
Output Capacitance (DQ1 - DQ4)
Symbol
C
IN1
C
IN2
C
I/O
Typ.
—
—
—
(V
CC
= 5 V ±10%, Ta = 25°C, f = 1 MHz)
Max.
5
5
6
Unit
pF
pF
pF
4/17
