OKI Semiconductor
MSM51V16165F
DESCRIPTION
FEDD51V16165F-03
Issue Date: Aug. 16, 2002
1,048,576-Word
×
16-Bit DYNAMIC RAM : FAST PAGE MODE TYPE WITH EDO
The MSM51V16165F is a 1,048,576-word
×
16-bit dynamic RAM fabricated in Oki’s silicon-gate
CMOS technology. The MSM51V16165F achieves high integration, high-speed operation, and
low-power consumption because Oki manufactures the device in a quadruple-layer
polysilicon/double-layer metal CMOS process. The MSM51V16165F is available in a 50/44-pin plastic
TSOP.
FEATURES
· 1,048,576-word
×
16-bit configuration
·
Single 3.3V power supply,
±0.3V
tolerance
·
Input : LVTTL compatible, low input capacitance
·
Output : LVTTL compatible, 3-state
·
Refresh : 4096 cycles/64ms
·
Fast page mode with EDO, read modify write capability
·
CAS
before
RAS
refresh, hidden refresh,
RAS-only
refresh capability
· Packages
50/44-pin 400mil plastic TSOP
(
TSOPII50/44-P-400-0.80-K
)
(Product : MSM51V16165F-xxTS-K)
xx indicates speed rank.
PRODUCT FAMILY
Access Time (Max.)
Family
t
RAC
50ns
60ns
70ns
t
AA
25ns
30ns
35ns
t
CAC
13ns
15ns
20ns
t
OEA
13ns
15ns
20ns
Cycle Time
(Min.)
84ns
104ns
124ns
Power Dissipation
Operating
(Max.)
270mW
252mW
234mW
Standby
(Max.)
1.8mW
MSM51V16165F
1/16
FEDD51V16165F-03
1
Semiconductor
MSM51V16165F

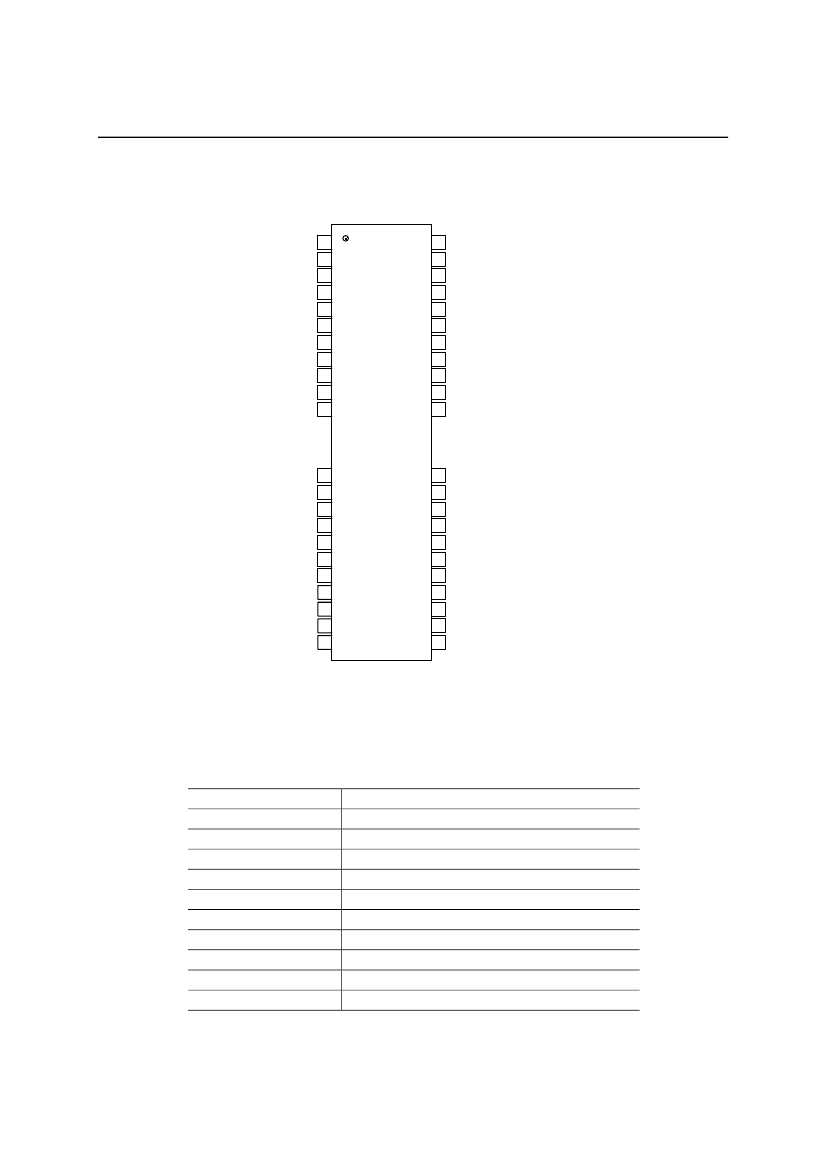

PIN CONFIGURATION (TOP VIEW)
V
C
1
DQ1
2
DQ2
3
DQ3 4
DQ4 5
V
C
6
DQ5 7
DQ6 8
DQ7 9
DQ8
10
NC
11
50
V
S
49
DQ16
48
DQ15
47
DQ14
46
DQ13
45
V
S
44
DQ12
43
DQ11
42
DQ10
41
DQ9
40
NC
NC
15
NC
16
WE
17
RAS
18
A11R
19
A10R
20
A0
21
A1
22
A2
23
A3
24
V
C
25
36
NC
35
LCAS
34
UCAS
33
OE
32
A9R
31
A8R
30
A7
29
A6
28
A5
27
A4
26
V
S
50/44-Pin Plastic TSOP
(K Type)
Pin Name
A0–A7, A8R–A11R
RAS
LCAS
UCAS
DQ1–DQ16
OE
WE
V
CC
V
SS
NC
Function
Address Input
Row Address Strobe
Lower Byte Column Address Strobe
Upper Byte Column Address Strobe
Data Input/Data Output
Output Enable
Write Enable
Power Supply (3.3V)
Ground (0V)
No Connection
Note : The same power supply voltage must be provided to every V
CC
pin, and the same GND voltage level must
be provided to every V
SS
pin.
2/16
FEDD51V16165F-03
1
Semiconductor
MSM51V16165F

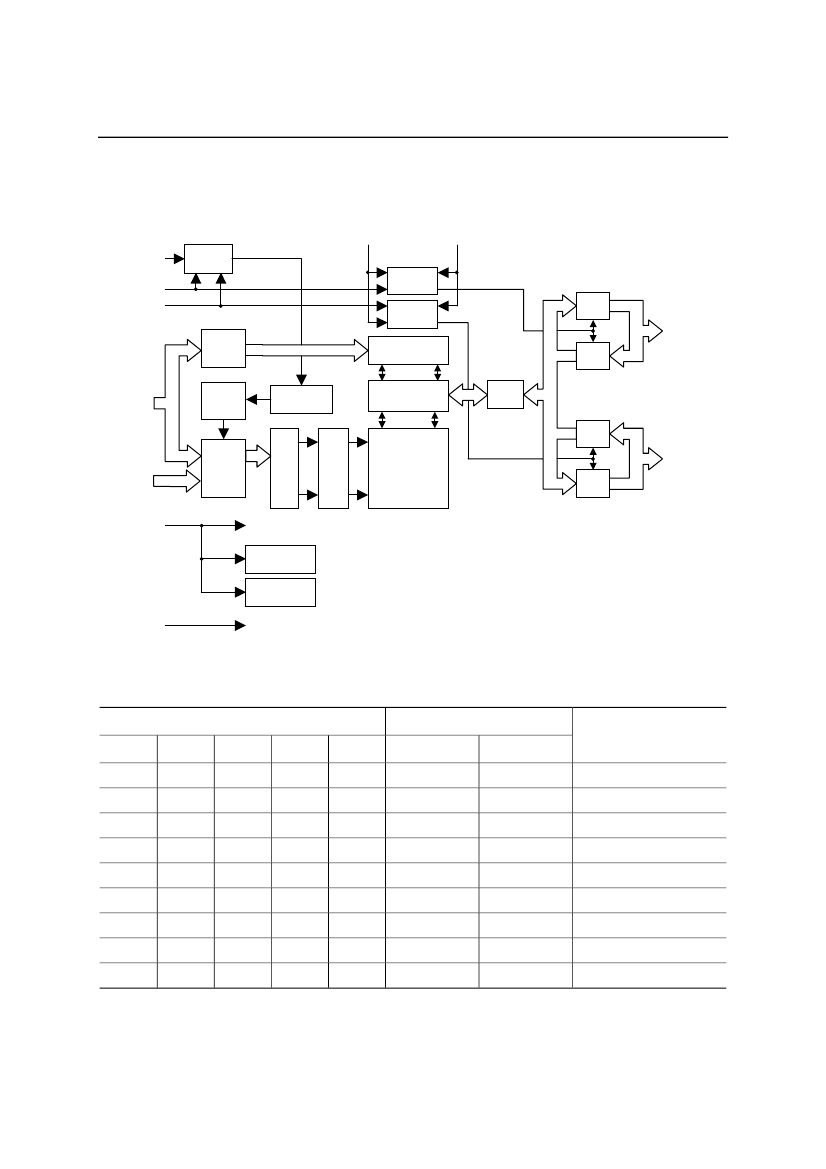

BLOCK DIAGRAM
WE
RAS
LCAS
UCAS
Column
Address
Buffers
Internal
Address
Counter
Timing
Generator
I/O
Controller
I/O
Controller
8
8
Column Decoders
8
Output
Buffers
8
DQ1-DQ8
8
I/O
Selector
Input
Buffers
8
OE
A0-A7
Refresh
Control Clock
Sense Amplifiers
16
16
Input
Buffers
8
12
A8R-A11R
4
Row
Address
Buffers
12
Row
Deco-
ders
Word
Drivers
Memory
Cells
8
8
DQ9-DQ16
Output
Buffers
8
V
CC
On Chip
V
BB
Generator
On Chip
IV
CC
Generator
V
SS
FUNCTION TABLE
Input Pin
RAS
H
L
L
L
L
L
L
L
L
LCAS
*
H
L
H
L
L
H
L
L
UCAS
*
H
H
L
L
H
L
L
L
WE
*
*
H
H
H
L
L
L
H
OE
*
*
L
L
L
H
H
H
H
DQ Pin
Function Mode
DQ1-DQ8
High-Z
High-Z
D
OUT
High-Z
D
OUT
D
IN
Don’t Care
D
IN
High-Z
DQ9-DQ16
High-Z
High-Z
High-Z
D
OUT
D
OUT
Don’t Care
D
IN
D
IN
High-Z
Standby
Refresh
Lower Byte Read
Upper Byte Read
Word Read
Lower Byte Write
Upper Byte Write
Word Write
* : “H” or “L”
3/16
FEDD51V16165F-03
1
Semiconductor
MSM51V16165F
ELECTRICAL CHARACTERISTICS
ABSOLUTE MAXIMUM RATINGS
Parameter
Voltage on Any Pin Relative to V
SS
Voltage V
CC
Supply relative to V
SS
Short Circuit Output Current
Power Dissipation
Operating Temperature
Storage Temperature
Symbol
V
IN
, V
OUT
V
CC
I
OS
P
D*
T
opr
T
stg
Value
–0.5 to V
CC
+0.5
–0.5 to 4.6
50
1
0 to 70
–55 to 150
Unit
V
V
mA
W
°C
°C
*: Ta = 25°C
RECOMMENDED OPERATING CONDITIONS
(Ta = 0 to 70°C)
Parameter
Power Supply Voltage
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min.
3.0
0
2.0
−
0.3
*2
Typ.
3.3
0
Max.
3.6
0
V
CC
+ 0.3
*1
0.8
Unit
V
V
V
V
Notes: *1. The input voltage is V
CC
+ 1.0V when the pulse width is less than 20ns (the pulse width is with respect
to the point at which V
CC
is applied).
*2. The input voltage is V
SS
−
1.0V when the pulse width is less than 20ns (the pulse width respect to the
point at which V
SS
is applied).
PIN CAPACITANCE
(Vcc = 3.3V
±
0.3V, Ta = 25°C, f = 1 MHz)
Parameter
Input Capacitance (A0 – A7, A8R – A11R)
Input Capacitance
(RAS,
LCAS, UCAS, WE, OE)
Output Capacitance (DQ1 - DQ16)
Symbol
C
IN1
C
IN2
C
I/O
Min.
—
—
—
Max.
5
7
7
Unit
pF
pF
pF
4/16
