MSM51V16400D/DSL
¡ Semiconductor
This version: Mar. 1998
MSM51V16400D/DSL
Pr
el
im
in
ar
y
4,194,304-Word
¥
4-Bit DYNAMIC RAM : FAST PAGE MODE TYPE
DESCRIPTION
The MSM51V16400D/DSL is a 4,194,304-word
¥
4-bit dynamic RAM fabricated in Oki's silicon-gate
CMOS technology. The MSM51V16400D/DSL achieves high integration, high-speed operation,
and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/
double-layer metal CMOS process. The MSM51V16400D/DSL is available in a 26/24-pin plastic SOJ
or 26/24-pin plastic TSOP. The MSM51V16400DSL (the self-refresh version) is specially designed
for lower-power applications.
FEATURES
• 4,194,304-word
¥
4-bit configuration
• Single 3.3 V power supply,
±0.3
V tolerance
• Input
: LVTTL compatible, low input capacitance
• Output : LVTTL compatible, 3-state
• Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
• Fast page mode, read modify write capability
•
CAS
before
RAS
refresh, hidden refresh,
RAS-only
refresh capability
•
CAS
before
RAS
self-refresh capability (SL version)
• Multi-bit test mode capability
• Package options:
26/24-pin 300 mil plastic SOJ
(SOJ26/24-P-300-1.27)
(Product : MSM51V16400D/DSL-xxSJ)
26/24-pin 300 mil plastic TSOP
(TSOPII26/24-P-300-1.27-K) (Product : MSM51V16400D/DSL-xxTS-K)
xx indicates speed rank.
PRODUCT FAMILY
Family
Access Time (Max.)
t
RAC
t
AA
t
CAC
t
OEA
Cycle Time
Power Dissipation
(Min.)
Operating (Max.) Standby (Max.)
90 ns
110 ns
130 ns
270 mW
252 mW
234 mW
1.8 mW/
0.72 mW (SL version)
MSM51V16400D/DSL-50 50 ns 25 ns 13 ns 13 ns
MSM51V16400D/DSL-60 60 ns 30 ns 15 ns 15 ns
MSM51V16400D/DSL-70 70 ns 35 ns 20 ns 20 ns
1/17
¡ Semiconductor

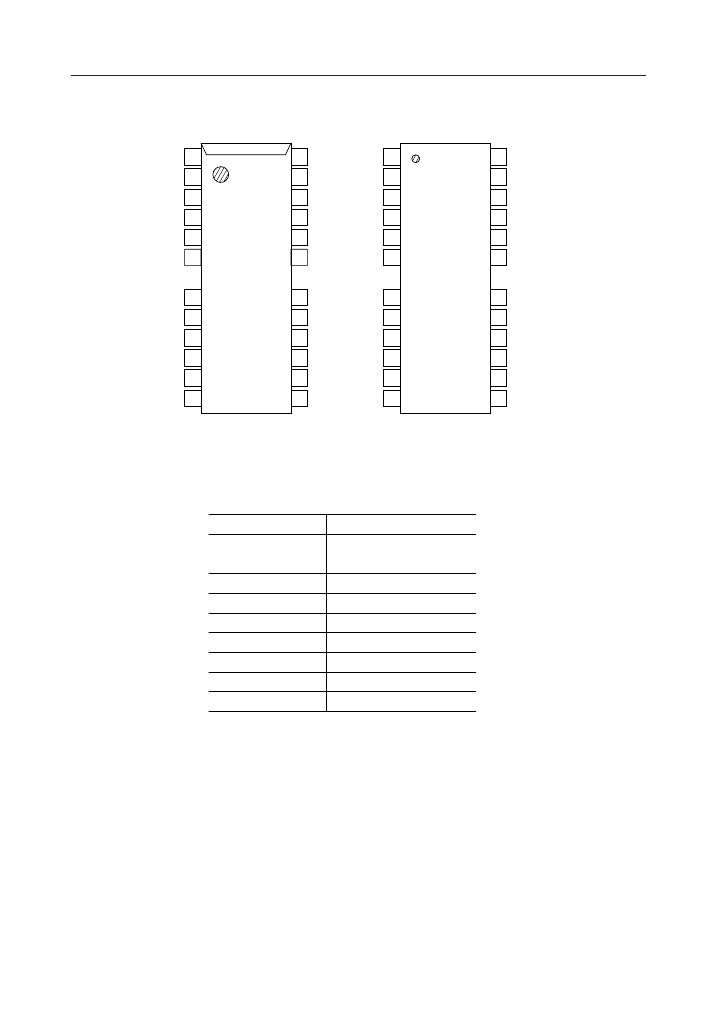

PIN CONFIGURATION (TOP VIEW)
V
CC
1
,
26 V
SS
V
CC
1
26 V
SS
DQ1 2
WE
4
25 DQ4
23
CAS
22
OE
DQ1 2
DQ2 3
WE
4
25 DQ4
DQ2 3
24 DQ3
24 DQ3
23
CAS
22
OE
21 A9
19 A8
RAS
5
RAS
5
A11R 6
A10R 8
A0 9
21 A9
19 A8
A11R 6
A10R 8
A0 9
18 A7
17 A6
16 A5
15 A4
14 V
SS
18 A7
17 A6
16 A5
15 A4
14 V
SS
A1 10
A2 11
A3 12
V
CC
13
28-Pin Plastic SOJ
A1 10
A2 11
A3 12
V
CC
13
28-Pin Plastic TSOP
(K Type)
Pin Name
A0 - A9,
A9R - A11R
RAS
CAS
DQ1 - DQ4
OE
WE
V
CC
V
SS
Function
Address Input
Row Address Strobe
Column Address Strobe
Data Input/Data Output
Output Enable
Write Enable
Power Supply (3.3 V)
Ground (0 V)
MSM51V16400D/DSL
Note :
The same power supply voltage must be provided to every V
CC
pin, and the same GND
voltage level must be provided to every V
SS
pin.
2/17
¡ Semiconductor
MSM51V16400D/DSL

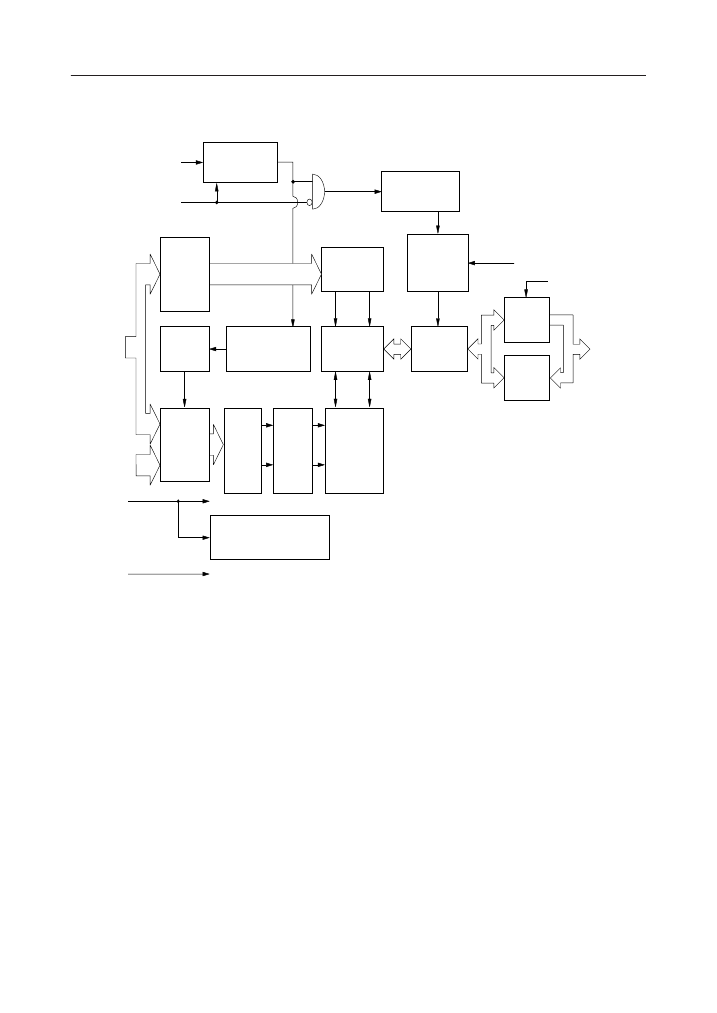

BLOCK DIAGRAM
RAS
CAS
Timing
Generator
Timing
Generator
10
Column
Address
Buffers
Internal
Address
Counter
10
Column
Decoders
Write
Clock
Generator
WE
OE
4
Output
Buffers
4
4
A0 - A9
Refresh
Control Clock
Sense
Amplifiers
4
I/O
Selector
4
4
DQ1 - DQ4
Input
Buffers
4
10
A10R, A11R
V
CC
2
Row
Address
Buffers
12
Row
De-
coders
Word
Drivers
Memory
Cells
On Chip
V
BB
Generator
V
SS
3/17
¡ Semiconductor
MSM51V16400D/DSL
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Parameter
Voltage on Any Pin Relative to V
SS
Short Circuit Output Current
Power Dissipation
Operating Temperature
Storage Temperature
Symbol
V
T
I
OS
P
D
*
T
opr
T
stg
Rating
–0.5 to 4.6
50
1
0 to 70
–55 to 150
Unit
V
mA
W
°C
°C
*: Ta = 25°C
Recommended Operating Conditions
Parameter
Power Supply Voltage
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min.
3.0
0
2.0
–0.3
Typ.
3.3
0
—
—
Max.
3.6
0
V
CC
+ 0.3
0.8
(Ta = 0°C to 70°C)
Unit
V
V
V
V
Capacitance
Parameter
Input Capacitance
(A0 - A9, A10R, A11R)
Input Capacitance (RAS,
CAS, WE, OE)
Output Capacitance (DQ1 - DQ4)
Symbol
C
IN1
C
IN2
C
I/O
Typ.
—
—
—
(V
CC
= 3.3 V ±0.3 V, Ta = 25°C, f = 1 MHz)
Max.
5
7
7
Unit
pF
pF
pF
4/17
