MSM65524A/65P524
¡ Semiconductor
8-Bit Microcontroller with A/D Converter
This version: Jan. 1998
MSM65524A/65P524
Previous version: Nov. 1996
GENERAL DESCRIPTION
The MSM65524A is a high-performance 8-bit microcontroller that employs OKI original nX-8/
50 CPU core. With a minimum instruction execution time of 400 ns (10MHz clock), the
MSM65524A is capable of high-speed processing, and includes 16K bytes of program memory,
384 bytes of data memory, timers, serial ports, an A/D converter and PWMs on chip. Also
available are the MSM65P524, which replaces the on-chip program memory with one-time
PROM, and the MSM65X524A, which uses the external program memory.
FEATURES
• Operating range
Operating frequency
Operating voltage
Operating temperature
• Memory space
Internal program memory
Internal data memory
• Minimum instruction execution time
• Powerful instruction set
: 0 to 10MHz (V
DD
=4.5 to 5.5V)
0 to 5MHz (V
DD
=2.7 to 5.5V)
: 2.7 to 5.5V
: –40 to +85°C
: 64K bytes
: 16K bytes
: 384 bytes
: 400ns @ 10 MHz
: 83 basic instructions
8/16-bit operation instructions
Bit manipulation instructions
Compound function instructions
: 8
¥
8
Æ
16
16
÷
8
Æ
16 ... 8
: 5 ports
¥
8 bits
1 port
¥
4 bits
: 1 port
¥
8 bits
: 8-bit auto-reload timer
¥
2
16-bit auto-reload timer
¥
1
Watchdog timer
¥
1
: Time base counter
¥
1
16-bit free-running counter
¥
1
: 1 channel
: 2 channels
: Shift register
¥
1
Serial port with baud rate generator
(UART/Synchronous)
¥
1
: 8 bits
¥
8 channels
: 8 bits
¥
2 channels
PWM with auto-reload timer for period
setting
1/27
• Abundant addressing modes
• Multiplication/division operation functions
• I/O port
Input-output port
Input port
• Timers
• Counters
• Capture input
• Compare output
• Serial ports
• A/D converter
• PWM
¡ Semiconductor
MSM65524A/65P524
• External interrupts
: 3
• Interrupt sources
: 19
• Package options
64-pin plastic shrink DIP (SDIP64-P-750-1.78) : (Product name: MSM65524A-¥¥¥SS,
MSM65P524-¥¥¥SS)
64-pin plastic QFP (QFP64-P-1414-0.80-BK) : (Product name: MSM65524A-¥¥¥GS-BK,
MSM65P524-¥¥¥GS-BK)
68-pin plastic QFJ (PLCC) (QFJ68-P-S950-1.27): (Product name: MSM65524A-¥¥¥JS,
MSM65P524-¥¥¥JS)
¥¥¥
indicates the code number.
2/27

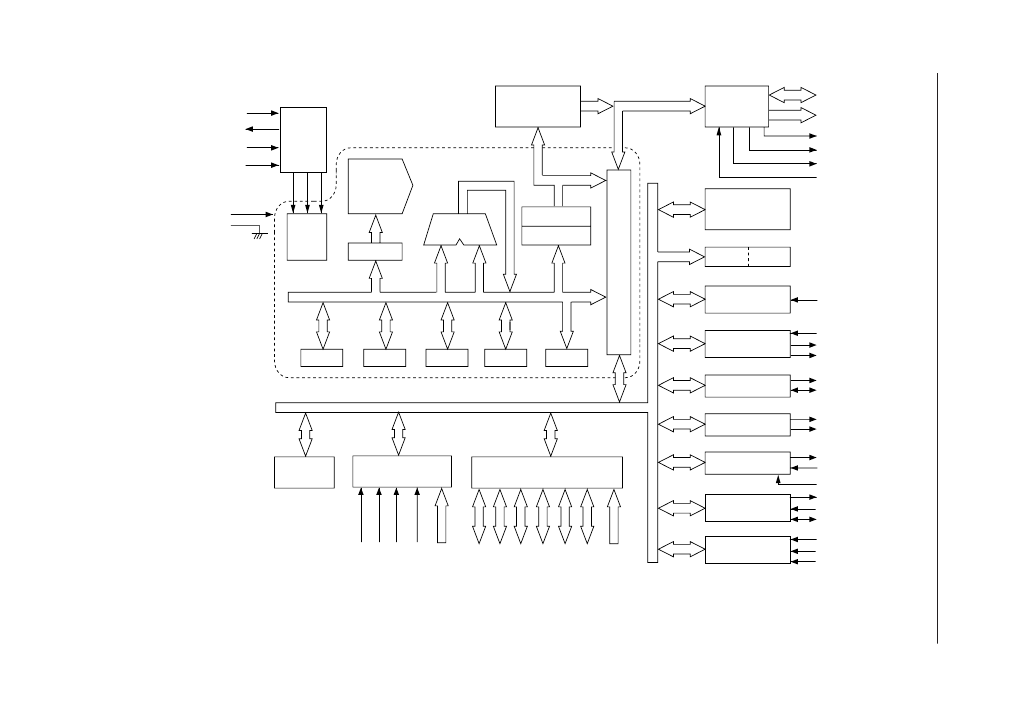

BLOCK DIAGRAM
¡ Semiconductor
OSC 0
OSC 1
RESET
HSTOP*
ROM
(16K bytes)
OSC
CONT.
CPU CORE
INST.
DEC.
8
EXT.MEM.
CONT.
8
8
AD0-7*
A8-15*
RD
WR*
ALE
EA
8
ALU
GMAR
PC
BUS
CONT.
V
DD
GND
RAM
(384 bytes)
TBC
WDT
T2CK*
CAP*
CMP0*
CMP1*
TXD*
RXD*
PWM0*
PWM1*
T1OUT*
T0CK*
GATE*
SFTO*
SFTI*
SFTCK*
INT0*
INT1*
INT2*
T/C
IR
8
16-bit TIMER
AR
BR
PSW
SP
LMAR
16-bit FRC
CAP¥1, CMP¥2
SIO
8-bit PWM¥2
MUL/DIV
8-bit A/D C
¥
8ch
I/O PORT
8-bit TIMER¥4**
8-bit SHIFT-REG.
MSM65524A/65P524
P0 P1 P2 P3 P4 P5 P6
INTERRUPT CONT.
V
RL
V
RH
AV
DD
AGND
AI0*- AI7*
* Secondary functions of ports
** One timer doubles as the SIO baud rate
generator, another doubles as a PWM
clock source.
3/27
¡ Semiconductor
MSM65524A/65P524
PIN CONFIGURATION (TOP VIEW)
P5.0/PWM0
P5.1/PWM1
P5.2
P5.3
P4.0
P4.1
P4.2
P4.3
P4.4
P4.5
P4.6
P4.7
P3.0/T2CK
P3.1/CAP
P3.2/CMP0
P3.3/CMP1
P3.4/INT2
P3.5/SFTO
P3.6/SFTI
P3.7/SFTCK
RESET
P2.0/RXD
P2.1/TXD
P2.2/INT0
P2.3/INT1/GATE
P2.4/T0CK
P2.5/HSTOP
P2.6/WR
P2.7/T1OUT
OSC1
OSC0
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
V
DD
AV
DD
V
RH
V
RL
P6.7/AI7
P6.6/AI6
P6.5/AI5
P6.4/AI4
P6.3/AI3
P6.2/AI2
P6.1/AI1
P6.0/AI0
AGND
P0.0/AD0
P0.1/AD1
P0.2/AD2
P0.3/AD3
P0.4/AD4
P0.5/AD5
P0.6/AD6
P0.7/AD7
EA
ALE
RD
P1.7/A15
P1.6/A14
P1.5/A13
P1.4/A12
P1.3/A11
P1.2/A10
P1.1/A9
P1.0/A8

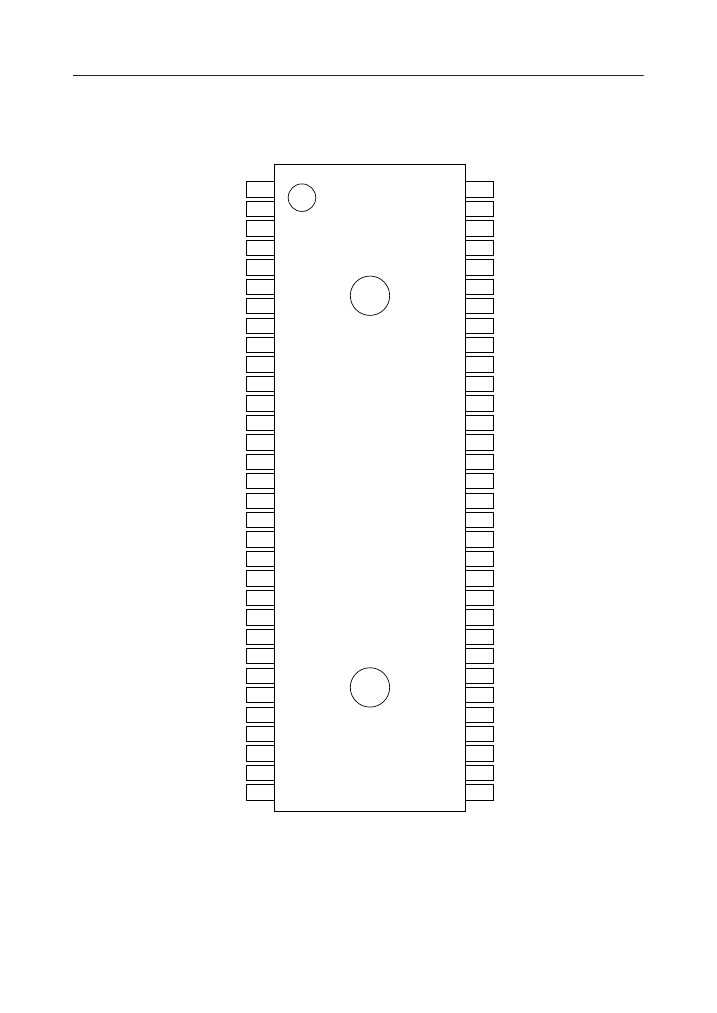

64-Pin Plastic Shrink DIP
4/27
¡ Semiconductor
MSM65524A/65P524
PIN CONFIGURATION (TOP VIEW) (Continued)
58 P5.1/PWM1
57 P5.0/PWM0
52 P6.7/AI7
54 P6.6/AI6
50 P6.5/AI5
P4.4
P4.5
P4.6
P4.7
P3.0/T2CK
P3.1/CAP
P3.2/CMP0
P3.3/CMP1
P3.4/INT2
1
2
3
4
5
6
7
8
9
P3.5/SFTO 10
P3.6/SFTI 11
P3.7/SFTCK 12
RESET
13
P2.0/RXD 14
P2.1/TXD 15
P2.2/INT0 16
P2.3/INT1/GATE 17
P2.4/T0CK 18
P2.5/HSTOP 19
P2.6/WR 20
P2.7/T1OUT 21
OSC1
22
OSC0 23
GND 24
P1.0/A8 25
P1.1/A9 26
P1.2/A10 27
P1.3/A11 28
P1.4/A12 29
P1.5/A13 30
P1.6/A14 31

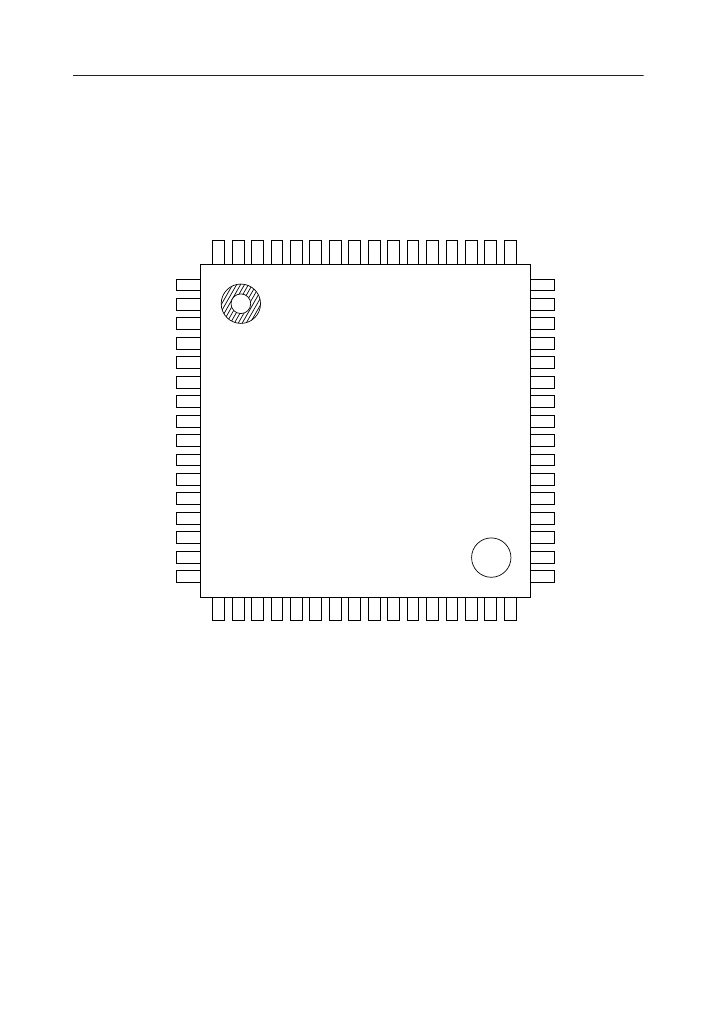

64-Pin Plastic QFP
P1.7/A15 32
63 P4.2
62 P4.1
61 P4.0
60 P5.3
59 P5.2
49 P6.4/AI4
48 P6.3/AI3
47 P6.2/AI2
46 P6.1/AI1
45 P6.0/AI0
44 AGND
43 P0.0/AD0
42 P0.1/AD1
41 P0.2/AD2
40 P0.3/AD3
39 P0.4/AD4
38 P0.5/AD5
37 P0.6/AD6
36 P0.7/AD7
35
EA
34 ALE
33
RD
55 AV
DD
64 P4.3
56 V
DD
54 V
RH
53 V
RL
5/27
