¡ Semiconductor
MSM6636
¡ Semiconductor
MSM6636
SAE-J1850 Communication Protocol Conformity Transmission Controller for Automo-
tive LAN
GENERAL DESCRIPTION
The MSM6636 is a transmission controller for automotive LAN based on data communication
protocol SAE-J1850. This LSI can realize a data bus topology bus LAN system with a PWM bit
encoding method (41.6 K bps). In addition to a protocol control circuit, MSM6636 has an enclosed
quartz oscillation circuit, host CPU interface (clock synchronous serial / UART), a transmit/
receive buffer, and a bus receiver circuit that decreases the burden on the host CPU.
FEATURES
• Based on SAE-J1850 CLASS B DATA COMMUNICATION NETWORK INTERFACE (issued
August 12, 1991)
• CSMA/CD (Carrier-sense multiple access with collision detection)
• Internal transmit buffer (1 frame) and receive buffer (2 frames)
• Bit encoding: PWM (Pulse Width Modulation)
• Transmission Speed: 41.6K bps
• Multi-address setting with physical addressing: 1 type / functional addressing: 15 types
• Address filter function by multi-addressing (broadcasting possible)
• Automatic retransmission function by arbitration loss and non ACK
• 3 types of in-frame response support:
q
Single-byte response from a single recipient
w
Multi-byte response from a single recipient (with CRC code)
e
Single-byte response from multiple recipients (ID response as ACK)
• Error detection by cyclic redundancy check (CRC)
• Various communication error detections
• Dual-wire bus abnormality detection by internal bus receiver and fault tolerance function
• Host CPU interface is LSB first / serial, 4 modes supported
q
Clock synchronous serial (no parity)
Normal mode: 8-bit data
MPC Mode:
8-bit data + MPC bit (1: address / 0: data select bit)
w
UART (yes/no parity selectable)
Normal mode: 1 start bit + 8-bit data + (parity) + 1 stop bit
MPC mode:
1 start bit + 8-bit data + MPC bit + (parity) + 1 stop bit
• Sleep Function
Low current consumption mode by oscillation stop (IDS Max < 50µA)
SLEEP / WAKE UP control from host CPU, WAKE UP via LAN bus
• Available package 18pin DIP, 18 pin QFJ (PLCC) and 24pin SOP.
1
MSM6636
¡ Semiconductor

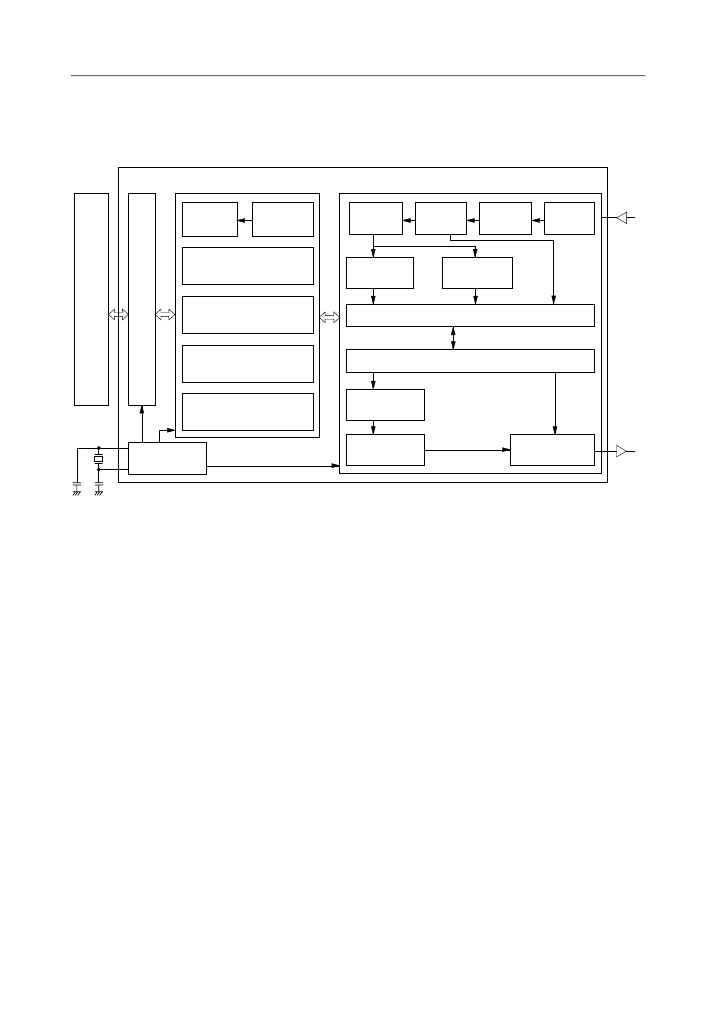

BLOCK DIAGRAM
Buffer Register
Receive
Register
Serial Interface
Receive
Buffer
S-P
Converter
CRC
Checker
LAN Controller
PWM
Decoder
Degital
Filter
Bus
Receiver
LAN
Bus
Input
Address Register
Address
Filter
Receive Controller
CPU
Status Register
Transmission Register
CRC
Generator
P-S
Converter
Transmission Controller
Response Register
x'tal
Clock
Generator
PWM
Encoder
LAN
Bus
Output
MSM6636
2
¡ Semiconductor
MSM6636

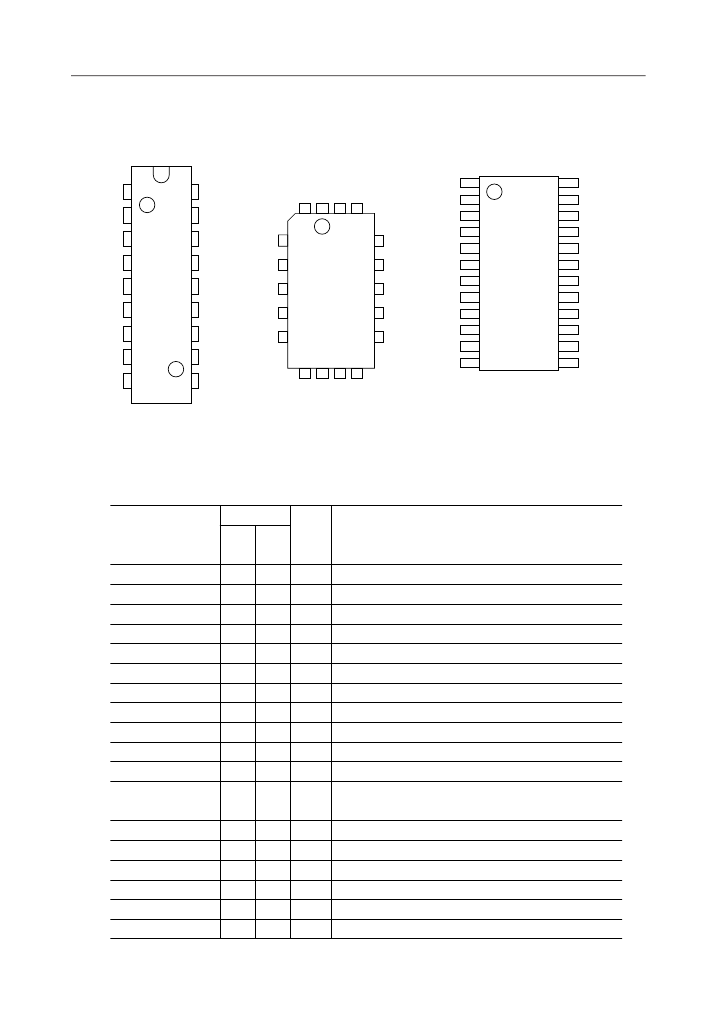

PIN CONFIGURATION (TOP VIEW)
18pin Plastic DIP
AVDD
1
BO–
BI–
BI+
BO+
2
3
4
5
1 8
1 7
1 6
1 5
1 4
1 3
1 2
11
10
18pin Plastic QFJ
BO–
AVDD
DVDD
RES
DVDD
RES
INT
TXD
RXD
SCLK
/PAE
A-D
OSC0
M-N
DGND
OSC1
OSC0
OSC1
8
9
10 11
24pin Plastic SOP
AVDD
BO–
BI–
BI+
BO+
NC
NC
NC
AGND
U-C
M-N
DGND
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
2
1
18 17
16
15
14
13
12
BI–
BI+
BO+
AGND
U-C
3
4
5
6
7
INT
TXD
RXD
SCLK
/PAE
A-D
AGND
6
U-C
M-N
7
8
DVDD
RES
INT
TXD
RXD
NC
NC
NC
SCLK/PAE
A-D
OSC0
OSC1
DGND
9
NC: No Connection
PIN DESCRIPTION
Pin #
Pin Name
AVDD
BO –
BI –
BI +
BO +
AGND
U-C
M-N
DGND
OSC 1
OSC 0
A-D
SCLK / PAE
RXD
TXD
INT
RES
DVDD
DIP/
QFJ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
SOP
1
2
3
4
5
9
10
11
12
13
14
15
16
20
21
22
23
24
I/O
—
O
I
I
O
—
I
I
—
O
I
I
I
I
O
O
I
—
Function
Analog power supply pin
LAN - BUS output –
LAN - BUS input –
LAN - BUS input +
LAN - BUS output +
Analog ground pin
0: UART
1: clock synchronous serial select pin
1:normal mode select pin
0: MPC mode
Digital ground pin
Crystal oscillation output
Crystal oscillation input
0: data communication
1: address communication
Serial clock input/Parity select pin
Serial data input pin
Serial data output pin
Interrupt output pin
Reset input pin
Digital power supply pin
3
MSM6636
¡ Semiconductor

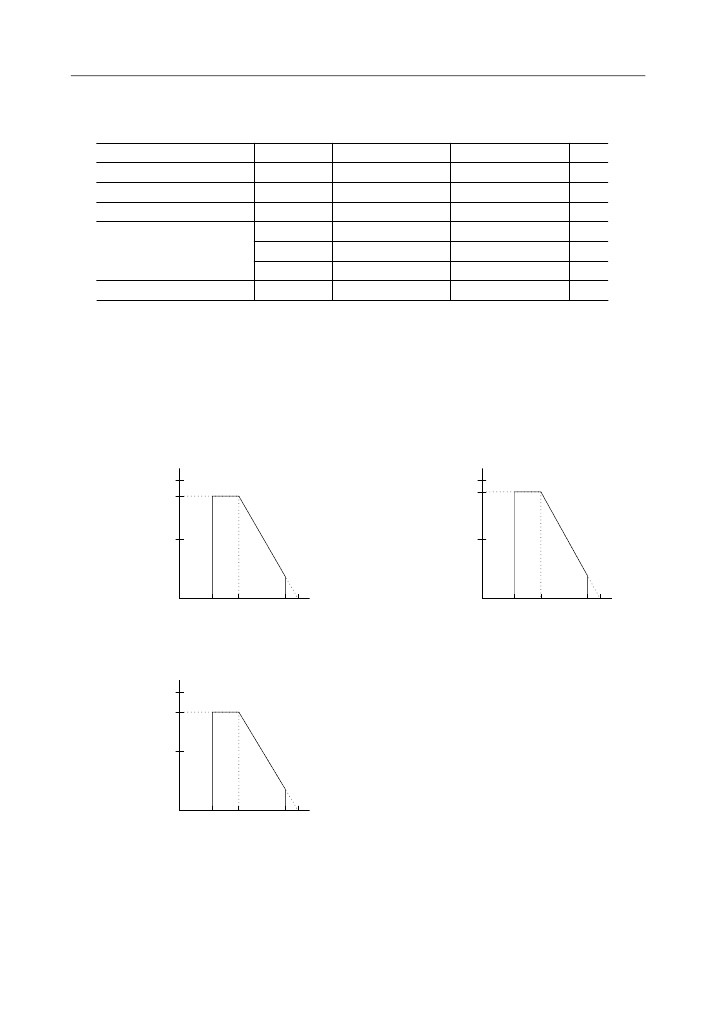

ABSOLUTE MAXIMUM RATINGS
DGND = AGND = 0V
Parameter
Power Supply Voltage
Input Voltage
Output Voltage
Power Dissipation
Storage Temperature
Symbol
DVDD, AVDD
V
I
V
O
P
D(DIP)
*
1
P
D(QFJ)
*
2
P
D(SOP)
*
3
T
STG
AVDD = DVDD
AVDD = DVDD
Ta = 25°C
Ta = 25°C
Ta = 25°C
Condition
Rated Value
-0.3~7.0
-0.3~DVDD+0.3
-0.3~DVDD+0.3
860
960
830
-55~150
Unit
V
V
V
mW
mW
mW
°C
P
D(DIP)*1
: 18PIN DIP package power dissipation
P
D(QFJ)*2
: 18PIN QFJ package power dissipation
P
D(SOP)*3
: 24PIN SOP package power dissipation
Power Dissipation Curve
< 18PIN DIP package >
1000
860
Power dissipation P
D(QFJ)
[mW]
Power dissipation P
D(DIP)
[mW]
1000
960
< 18PIN QFJ package >
500
500
-40 25
125 150
-40 25
125 150
Ambient temperature Ta (°C)
< 24PIN SOP package >
Ambient temperature Ta (°C)
Power dissipation P
D(SOP)
[mW]
1000
830
500
-40 25
125 150
Ambient temperature Ta (°C)
4
