SUBMINIATURE T-3/4 LED
DIFFUSED AND CLEAR LAMPS
HIGH EFF. RED
YELLOW
GREEN
AIGaAs RED
HLMP-6305A
HLMP-6405A
HLMP-6505A
HLMP-Q105A
HLMP-Q101A
Water Clear
Water Clear
Water Clear
Water Clear
Red Diffused
MV6700A
MV6300A
MV6400A
HLMP-Q150A
HLMP-Q155A
Red Diffused
Yellow Diffused
Green Diffused
Red Diffused
Water Clear
PACKAGE DIMENSIONS
.087 (2.2)
.079 (2.0)
.024 (.6)
.016 (.4)
.276 (7.0)
MIN
FEATURES
• Subminiature T-3/4 transfer molded
• Low package profile
• Axial leads
• Wide viewing angle
.091 (2.3)
.083 (2.1)
• SMT versions
DIA
.010 (.26)
.002 (.06)
.075 (1.9)
.063 (1.6)
.020 (.5)
.012 (.3)
.058 (1.48)
.050 (1.28)
.056 (1.44)
.048 (1.24)
DESCRIPTION
These T-3/4 subminiature LED lamps feature a square-
base, transfer molded package for surface mount
applications. A tinted diffused or water clear epoxy
lens — available in AIGaAs red, high-efficiency red,
green, and yellow — produces wide-angle beam
emission and sharp on/off contrast. They are available
with gullwing lead bends for top mounting, as well as
yoke lead bends and Z-bends for mounting to the back
of a PCB.
.031 (.78)
.023 (.58)
CATHODE MARK
(COLOR STRIPE ON SIDE OF PACKAGE)
NOTES:
ALL DIMENSIONS ARE IN INCHES (mm).
ABSOLUTE MAXIMUM RATING
c
HLMP-Q101A
HLMP-Q105A
HLMP-Q150A
HLMP-Q155A
85
30
300
5
-20 to +100
-20 to +100
Parameter
Power Dissipation
Average Forward Current
Peak Forward Current
(1 µS pulsewidth, 0.1% DF)
Lead Soldering Time at 260°C
Operating Temperature
Storage Temperature
HLMP-6305A
MV6700A
135
30
90
5
-55 to +100
-55 to +100
HLMP-6405A
MV6300A
85
20
60
5
-55 to +100
-55 to +100
HLMP-6505A
MV6400A
135
30
90
5
-50 to +100
-50 to +100
Units
mW
mA
mA
sec
°C
°C
© 2003 Fairchild Semiconductor Corporation
Page 1 of 6
7/14/03
SUBMINIATURE T-3/4 LED
DIFFUSED AND CLEAR LAMPS
HIGH EFF. RED
YELLOW
GREEN
AIGaAs RED
HLMP-6305A
HLMP-6405A
HLMP-6505A
HLMP-Q105A
HLMP-Q101A
Water Clear
Water Clear
Water Clear
Water Clear
Red Diffused
MV6700A
MV6300A
MV6400A
HLMP-Q150A
HLMP-Q155A
Red Diffused
Yellow Diffused
Green Diffused
Red Diffused
Water Clear
ELECTRICAL / OPTICAL CHARACTERISTICS
(T
A
=25°C)
Part Number QTLP-
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width (nm)
Reverse Voltage (V)
Viewing Angle (°)
3.0
1.8
635
40
5
50
3.0
2.0
585
36
5
50
3.0
2.0
565
28
5
50
1.8*
1.6*
660
20
5
50
*Tested at I
F
= 1mA
I
F
= 10mA
I
F
= 10mA
I
R
= 100µA
I
F
= 10mA
1.0
3.0
1.0
3.0
1.0
3.0
1.0*
1.8*
*Tested at I
F
= 1mA
I
F
= 10mA
MV6700A
MV6300A
MV6400A
HLMP-Q150A
Condition
I
F
= 10mA
ELECTRICAL / OPTICAL CHARACTERISTICS
(T
A
=25°C)
Part Number QTLP-
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width (nm)
Reverse voltage (V)
Viewing Angle (°)
3.0
1.8
635
40
5
25
3.0
2.0
585
36
5
25
3.0
2.0
565
28
5
25
2.4**
1.8**
660
20
5
50
2.4**/1.8*
1.8**/1.6*
660
20
5
25
3.0
12.0
3.0
12.0
3.0
12.0
22**
45**
20.0**/2.0*
50.0**/4.0*
HLMP-
6305A
HLMP-
6405A
HLMP-
6505A
HLMP-
Q101A
HLMP-Q105A/
Q155A
Condition
I
F
= 10mA
**Tested at I
F
= 1mA
**Tested at I
F
= 20mA
I
F
= 10mA
*Tested at I
F
= 1mA
**Tested at I
F
= 20mA
I
F
= 10mA
I
F
= 10mA
I
R
= 100µA
I
F
= 10mA
© 2003 Fairchild Semiconductor Corporation
Page 2 of 6
7/14/03
SUBMINIATURE T-3/4 LED
DIFFUSED AND CLEAR LAMPS
HIGH EFF. RED
YELLOW
GREEN
AIGaAs RED
HLMP-6305A
HLMP-6405A
HLMP-6505A
HLMP-Q105A
HLMP-Q101A
Water Clear
Water Clear
Water Clear
Water Clear
Red Diffused
MV6700A
MV6300A
MV6400A
HLMP-Q150A
HLMP-Q155A
Red Diffused
Yellow Diffused
Green Diffused
Red Diffused
Water Clear

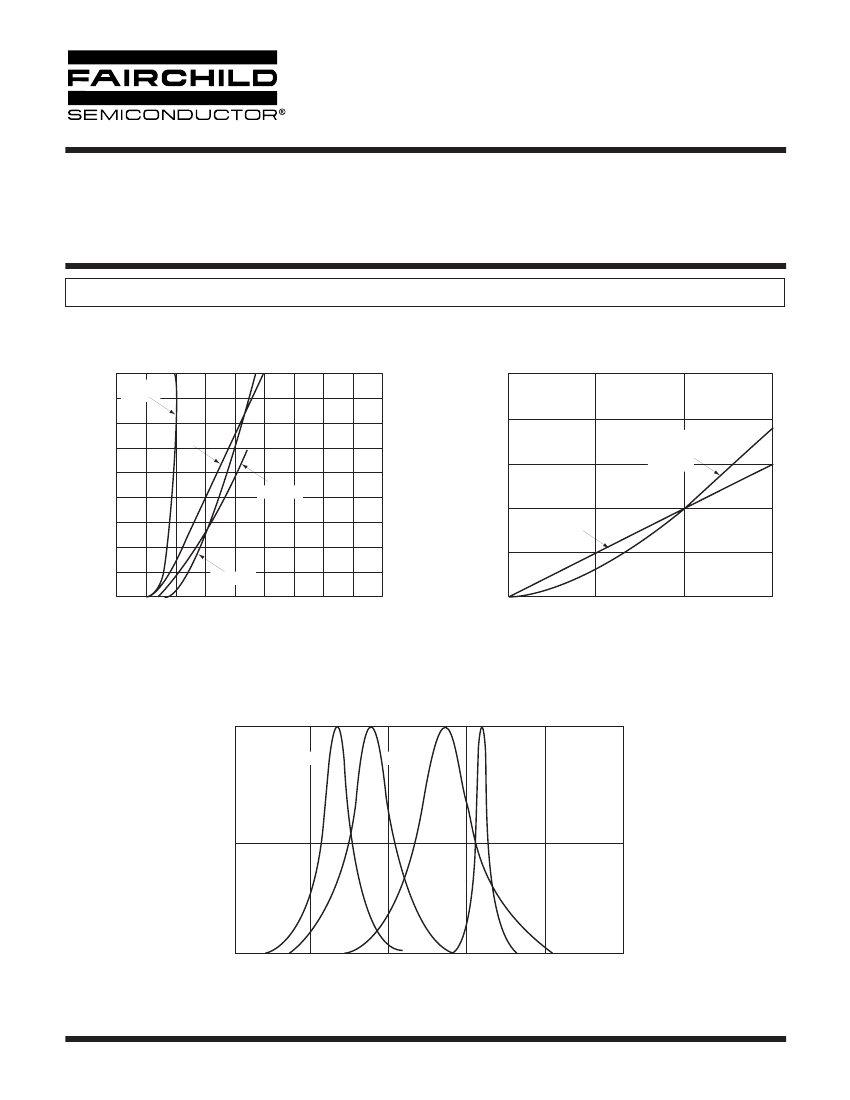

TYPICAL PERFORMANCE CURVES
Fig. 2 Relative Luminous Intensity vs.
DC Forward Current
2.5
Fig. 1 Forward Current vs. Forward Voltage
90
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 10 mA)
80
AlGaAs
RED
I
F
- FORWARD CURRENT (mA)
70
60
50
40
30
20
10
0
1.0
YELLOW
HER
2.0
HER
YELLOW
GREEN
1.5
1.0
AlGaAs
RED
0.5
GREEN
0.0
2.0
3.0
4.0
5.0
0
5
10
15
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
1.0
GREEN
YELLOW
AlGaAs RED
RELATIVE INTENSITY
0.5
HER
0
500
550
600
650
700
750
WAVELENGTH (nm)
© 2003 Fairchild Semiconductor Corporation
Page 3 of 6
7/14/03
SUBMINIATURE T-3/4 LED
DIFFUSED AND CLEAR LAMPS
HIGH EFF. RED
YELLOW
GREEN
AIGaAs RED
HLMP-6305A
HLMP-6405A
HLMP-6505A
HLMP-Q105A
HLMP-Q101A
Water Clear
Water Clear
Water Clear
Water Clear
Red Diffused
MV6700A
MV6300A
MV6400A
HLMP-Q150A
HLMP-Q155A
Red Diffused
Yellow Diffused
Green Diffused
Red Diffused
Water Clear
RECOMMENDED PRINTED CIRCUIT BOARD PATTERN
0.106 (2.68)
0.035 (0.89)
0.035 (0.89)
0.035 (0.89)
For Gullwing Lead Bend
RECOMMENDED REFLOW SOLDERING PROFILE
5 sec MAX
soldering time
240° C MAX
+5° C/s MAX
-5° C/s MAX
60 - 120 sec
Preheating
120 - 150° C MAX
© 2003 Fairchild Semiconductor Corporation
Page 4 of 6
7/14/03
SUBMINIATURE T-3/4 LED
DIFFUSED AND CLEAR LAMPS
HIGH EFF. RED
YELLOW
GREEN
AIGaAs RED
HLMP-6305A
HLMP-6405A
HLMP-6505A
HLMP-Q105A
HLMP-Q101A
Water Clear
Water Clear
Water Clear
Water Clear
Red Diffused
MV6700A
MV6300A
MV6400A
HLMP-Q150A
HLMP-Q155A
Red Diffused
Yellow Diffused
Green Diffused
Red Diffused
Water Clear

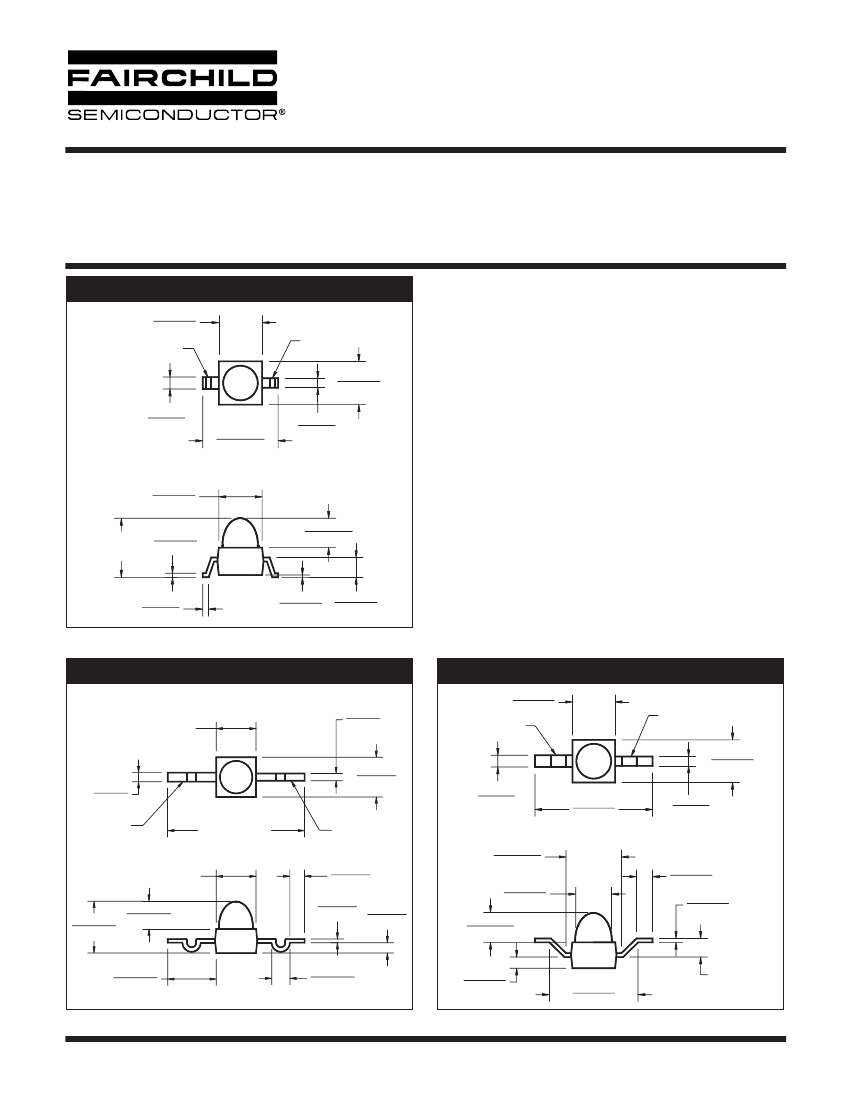

GULLWING LEAD CONFIGURATION
.087 (2.2)
.079 (2.0)
CATHODE
ANODE
FEATURES
• Available in Gullwing, Yoke and Z-bend lead formings
• Compatible with automatic placement equipment
• Compatible with vapor phase reflow soldering processes
• Long life — solid state reliability
• Reel and tape or bulk packaging available
.091 (2.3)
.083 (2.1)
.024 (.6)
.016 (.4)
.154 (3.90)
.148 (3.75)
.020 (.5)
.012 (.3)
DESCRIPTION
These subminiature solid state lamps are transfer molded in an
axial lead package. They are available in yellow, green, high
efficiency red and AIGaAs red in both diffused and water clear
lens.
.078 (1.9)
.063 (1.6)
.058 (1.48)
.050 (1.28)
.115 (2.92)
.099 (2.52)
.010 (.26)
.002 (.06)
Automatic placement equipment can be used to mount the
LEDs on the PC board. The lamps can be mounted using
either batch or in line vapor phase reflow solder processes.
NOTES:
.016 (.4)
.008 (.2)
.033 (.82)
.000 (.00)
.039 (1.0)
.028 (.7)
ALL DIMENSIONS ARE IN INCHES (mm)
YOKE LEAD CONFIGURATION
.087 (2.2)
.079 (2.0)
.020 (.5)
.012 (.3)
Z-BEND LEAD CONFIGURATION
.087 (2.2)
.079 (2.0)
ANODE
CATHODE
.091 (2.3)
.083 (2.1)
.024 (.6)
.016 (.4)
.024 (.6)
.016 (.4)
CATHODE
.091 (2.3)
.083 (2.1)
.240 (6.1)
.232 (5.9)
.020 (.5)
.012 (.3)
.300 (7.62) MAX
ANODE
.078 (1.9)
.063 (1.6)
.058 (1.48)
.050 (1.28)
.047 (1.2)
.031 (0.8)
.010 (.26)
.002 (.06)
.033 (.85)
.026 (.65)
.128 (3.24)
.112 (2.84)
.078 (1.9)
.063 (1.6)
.058 (1.48)
.050 (1.28)
.039 (.99)
.023 (.59)
.010 (.26)
.002 (.06)
.115 (2.92)
.099 (2.52)
.117 (2.96)
.100 (2.56)
.048 (1.22)
.032 (.82)
.033 (.85)
.026 (.66)
.189 (4.8)
.173 (4.4)
.034 (.86)
.026 (.66)
© 2003 Fairchild Semiconductor Corporation
Page 5 of 6
7/14/03
