OL595N-20/P20, OL595N-40/P20,
OL595N-60/P20
LASER DIODES
1.55
mm
High-Power Laser-Diode Coaxial Module
OL595N-20/P20, OL595N-40/P20, OL595N-60/P20
GENERAL DESCRIPTION
The OL595N-20/P20, OL595N-40/P20, and OL595N-60/P20 are extremely high-power MQW
structured 1.55
mm
laser-diode coaxial modules with single-mode fiber pigtails. These modules
are optimal light sources for optical measuring instruments and other systems that require high
power.
FEATURES
• High output power: Pf=20 mW (Pulse), 40 mW (Pulse), 60 mW (Pulse)
• Single-mode fiber
• Multi-quantum-well (MQW) structure
APPLICATIONS
• Optical measuring instruments
• OTDRs

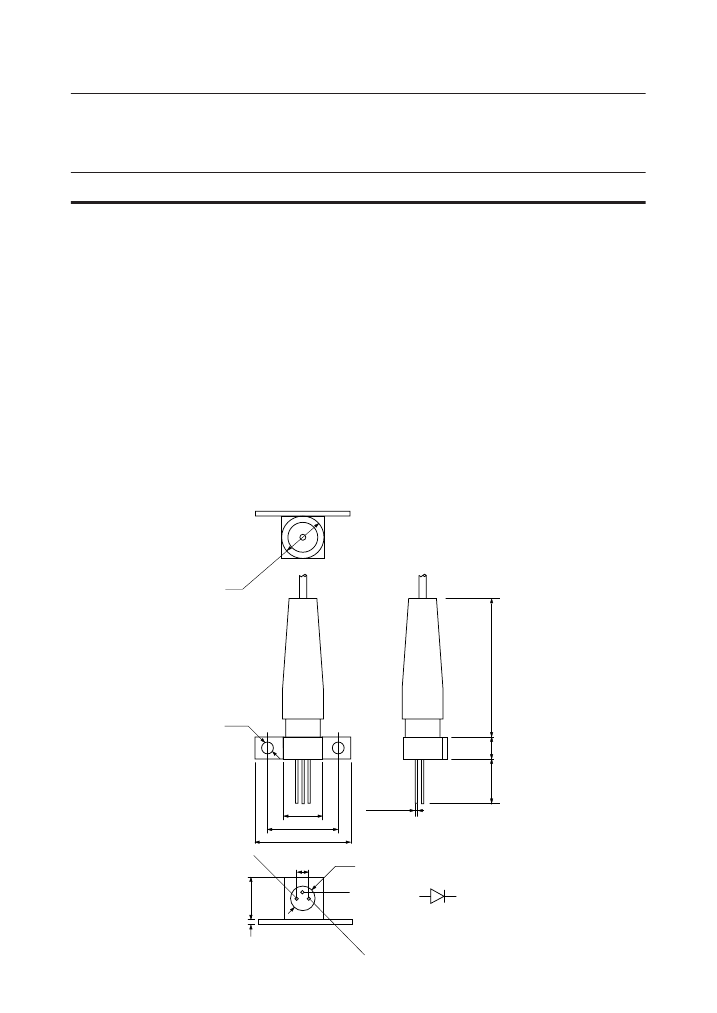

PACKAGE DIMENSIONS (Unit: mm)
• OL595N-20/P20, OL595N-40/P20, OL595N-60/P20
f6.8
2–f2.2
7
12.7
17
q
2
f4
3–f0.45
1
6.4
w
CASE LD
w
q
e
e
19
4
23.6
1/2
LASER DIODES
OL595N-20/P20, OL595N-40/P20, OL595N-60/P20
ABSOLUTE MAXIMUM RATINGS
Parameter
Fiber Output Power
LD Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
Pf
V
R
(LD)
T
opr
T
stg
—
—
Test Conditions
Ratings
OL595N-20/P20
Ta=25°C
OL595N-40/P20
OL595N-60/P20
2
–20 to +60
–40 to +85
30
48
70
V
°C
°C
mW
Unit

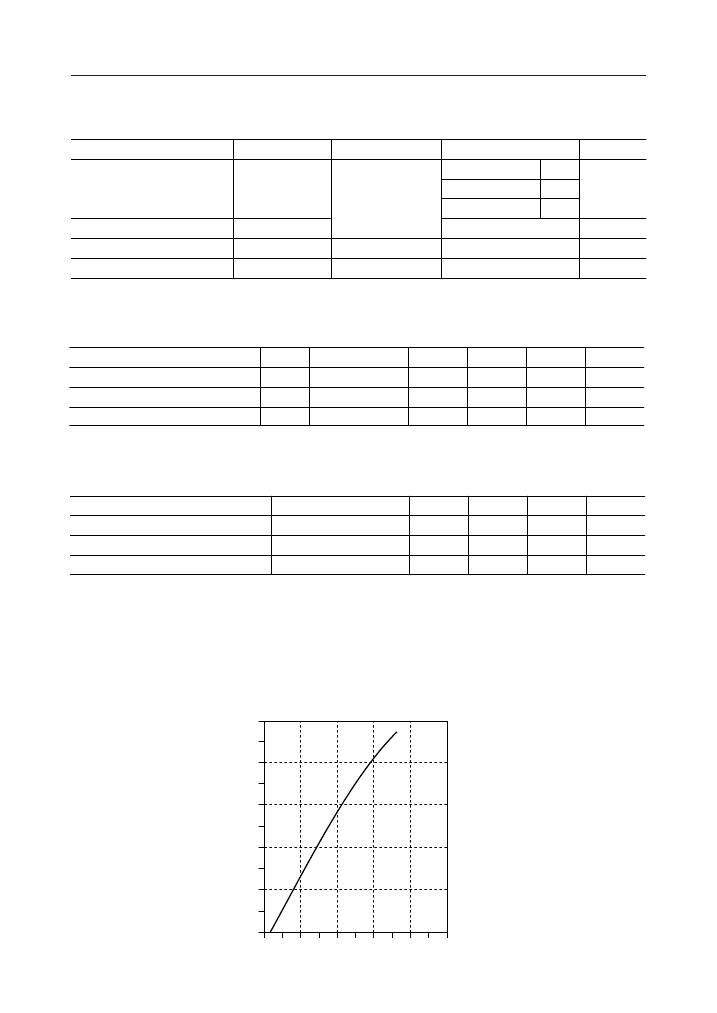

OPTICAL AND ELECTRICAL CHARACTERISTICS
Parameter
Threshold Current
Center Wavelength
Spectral Width
Symbol Test Conditions
Ith
lc
s
—
—
RMS
Min.
—
1530
—
Typ.
—
1550
—
Max.
75
1570
10
Unit
mA
nm
nm
Optical Output Power (Pf)
Model
OL595N-20/P20
OL595N-40/P20
OL595N-60/P20
Test Conditions
I
F
=500 mA (Pulse*)
I
F
=750 mA (Pulse*)
I
F
=800 mA (Pulse*)
Min.
20
40
60
Typ.
—
—
—
Max.
—
—
—
Unit
mW
mW
mW
*Pulse Condition : Width 10
ms,
duty ratio : 1%
TYPICAL CHARACTERISTIC
l
OL595N-60/P20
Fiber Output Power vs. Forward Current
70
56
Fiber Output Power Pf (mW)
42
28
14
0
0
160
320
480
640
800
Forward Current I
F
(mA)
2/2
