OL5201N-25, OL5204N-25
1.55
mm
High-Power Laser-Diode DIP Module
OL5201N-25, OL5204N-25
GENERAL DESCRIPTION
The OL5201N-25 and OL5204N-25 are 1.55
mm,
extremely high-power laser-diode DIP modules
with single-mode fiber pigtails. The Multi-Quantum-Well (MQW) structure laser diodes
achieve a single-mode fiber output of over 25 mW. The modules are optimal light sources for
optical measuring instruments and other systems that require high-power.
FEATURES
•
•
•
•
•
High output power: Pf=25 mW
Single-mode fiber
Hermetically-sealed,14-pin Dual-In-line Package (DIP)
Includes thermoelectric cooler for temperature control
Includes monitor photodiode for power control (OL5201N-25)
APPLICATIONS
• Optical measuring instruments
• OTDRs

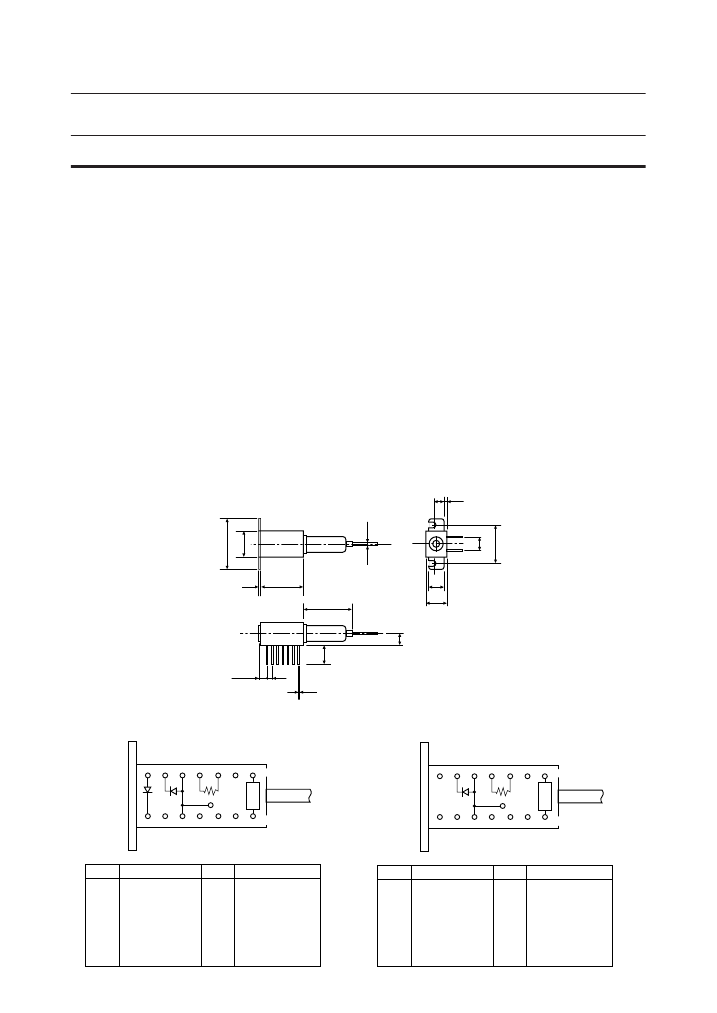

PACKAGE DIMENSIONS (Unit: mm)
• OL5201N-25/OL5204N-25
25.4
12.7
f0.9
5
1
1.0
20.8
24
7.1
9
3.8
2.54
f0.45
• OL5201N-25
TERMINAL CONNECTION
(BOTTOM VIEW)
#8
#14
(–)
COOLER
6.35
• OL5204N-25
TERMINAL CONNECTION
(BOTTOM VIEW)
#8
FIBER
LD
THERMISTOR
CASE
5.9
7.62
19
#14
(–)
COOLER
FIBER
PD
LD
THERMISTOR
CASE
(+)
#7
#1
#7
(+)
#1
PIN No.
1
2
3
4
5
6
7
FUNCTION
COOLER ANODE
NC
NC
NC
LD ANODE and
CASE GROUND
NC
PD CATHODE
PIN No.
FUNCTION
PD ANODE
8
LD CATHODE
9
LD ANODE and
10
CASE GROUND
THERMISTOR
11
THERMISTOR
12
NC
13
COOLER CATHODE
14
PIN No.
1
2
3
4
5
6
7
FUNCTION
COOLER ANODE
NC
NC
NC
LD ANODE and
CASE GROUND
NC
NC
PIN No.
FUNCTION
NC
8
LD CATHODE
9
LD ANODE and
10
CASE GROUND
THERMISTOR
11
THERMISTOR
12
NC
13
COOLER CATHODE
14
1/4
LASER DIODES
OL5201N-25, OL5204N-25
ABSOLUTE MAXIMUM RATINGS
Parameter
Fiber Output Power
Forward Current
Reverse Voltage
Cooler Current
Operating Temperature
Storage Temperature
Symbol
Pf
I
F
V
R
Ic
T
opr
T
stg
—
—
Ta=25°C
Test Conditions
Ratings
30
400
2
1.2
–20 to +45
–20 to +70
Unit
mW
mA
V
A
°C
°C
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
LD
=25°C)
Parameter
Threshold Current
Fiber Output Power
Center Wavelength
Spectral Half Width
Forward Voltage
PD Dark Current *
Monitor Current *
Cooler Capacity
Cooler Current
Cooler Voltage
Thermistor Resistance
* : OL5201N-25
Symbol Test Conditions
Ith
Pf
lc
Dl
V
F
I
DARK
Im
DT
Ic
Vc
Rth
—
I
F
=400 mA (CW)
Pf=25 mW
Pf=25 mW
I
F
=400 mA
V
R
(PD)=5 V
Pf=25 mW
Pf=25 mW, Tc=45°C
DT=20°C
DT=20°C
—
Min.
—
25
1520
—
—
—
50
20
—
—
—
Typ.
55
27
1550
10
—
—
—
—
—
—
10
Max.
75
—
1580
20
2.5
1
—
—
1.2
3
—
Unit
mA
mW
nm
nm
V
mA
mA
°C
A
V
kW
FIBER PIGTAIL SPECIFICATIONS
Parameter
Fiber Type
Mode Field Diameter
Cladding Diameter
Jacket Diameter
Length
Connector
Specifications
Single-mode
10±1
125±2
900
1 (Min)
FC
Unit
—
mm
mm
mm
m
—
2/4
LASER DIODES
OL5201N-25, OL5204N-25
TYPICAL CHARACTERISTICS
• OL5201N-25

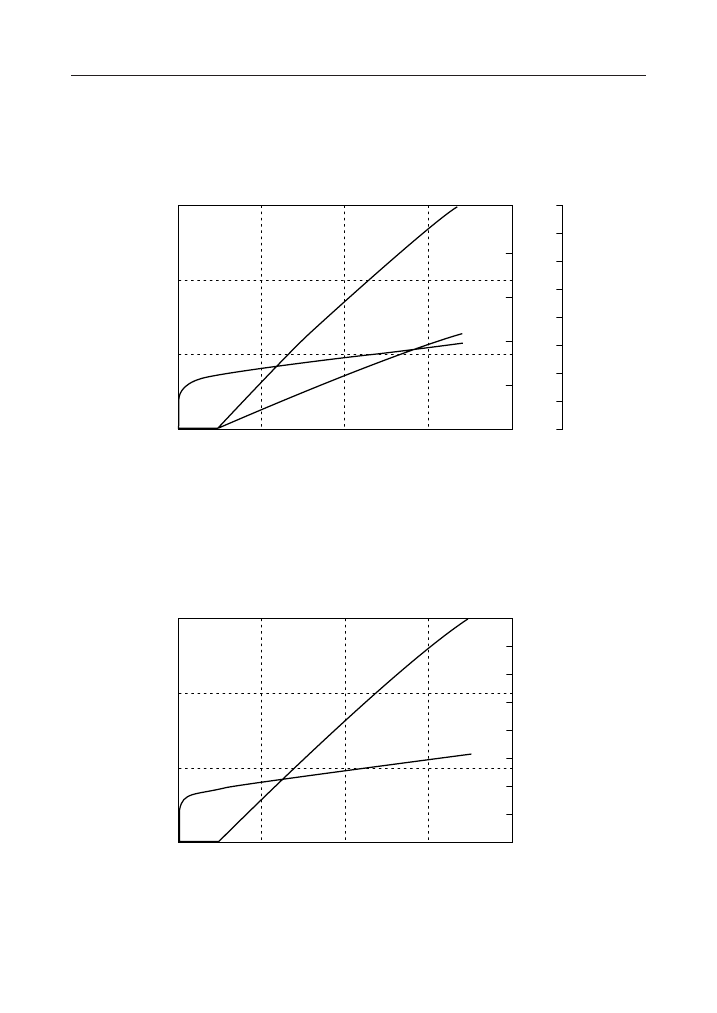

Fiber Output Power vs. Forward Current
30
0.5
4.0
3.5
Pf
Fiber Output Power Pf (mW)
0.4
Monitor Current Im (mA)
3.0
2.5
2.0
1.5
1.0
0.5
Forward Voltage V
F
(V)
20
0.3
Im
10
V
F
0.2
0.1
0
0
100
200
Forward Current I
F
(mA)
300
0.0
400
0.0
• OL5204N-25
Fiber Output Power vs. Forward Current
30
4.0
Pf
Fiber Output Power Pf (mW)
20
3.5
3.0
2.5
2.0
V
F
10
1.5
1.0
0.5
0
0
100
200
Forward Current I
F
(mA)
300
0.0
400
Forward Voltage V
F
(V)
3/4
LASER DIODES
OL5201N-25, OL5204N-25
• OL5201N-25

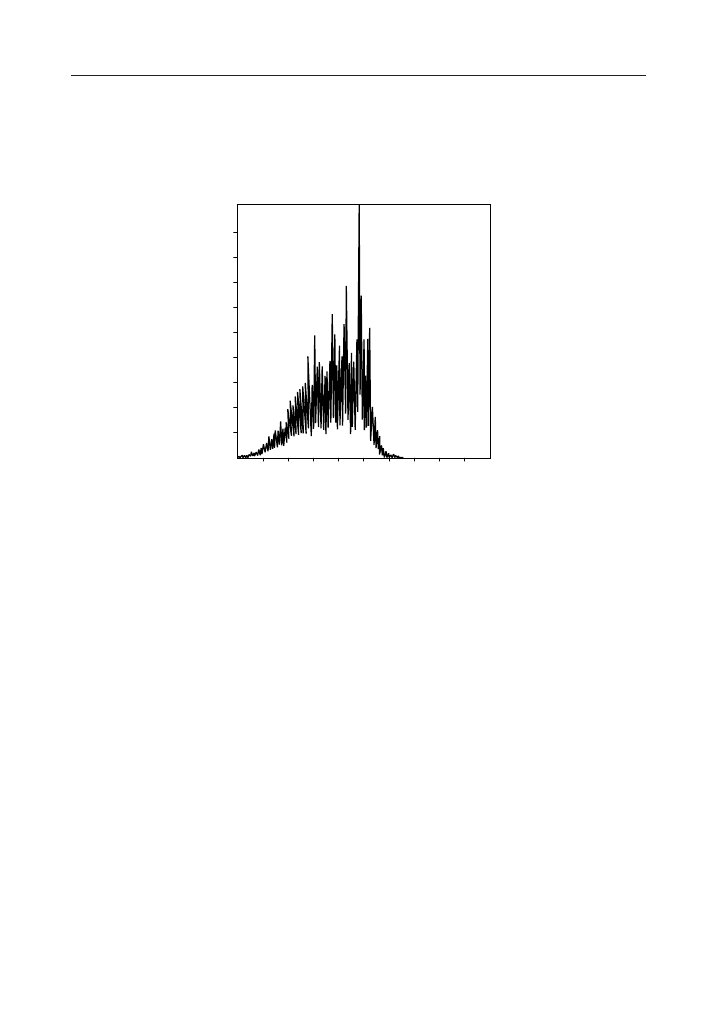

Oscillation Spectrum
1
Pf=25 mW
0.8
Relative Intensity
0.6
0.4
0.2
0
1525
1550
Wavelength (nm)
1575
4/4
