Clock Buffer High Speed Translator Buffer to LVCMOS
器件参数
参数名称
属性值
产品种类 Product Category
Clock Buffer
制造商 Manufacturer
Microchip(微芯科技)
RoHS
Details
安装风格 Mounting Style
SMD/SMT
封装 / 箱体 Package / Case
SOP-8
系列 Packaging
Cut Tape
系列 Packaging
MouseReel
系列 Packaging
Reel
工厂包装数量 Factory Pack Quantity
2500
单位重量 Unit Weight
0.030018 oz
文档预览
PL130-07(A)
High Speed Translator Buffer to LVCMOS
FEATURES
•
•
•
•
•
•
•
•
LVCMOS output
Selectable Drive capability
•
Drive 15pF or 30pF output load
Single AC coupled input (min. 100mV swing).
Accepts LVCMOS or Sine Wave inputs.
Input range from 0 to 200 MHz.
OE High (PL130-07) or OE Low (PL130-07A)
Enable
2.5V to 3.3V operation.
Available in 8-Pin SOP, 8-Pin TSSOP and
3x3mm 16-Pin QFN.
PIN CONFIGURATION
(TOP VIEW)
GND
REF_IN
GND
VDD
1
8
DRV_SEL^
VDD
GND
CLK_OUT
PL130-07
SOP-8L
2
3
4
7
6
5
VDD
DRV_SEL
GND
1
2
3
4
8
7
6
5
CLK_OUT
VDD
DNC
FIN
PL130-07(A)
DESCRIPTION
The PL130-07 is a low cost, high performance, high
speed, buffer that reproduces any input frequency
from 0 to 200MHz. It provides an LVCMOS output
with 15pF output load drive capability. Any input sig-
nal with at least 100mV swing can be used as refer-
ence signal. This chip is ideal for conversion from
sine wave to LVCMOS.
OE
TSSOP-8L
GND
9
8
7
DRV_SEL
GND
GND
OE
12
13
14
VDD
11
VDD
10
VDD
CLK_OUT
VDD
N/C
GND
PL130-07(A)
15
16
6
5
1
2
3
4
GND
GND
REF_IN
BLOCK DIAGRAM
REF_IN
Amplifier
Input
CLK_OUT
OE
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944-0800 • fax +1(408) 474-1000 •
www.micrel.com
Rev 03/24/15 Page 1
GND
PL130-07(A)
High Speed Translator Buffer to LVCMOS
PIN DESCRIPTION
Name
GND
VDD
DRV_SEL
REF_IN
CLK_OUT
OE
SOP-8L
1,3,6
4,7
8
2
5
N/A
TSSOP-8L
3
1,7
2
5
8
4
QFN-16L
1,2,4,5,
9,14,15
7,10,11,12
13
3
8
16
Type
P
P
I
I
O
I
Ground.
Power supply.
Drive Select input: ‘1’ for standard drive, ‘0’ for hi-
drive output. Internal pull-up (default is ‘1’).
Reference input signal. The frequency of this signal
will be reproduced at the output (after translation to
CMOS level).
CMOS clock output.
Output Enable. See OE LOGIC TABLE below
Description
OE LOGIC TABLE
Part Number
PL130-07
PL130-07A
OE State
0
1 (Default)
0 (Default)
1
Output Buffer State
Tri-State
Active
Active
Tri-State
ELECTRICAL SPECIFICATIONS
1. Absolute Maximum Ratings
PARAMETERS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
SYMBOL
V
DD
V
I
V
O
T
S
T
A
T
J
-0.5
-0.5
-65
-40
MIN.
MAX.
4.6
V
DD
+0.5
V
DD
+0.5
150
85
125
260
2
UNITS
V
V
V
°C
°C
°C
°C
kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent
damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the
device at these or any other conditions above the operational limits noted in this specification is not implied.
*
Note:
Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL
grade only.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944-0800 • fax +1(408) 474-1000 •
www.micrel.com
Rev 03/24/15 Page 2
PL130-07(A)
High Speed Translator Buffer to LVCMOS
2. AC Specifications
PARAMETERS
Input Frequency
Input Signal Swing
Output Frequency
REF_IN input
CONDITIONS
MIN.
0
100
0
200
TYP.
MAX.
200
UNITS
MHz
mV
MHz
3. CMOS Output Electrical Specifications
PARAMETERS
Output High Voltage
Output Low Voltage
Output High Voltage at
CMOS level
Output Drive Current
SYMBOL
V
OH
V
OL
V
OHC
CONDITIONS
I
OH
= -12mA
I
LO
= 12mA
I
OH
= -4mA
At TTL level (High Drive*)
At TTL level (Standard Drive)
V
DD
– 0.4
36
12
51
17
MIN.
2.4
0.4
TYP.
MAX.
UNITS
V
V
V
mA
mA
* Note: High Drive CMOS is selectable through DRIV_SEL selector input on pin 8(SOP) or 13(QFN).
4. CMOS Switching Characteristics
PARAMETERS
Output Clock Rise/Fall
Time
Output Clock Rise/Fall
Time (High Drive*)
SYMBOL
t
r
/ t
f
t
r
/ t
f
t
r
/ t
f
t
r
/ t
f
CONDITIONS
0.8V ~ 2.0V with 10 pF load
0.3V ~ 3.0V with 15 pF load
0.8V ~ 2.0V with 10 pF load
0.3V ~ 3.0V with 15 pF load
MIN.
TYP.
1.15
3.7
0.5
1.5
ns
MAX.
UNITS
* Note: High Drive CMOS is selectable through DRIV_SEL selector input on pin 8(SOIC) or 13(QFN).
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944-0800 • fax +1(408) 474-1000 •
www.micrel.com
Rev 03/24/15 Page 3
PL130-07(A)
High Speed Translator Buffer to LVCMOS

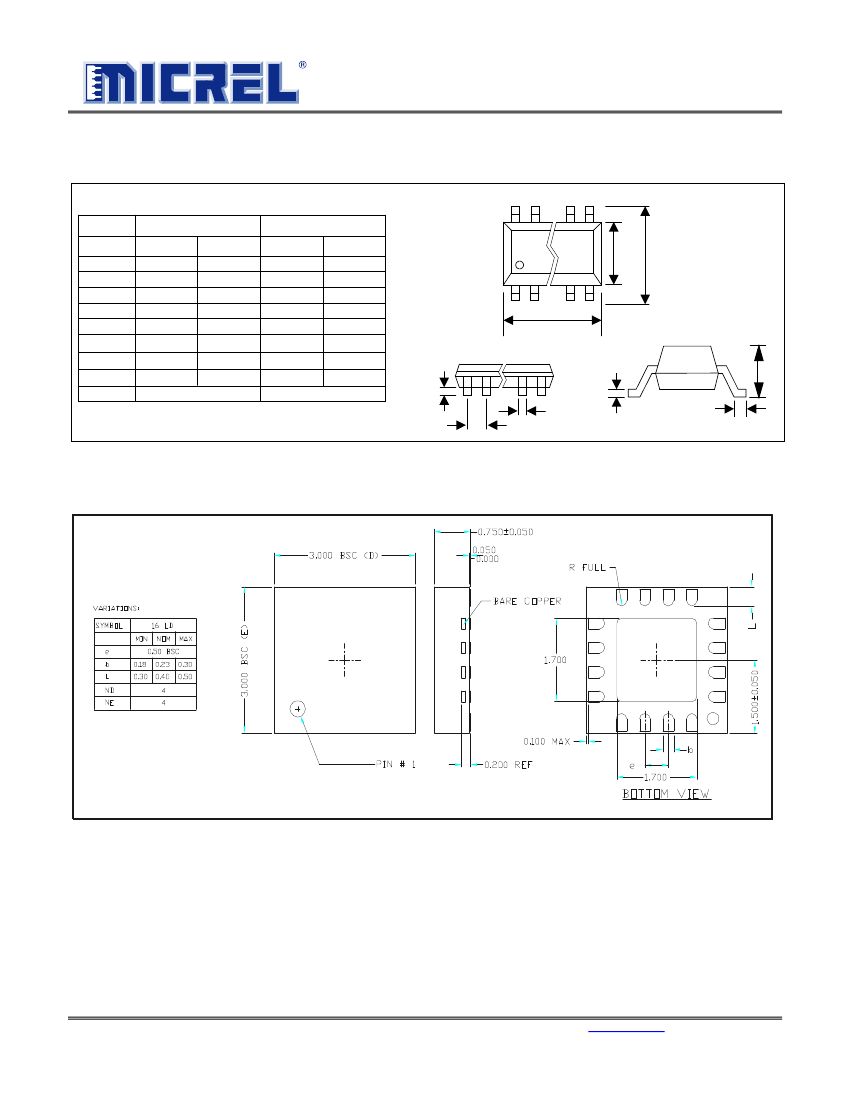

PACKAGE DRAWINGS (GREEN PACKAGE COMPLIANT)
8 PIN ( dimensions in mm )
SOP
Symbol
A
A1
B
C
D
E
H
L
e
Min.
1.47
0.10
0.33
0.19
4.80
3.80
5.80
0.38
1.27 BSC
Max.
1.73
0.25
0.51
0.25
4.95
4.00
6.20
1.27
Min.
-
0.05
0.19
0.09
2.90
4.30
6.20
0.45
TSSOP
Max.
1.20
0.15
0.30
0.20
3.10
4.50
6.60
0.75
A
1
e
B
C
L
A
D
E
H
0.65 BSC
QFN-16L
Dimensions in MM
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944-0800 • fax +1(408) 474-1000 •
www.micrel.com
Rev 03/24/15 Page 4
PL130-07(A)
High Speed Translator Buffer to LVCMOS
ORDERING INFORMATION (GREEN PACKAGE COMPLIANT)
For part ordering, please contact our Sales Department:
2180 Fortune Drive, San Jose, CA 95131, USA
Tel: (408) 944-0800 Fax: (408) 474-1000
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
PART NUMBER
PL130-07(A) X C
PART NUMBER
TEMPERATURE
C=Commercial
I=Industrial
PACKAGE TYPE
O=TSSOP-8L
Q=QFN-16L
S=SOP-8L
OE STATE
None= High Enable
A=Low Enable
Part/Order Number
PL130-07OC
PL130-07OC-R
PL130-07AOC
PL130-07AOC-R
PL130-07QC-R
PL130-07AQC-R
PL130-07SC
PL130-07SC-R
*Note:
Marking
P130-07
OC
LLLLL
P130-07A
OC
LLLLL
P130
07
LLL
P130
07A
LLL
P130-07
SC
LLLLL
Package Option
16-Pin TSSOP Tube
16-Pin TSSOP (Tape and Reel)
16-Pin TSSOP Tube
16-Pin TSSOP (Tape and Reel)
16-Pin QFN (Tape and Reel)
16-Pin QFN (Tape and Reel)
8-Pin SOP Tube
8-Pin SOP (Tape and Reel)
“LLL” and “LLLLL” designates lot number
Micrel Inc., reserves the right to make changes in its products or specifications, or both at any time without notice. The information furnished by Micrel
is believed to be accurate and reliable. However, Micrel makes no guarantee or warranty concerning the accuracy of said information and shall not be
responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY:
Micrel’s products are not authorized for use as critical components in life support devices or systems without the express
written approval of the President of Micrel Inc.
