This version: Aug. 2001
MSC1164
Previous version: Nov. 1997
¡ Semiconductor
MSC1164
¡ Semiconductor
20-Bit Grid/Anode Driver
GENERAL DESCRIPTION
The MSC1164 is a monolithic IC using the Bi-CMOS process technology for hybridizing CMOS
and bipolar transistors on the same chip. The logic portion such as the input stage, shift register
and latch is fabricated by CMOS and the output driver requiring a high withstand voltage is
fabricated by bipolar transistors.
Since a 32-pin plastic SSOP package is used, the display unit size can be reduced.
FEATURES
The MSC1164 is designed as a VFD grid/anode driver with emitter-follower force output with
20-bit active pull-down and built-in 20-bit shift register and latch.
• Logic Supply Voltage (V
CC
)
: 5V
: 65V
• Driver Supply Voltage (V
HV
)
• Driver Output Current
I
OHVH1
:–40mA (Only one driver output: "H")
I
OHVH2
:–2mA (All driver outputs: "H")
I
OHVL
:2mA
• 20-bit output (with latch circuit)
• 20-bit shift register
• Clock frequency
: 4MHz
• Package options:
32-pin plastic SSOP (SSOP32-P-430-1.00-K)
(Product name: MSC1164GS-K)
1/13
FEDL1164-03
¡ Semiconductor
MSC1164
BLOCK DIAGRAM
CLK
DIN
LS
CHG
CL
V
CC
V
HV
D
HVO1
R-1
1
1
HVO2
R-2
2
2
20-Bit Shift Register
20-Bit Latch
HVO20
R-20
Q
20
20
DOUT
GND
2/13
FEDL1164-03
¡ Semiconductor
MSC1164
INPUT AND OUTPUT CONFIGURATION

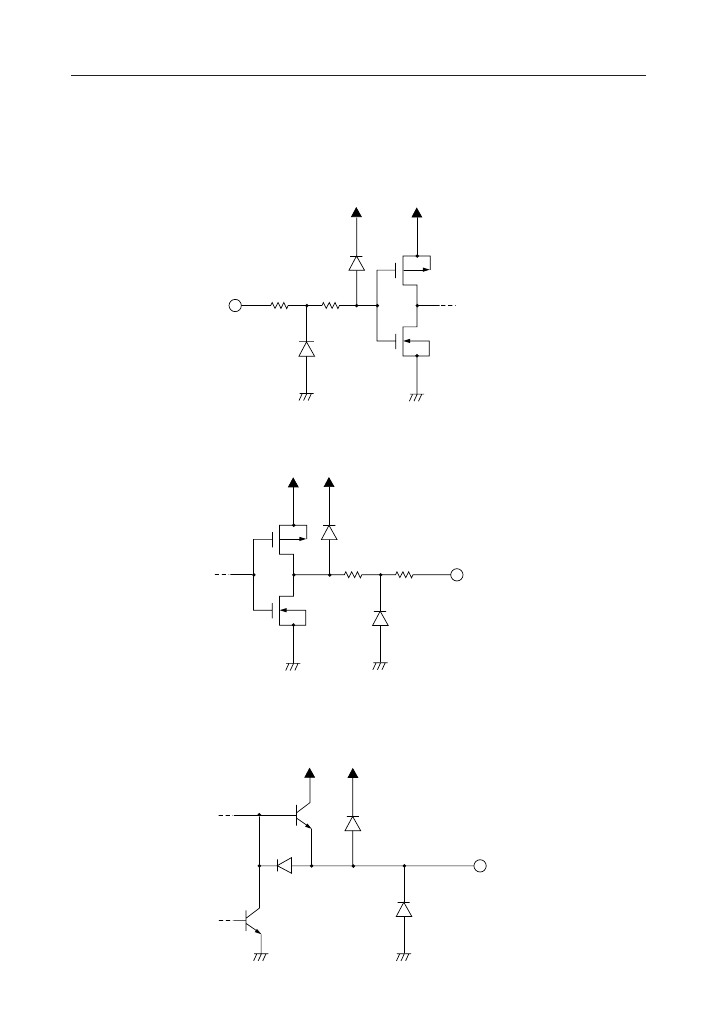

Schematic Diagrams of Logic Portion Input and Output Circuits
Input Pin
V
CC
V
CC
INPUT
GND
GND
Output Pin
V
CC
V
CC
DOUT
GND
GND
Schematic Diagram of Driver Output Circuit
V
HV
V
HV
HVO
GND
GND
3/13
FEDL1164-03
¡ Semiconductor
MSC1164

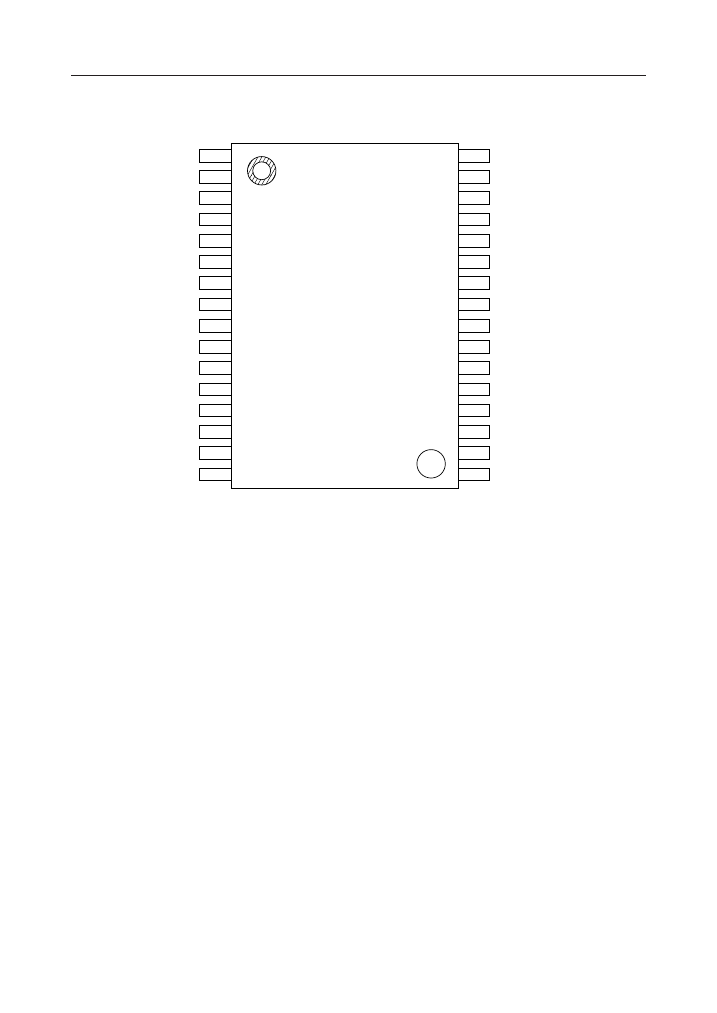

PIN CONFIGURATION (TOP VIEW)
NC
NC
DOUT
LS
CL
V
CC
HVO20
HVO19
HVO18
HVO17
HVO16
HVO15
HVO14
HVO13
HVO12
HVO11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
NC: No-connection pin
32-Pin Plastic SSOP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
NC
CHG
DIN
CLK
GND
V
HV
HVO1
HVO2
HVO3
HVO4
HVO5
HVO6
HVO7
HVO8
HVO9
HVO10
4/13
