JOG-00114
OKI
Electronics Components
OL395N-100/P20
1310nm+/-20nm 100mW Pulsed MQW Laser Diode Coaxial Module with SMF.
Rev.3 [May. 2002 ]
1. DESCRIPTION
OL395N-100/P20 is a 1310nm Laser Diode in coaxial package with SMF.
2. FEATURES
·
·
·
·
Fiber output: Po=100mW
Pulsed MQW FP Laser
Coaxial package module
Single mode fiber (SMF)
3. APPLICATION
·
OTDRs
·
Optical measuring instruments
4.OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
LD
= 25°C, 10µs pulse width and 1% duty)
Parameter
Threshold Current
Operation Current
LD Forward Voltage
Center Wavelength
Spectral Width
Symbol
Ith
Iop
Vf
λc
σ
Test Conditions
---
Po=100mW
Po=100mW, RMS×1
Min.
---
---
---
1290
---
Typ.
20
700
2.0
1310
5
Max.
50
800
3.0
1330
10
Unit
mA
mA
V
nm
nm
.
1/4
JOG-00114-R3
OKI
Electronics Components
OL395N-100/P20
5.ABSOLUTE MAXIMUM RATING
Parameter
Fiber Output Power
LD Reverse Voltage
LD Forward Current
Operating Temperature
Storage Temperature
Symbol
Po
V
R
(LD)
I
F
(LD)
Topr
Tstg
(Tc = 25°C, unless otherwise specified)
Rating
Unit
120*
mW
2.0
V
1000*
mA
-20 to +60
°C
-40 to +85
°C
Pulse width
≤ 10µs
, duty
≤ 1%
Exceeding these ratings may lead to immediate destruction or permanent deterioration of the device.
6. CONNECTOR AND FIBER SPECIFICATIONS
Parameter
Type
Mode Field Diameter
Cladding Diameter
Jacket Diameter
Length
Connector
7.ORDERING INFORMATION
Specifications
SMF
10±1
125±2
900
1 (Min.)
FC/SPC
Unit
---
µm
µm
µm
m
---
OL3 95 N – 100 / P 20
Wavelength Range
3: 1.3µm
Package number
Device Structure
N: FP Laser
Optical Output Power
Laser in mW
pulsed
Wavelength Tolerance
20: +/- 20nm
8.ATTACHED DATA
(at
25
°C
)
(1) If-Po graph (2) spectrum graph at
Po=100mW
(3) operating current (Iop)
at Po=100mW
(4) Center
wavelength (λc) at
Po=100mW (5)
Spectral Width (σ) at
Po=100mW (6) Threshold current (Ith)
.
2/4
JOG-00114-R3
OKI
Electronics Components
OL395N-100/P20

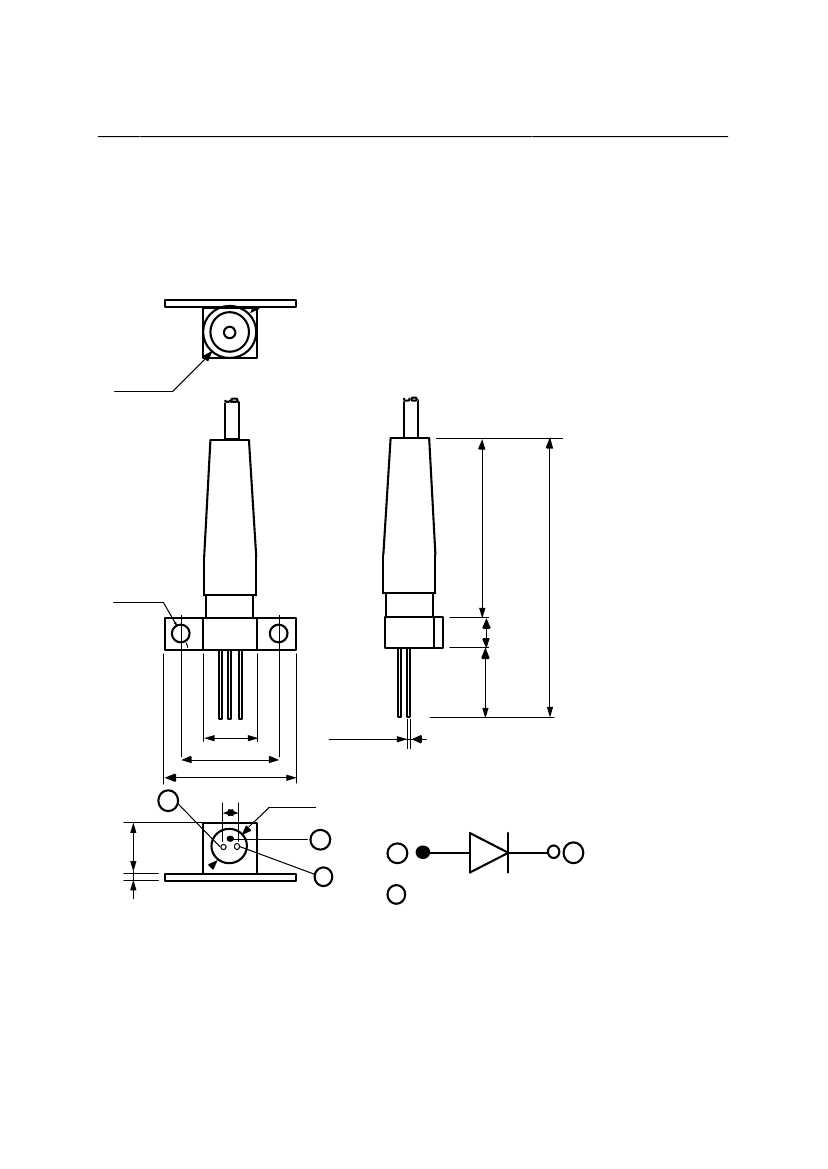

9.OUTLINE DRAWING
All dimensions in millimeters
Tolerances unless noted +/-0.5
Package No. 95(Unit: mm)
ø6.8
23.6
2-ø2.2
4
3-ø0.45
+/-0.2
19+/-1
46.6
+/-1.5
1
6.4
1
7
12.7
17
2
ø4
2
3
Case
2
3
LD
1
.
3/4
JOG-00114-R3
OKI
Electronics Components
OL395N-100/P20
10. SAFETY INFORMATION ON THIS PRODUCT
A laser beam is emitted from this laser diode during operation.
The invisible or visible laser beam, directly or indirectly, may cause injury to
Laser Beam the eye
or loss of eyesight.
Do not look directly into the laser beam.
Avoid exposure to the laser beam, any reflected or collimated beam.
Caution
The product contains gallium arsenide, GaAs.
GaAs vapor and powder are hazardous to human health if inhaled, ingested or
GaAs
swallowed.
Product
Do not destory or burn the product.
Do not crush or chemically dissolve the product.
Do not put the product in the mouth.
Observe related laws and company regulations when discarding this product.
The product should be excluded from general industrial waste or household
garbage.
Caution
A glass-fiber is attached on the product. Handle with care.
Optical Fiber When the fiber is broken or damaged, handle carefully to avoid injury from
the damaged part or fragments.
All specifications described herein are subject to change without notice.
Warning
Copyright 2001 Oki Electric Industry Co., Ltd
.
4/4
