2019年08月07日 | USART配置 STM32cubemx配置USART

目录：

1.软件

2.程序

3.使用STM32CubxMX配置USART

4,.介绍程序的实现

一、软件：

（1）STM32CubeMX

（2）KEIL5

硬件平台主IC：STM32F412RET6

二，见程序：main.c部分程序

#include "main.h"

#include "stm32f4xx_hal.h"

#include "usart.h"

#include "gpio.h"

#define led0_1  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_0, GPIO_PIN_SET)

#define led1_1  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_1, GPIO_PIN_SET)//IO口高电平输出

#define led2_1  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_2, GPIO_PIN_SET)//IO口高电平输出

#define led0_0  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_0, GPIO_PIN_RESET)

#define led1_0  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_1, GPIO_PIN_RESET)//IO口低电平输出

#define led2_0  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_2, GPIO_PIN_RESET)//IO口高电平输出

void Delay_Nus(uint32_t t)//us延时

{

uint8_t i;

while(t--)

{

i=25;

while(i--);

}

}

void Delay_Nms(uint32_t t)//ms延时

{

  while(t--)

  {

    Delay_Nus(1000);

  }

}

void SystemClock_Config(void);

uint8_t aRxBuffer[20];

int main(void)

{

  uint8_t aTxStartMessages[] = "rnPlease enter 10 characters:rn";

  HAL_Init();

  SystemClock_Config();//时钟

  MX_GPIO_Init();

  MX_USART1_UART_Init();

  while (1)

  {

    HAL_UART_Transmit_IT(&huart1 ,(uint8_t*)aTxStartMessages,sizeof(aTxStartMessages)); //发送函数

    HAL_UART_Receive_IT(&huart1,(uint8_t*)aRxBuffer,10); //接收函数

      led1_0;

      Delay_Nms(40);

      led1_1;

      Delay_Nms(40);

  }

}

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)

{

    UNUSED(huart);

    HAL_UART_Transmit(&huart1,(uint8_t*)aRxBuffer,10,0xFFFF);//(uint8_t*)aRxBuffer为字符串地址，10为字符串长度，0xFFFF为超时时间

}

void SystemClock_Config(void)//系统时钟

{

  RCC_OscInitTypeDef RCC_OscInitStruct;

  RCC_ClkInitTypeDef RCC_ClkInitStruct;

    /**Configure the main internal regulator output voltage

    */

  __HAL_RCC_PWR_CLK_ENABLE();

  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

    /**Initializes the CPU, AHB and APB busses clocks

    */

  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;

  RCC_OscInitStruct.HSIState = RCC_HSI_ON;

  RCC_OscInitStruct.HSICalibrationValue = 16;

  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_NONE;

  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)

  {

    _Error_Handler(__FILE__, __LINE__);

  }

    /**Initializes the CPU, AHB and APB busses clocks

    */

  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK

                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;

  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_HSI;

  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;

  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;

  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)

  {

    _Error_Handler(__FILE__, __LINE__);

  }

    /**Configure the Systick interrupt time

    */

  HAL_SYSTICK_Config(HAL_RCC_GetHCLKFreq()/1000);

    /**Configure the Systick

    */

  HAL_SYSTICK_CLKSourceConfig(SYSTICK_CLKSOURCE_HCLK);

  /* SysTick_IRQn interrupt configuration */

  HAL_NVIC_SetPriority(SysTick_IRQn, 0, 0);

}

/**

  * @brief  This function is executed in case of error occurrence.

  * @param  None

  * @retval None

  */

void _Error_Handler(char * file, int line)

{

  /* USER CODE BEGIN Error_Handler_Debug */

  /* User can add his own implementation to report the HAL error return state */

  while(1)

  {

  }

  /* USER CODE END Error_Handler_Debug */

}

#ifdef USE_FULL_ASSERT

/**

   * @brief Reports the name of the source file and the source line number

   * where the assert_param error has occurred.

   * @param file: pointer to the source file name

   * @param line: assert_param error line source number

   * @retval None

   */

void assert_failed(uint8_t* file, uint32_t line)

{

  /* USER CODE BEGIN 6 */

  /* User can add his own implementation to report the file name and line number,

    ex: printf("Wrong parameters value: file %s on line %drn", file, line) */

  /* USER CODE END 6 */

}

#endif

三.使用STM32CubxMX配置USART

    先配置时钟，在配置USART，配置IO口，最后设置好并输出.

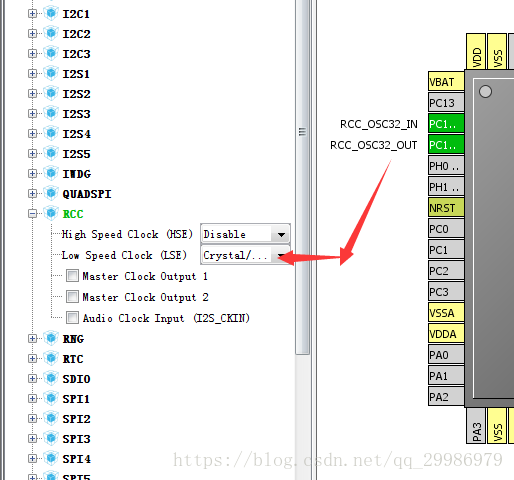

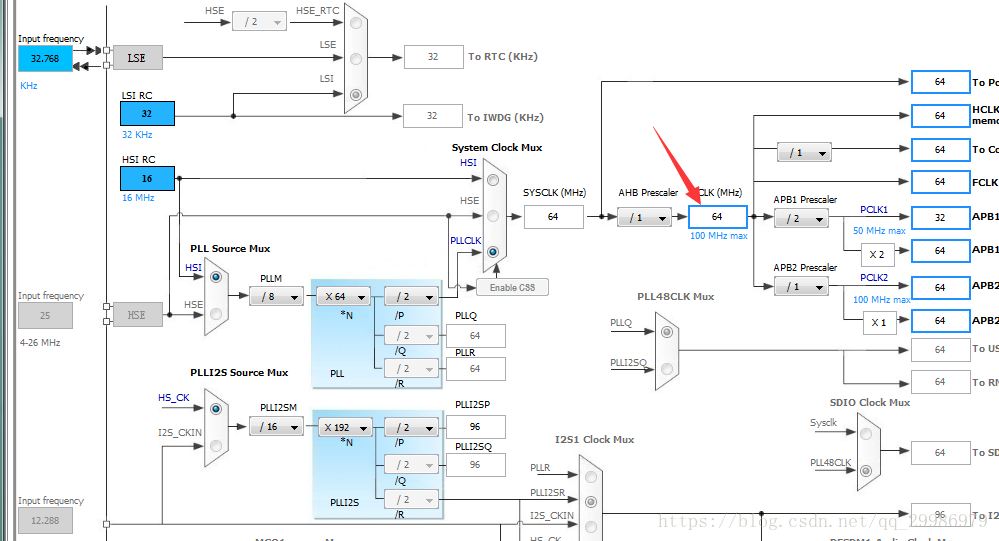

1.配置时钟（结合实际情况配置）

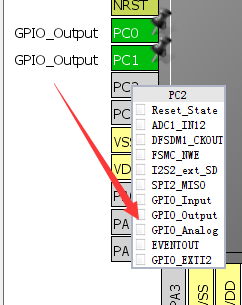

配置IO口为输出模式。

2.配置USART

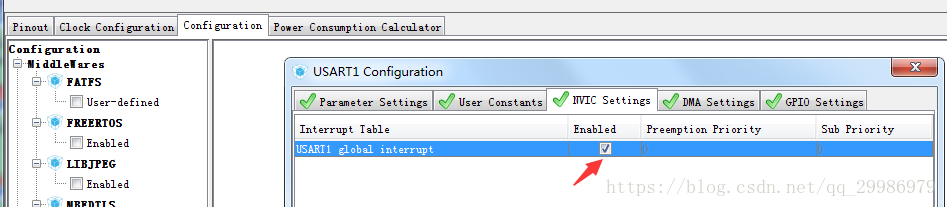

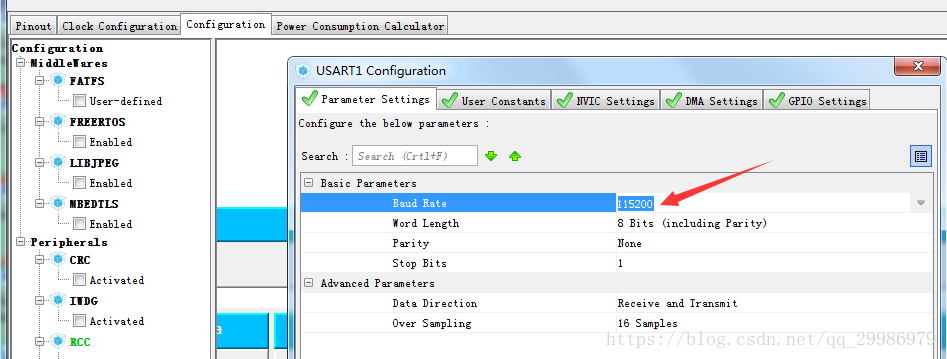

修改波特率和打开USART中断

修改IO口输出模式为高速，上拉输出

3.输出设置，选择对应的编译器

四.介绍程序的实现

1.USART的实现

uint8_t aRxBuffer[20];

uint8_t aTxStartMessages[] = "rnPlease enter 10 characters:rn";

HAL_UART_Transmit_IT(&huart1 ,(uint8_t*)aTxStartMessages,sizeof(aTxStartMessages)); //s发送

    HAL_UART_Receive_IT(&huart1,(uint8_t*)aRxBuffer,10);  //接收

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)  //放在main()函数下面就可以，把接受到的内容回发

{

    UNUSED(huart);

    HAL_UART_Transmit(&huart1,(uint8_t*)aRxBuffer,10,0xFFFF);//(uint8_t*)aRxBuffer为字符串地址，10为字符串长度，0xFFFF为超时时间

}

2.IO口驱动外设

#define led0_1  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_0, GPIO_PIN_SET)

#define led1_1  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_1, GPIO_PIN_SET)//IO口高电平输出

#define led2_1  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_2, GPIO_PIN_SET)//IO口高电平输出

#define led0_0  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_0, GPIO_PIN_RESET)

#define led1_0  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_1, GPIO_PIN_RESET)//IO口低电平输出

#define led2_0  HAL_GPIO_WritePin(GPIOC, GPIO_PIN_2, GPIO_PIN_RESET)//IO口高电平输出

3.延时函数

void Delay_Nus(uint32_t t)//us延时

{

uint8_t i;

while(t--)

{

i=25;

while(i--);

}

}

void Delay_Nms(uint32_t t)//ms延时

{

  while(t--)

  {

    Delay_Nus(1000);

  }

}
