PEDAKGL4201C-01
1
Electronic Components
KGL4201/KGL4201C
Preliminary
This version:
Dec. 2000
10Gb/s/ 12.5Gb/s 8:1 Multiplexer
GENERAL DESCRIPTION
The KGL4201/KGL4201C converts low-speed 8bit parallel data streams into high-speed serial data stream
up to 10Gb/s/ 12.5Gb/s. Parallel input data loading is synchronized with the internal 1/8 clock generated from
an input clock on chip. Serial output data are synchronized with the input clock. The device is ideal for use in
the 10Gb/s/ 12.5Gb/s optical communication systems.
FEATURES
•
High speed operation
•
Single power supply voltage
•
Low power dissipation
•
Rise/Fall time
•
Complementary serial data outputs
•
Package
: 10Gb/s for KGL4201
12.5Gb/s for KGL4201C
:2V
: 2.4 W
: 30 ps
: 40 pin QFP
ABSOLUTE MAXIMUM RATINGS
No.
1
2
3
4
6
7
Item
Supply Voltage for Internal Logic
Supply Voltage for Output Buffer
Clock Input
Data Inputs
Temperature at Package Base under Bias
Storage Temperature
Symbol
V
DD
V
B
CK
D0 to 7
T
s
T
st
Min.
–0.3
–0.3
–0.3
–0.3
–45
–45
Max.
2.3
2.3
1.5
1.5
100
125
Unit
V
V
V
V
°C
°C
1/7
PEDAKGL4201C-01
1
Electronic Components
KGL4201/KGL4201C
FUNCTIONAL BLOCK DIAGRAM
D0
D2
D4
D6
D1
D3
D5
D7
4:1
MUX
2:1
MUX
4:1
MUX
delay
1/8CK
1/8CK
1/2CK
Output Latch
Q
Q
delay
1/8CK
1/8CK
1/4 divider
1/2CK
1/2
divide
CK
TIME CHART
CK
D0
D1
D2
D3
D4
D5
D6
D7
Q
Q
1/8 CK
1/8 CK
A1
B1
C1
D1
E1
F1
G1
H1
A2
B2
C2
D2
E2
F2
G2
H2
A3
B3
C3
D3
E3
F3
G3
H3
A4
B4
C4
D4
E4
F4
G4
H4
A1 B1 C1 D1 E1 F1 G1 H1 A2 B2 C2 D2 E2 F2 G2 H2 A3 B3 C3
A1 B1 C1 D1 E1
F1 G1 H1 A2 B2 C2 D2 E2
F2 G2 H2 A3
B3 C3
2/7
PEDAKGL4201C-01
1
Electronic Components
KGL4201/KGL4201C
RECOMMENDED OPERATING CONDITIONS
Item
Power Supply Voltage for Internal Logic
Power Supply Voltage for O utput Buffer
O perating Tem perature R ange at Package Base
Sym bol
V
DD
V
B
T
s
M in.
1.9
1.9
0
Typ.
2.0
2.0
M ax.
2.1
2.1
70
Unit
V
V
°C
ELECTRICAL CHARACTERISTICS
DC Characteristics
Item
Power Dissipation
H igh-level 1/8CK O utput Voltage
Low-level 1/8C K O utput Voltage
D ata O utput Voltage Swing
C lock Input Voltage Swing
H igh-level D ata Input Voltage
Low-level D ata Input Voltage
Sym bol
P
V
OH
V
OL
V
OD
V
CK
V
ID H
V
ID L
50
Ω
Load
Capacitive Coupling
V
DD
= 2 V, V
B
= 2 V , Ts = 25 °C
Test Condition
M in. Typ. M ax. Unit
—
0.85
0
0.7
0.5
0.8
0
2.4
3.0
1.3
0.3
1.2
0.9
1.3
0.3
W
V
V
Vp-p
Vp-p
V
V
AC Characteristics
Item
Maximum Operating
Clock Frequency
KGL4201
KGL4201C
Symbol
fo
t
DS
t
DH
∆t
M
tr
tf
fo = 10
GHz
Test Condition
V
DD
= 2 V, V
B
= 2 V, Ts = 25°C
Min.
Typ.
Max.
Unit
10
12.5
450
–400
550
400
20
20
—
—
500
–350
650
ps
fo = 12.5 GHz
500
30
30
40
40
ps
ps
—
—
550
–300
GHz
ps
ps
Set-up Time (Data to 1/8CK
↓
)
Hold Time (1/8CK
↓
to Data)
CK-D0 to 7
Phase Margin
Rise Time (Q,Q)
Fall Time (Q,Q)
KGL4201
KGL4201C
(20 to 80% )
(20 to 80% )
3/7
PEDAKGL4201C-01
1
Electronic Components
KGL4201/KGL4201C

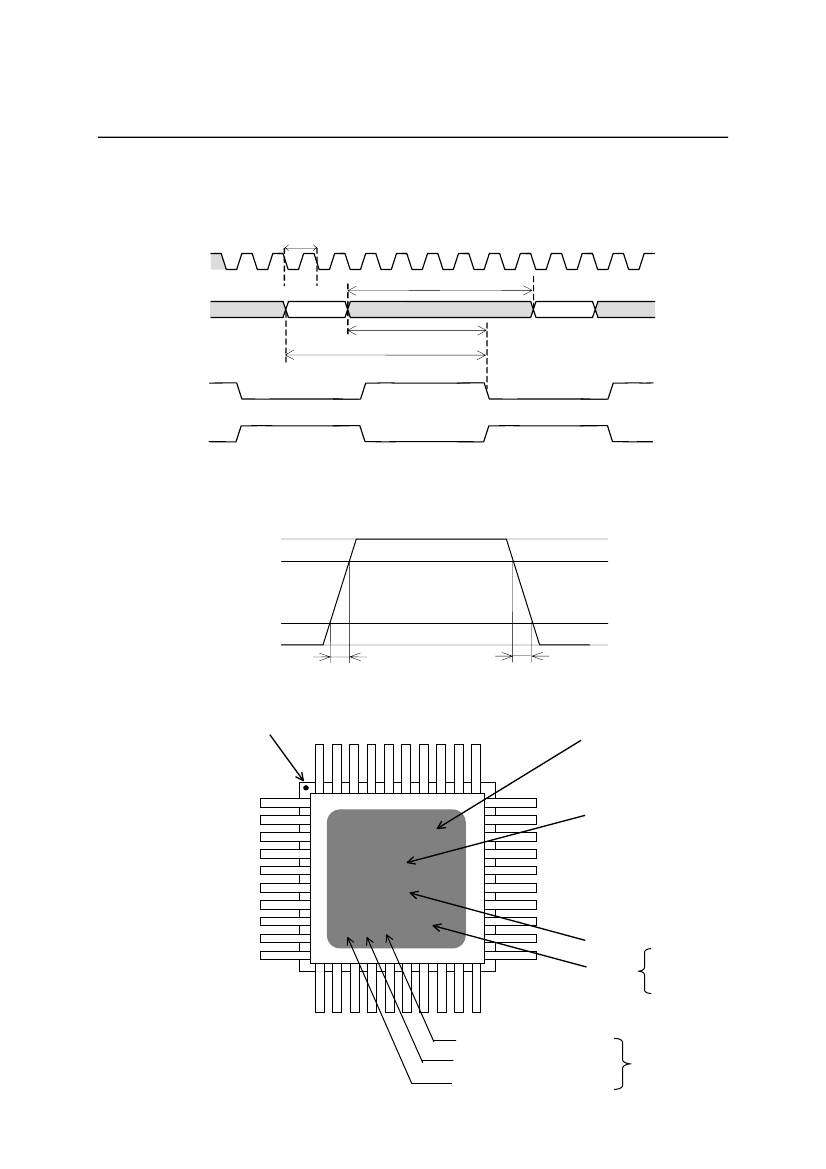

WAVEFORMS
∆t
C
CK
D0
to D7
Valid
t
DH
t
DS
1/8CK
1/8CK
∆t
C
= 1/fo
RISE AND FALL TIME
100%
80%
∆t
M
Valid
20%
0%
tr
tf
MARKING
INDEX
PRODUCTION NAME
31
1
COMPANY LOGO
KGL4201
1
JAPAN
XXX C
21
11
COUNTRY
GRADE
KGL4201
: BLANK
KGL4201C : C
MONTHLY LOT NUMBER
PRODUCTION MONTH
PRODUCTION YEAR
LOT NUMBER
4/7
PEDAKGL4201C-01
1
Electronic Components
KGL4201/KGL4201C

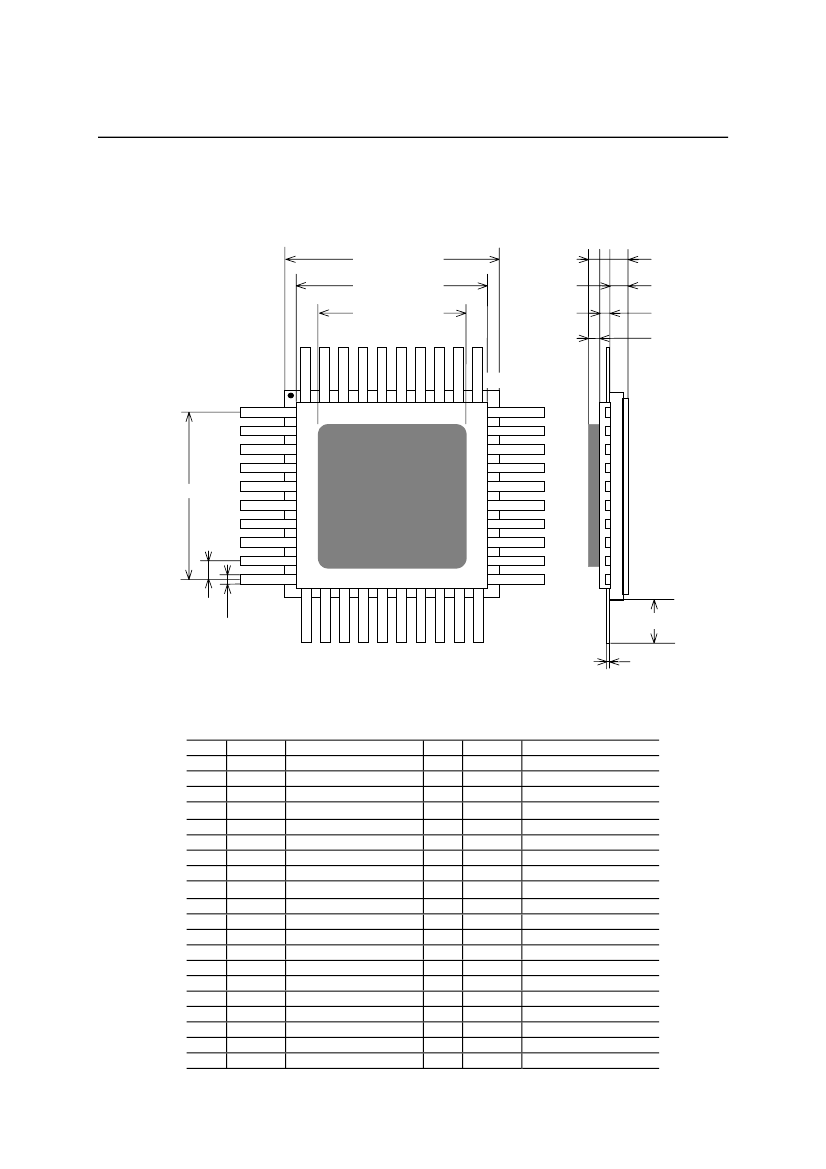

PACKAGE INFORMATION
14.84±0.15 SQ
13.01±0.15 SQ
10.67±0.15 SQ
1.84±0.15
0.7±0.05
0.5±0.05
0.64±0.05
31
1
11.43
KGL4201
KGL4201
1
1
JAPAN
JAPAN
XXX
XXX C
C
1.27
0.40±0.05
11
21
2±0.3
0.125±0.05
Top View
unit : mm
Pin Assignment
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Symbol
G
Q
G
Q
G
G
1/8CK
G
1/8CK
V
B
G
V
DD
D0
G
D2
D4
G
D6
G
G
Description
Ground
Data Output(Pos.)
Ground
Data Output(Neg.)
Ground
Ground
1/8 Clock Output
Ground
1/8 Clock
Output
Power Supply (Buffer)
Ground
Power Supply (Logic)
Data Input 0
Ground
Data Input 2
Data Input 4
Ground
Data Input 6
Ground
Ground
Pin
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Symbol
V
DD
G
G
CK
G
G
RCK
G
G
G
G
V
DD
D7
G
D5
D3
G
D1
V
B
V
DD
Description
Power Supply (Logic)
Ground
Ground
Clock Input
Ground
Ground
Clock Reference Bias
Ground
Ground
Ground
Ground
Power Supply (Logic)
Data Input 7
Ground
Data Input 5
Data Input 3
Ground
Data Input 1
Power Supply (Buffer)
Power Supply (Logic)
5/7
