2020年02月21日 | stm32L151 tim trigger adc定时器触发单通道adc采样dma传输

“`

include “adc.h”

ifdef Debug

include “led.h”

include “string.h”

uint16_t tb=0;

//char dat[512]={0,};

uint8_t tc=0;

endif

__IO uint16_t ADC_ConvertedValue[40];

define ADC1_DR_ADDRESS ((uint32_t)0x40012458)

static void dma_adc_init(void)

{

DMA_InitTypeDef DMA_InitStructure;

NVIC_InitTypeDef NVIC_InitStructure;

/———————— DMA1 configuration ——————————/

/* Enable DMA1 clock */

RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);

/* DMA1 channel1 configuration */

DMA_DeInit(DMA1_Channel1);

DMA_InitStructure.DMA_PeripheralBaseAddr = ADC1_DR_ADDRESS;

DMA_InitStructure.DMA_MemoryBaseAddr = (uint32_t)&ADC_ConvertedValue;

DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;

DMA_InitStructure.DMA_BufferSize = 40;

DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;

DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Enable ;

DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;

DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;

DMA_InitStructure.DMA_Mode = DMA_Mode_Circular;

DMA_InitStructure.DMA_Priority = DMA_Priority_High;

DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;

DMA_Init(DMA1_Channel1, &DMA_InitStructure);

DMA_ITConfig(DMA1_Channel1,DMA_IT_TC,ENABLE);

DMA_ClearFlag(DMA1_FLAG_TC1);

/* Enable DMA1 channel1 */

DMA_Cmd(DMA1_Channel1, ENABLE);

NVIC_InitStructure.NVIC_IRQChannel=DMA1_Channel1_IRQn;

NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority= 0;

NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;

NVIC_InitStructure.NVIC_IRQChannelCmd=ENABLE;

NVIC_Init(&NVIC_InitStructure);

}

static void tim_trig_init(void)

{

TIM_TimeBaseInitTypeDef TIM_TimeBaseStructure;

RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM2 , ENABLE);

TIM_TimeBaseStructure.TIM_ClockDivision=0;//

TIM_TimeBaseStructure.TIM_CounterMode=TIM_CounterMode_Up;

TIM_TimeBaseStructure.TIM_Prescaler=320;//100k

TIM_TimeBaseStructure.TIM_Period=99;//1k

TIM_TimeBaseInit(TIM2, &TIM_TimeBaseStructure);

//TIM_ITConfig(TIM2,TIM_IT_Trigger,ENABLE);

TIM_SelectOutputTrigger(TIM2,TIM_TRGOSource_Update);

TIM_Cmd(TIM2, ENABLE);

}

void adc_init(void)//tim触发 1ms一个数据 dma数据搬运

{

ADC_InitTypeDef ADC_InitStructure;

GPIO_InitTypeDef GPIO_InitStructure;

dma_adc_init();

/* Enable the HSI oscillator */

RCC_HSICmd(ENABLE);

/* Check that HSI oscillator is ready */

while(RCC_GetFlagStatus(RCC_FLAG_HSIRDY) == RESET);

/* Enable ADC1 clock */

RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1, ENABLE);

// RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1, ENABLE);

RCC_AHBPeriphClockCmd(RCC_AHBPeriph_GPIOA, ENABLE);

//while(RCC_GetFlagStatus(RCC_FLAG_HSIRDY) == RESET);

/* Configure PB.12 (ADC Channel18) in analog mode |GPIO_Pin_2|GPIO_Pin_3*/

GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1;

GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AN;

GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL;

GPIO_Init(GPIOA, &GPIO_InitStructure);

/* ADC1 configuration */

ADC_InitStructure.ADC_ScanConvMode = DISABLE;

ADC_InitStructure.ADC_ContinuousConvMode =DISABLE;

ADC_InitStructure.ADC_ExternalTrigConvEdge = ADC_ExternalTrigConvEdge_Rising;

ADC_InitStructure.ADC_ExternalTrigConv=ADC_ExternalTrigConv_T2_TRGO ;

ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;

ADC_InitStructure.ADC_NbrOfConversion = 1;

ADC_Init(ADC1, &ADC_InitStructure);

ADC_RegularChannelConfig(ADC1, ADC_Channel_1, 1, ADC_SampleTime_4Cycles);

//ADC_InjectedChannelConfig(ADC1, ADC_Channel_1, 1, ADC_SampleTime_4Cycles);

//ADC_InjectedChannelConfig(ADC1, ADC_Channel_13, 2, ADC_SampleTime_4Cycles);

//ADC_InjectedChannelConfig(ADC1, ADC_Channel_Vrefint, 3, ADC_SampleTime_4Cycles);

//ADC_ExternalTrigInjectedConvEdgeConfig(ADC1,ADC_ExternalTrigConvEdge_Rising);

//ADC_ExternalTrigInjectedConvConfig(ADC1,ADC_ExternalTrigInjecConv_T2_TRGO);

ADC_DMARequestAfterLastTransferCmd(ADC1, ENABLE);

//ADC_ExternalTrigConvCmd(ADC1, ENABLE);

ADC_DMACmd(ADC1,ENABLE);

ADC_Cmd(ADC1, ENABLE);

/* Wait until the ADC1 is ready */

while(ADC_GetFlagStatus(ADC1, ADC_FLAG_ADONS) == RESET){}

ADC_SoftwareStartConv(ADC1);

tim_trig_init();

}

uint8_t check_dma_tc()

{

return tc;

}

void clear_dma_tc(){

tc=0;

}

uint16_t send2m(char *ptr,uint16_t d[])

{

char buf[10];

uint16_t l=0,i;

for(i=0;i<40-1;i++)

{

l=l+sprintf(buf,”%d,”,d[i]);

ptr=strcat(ptr,buf);

}

l=l+sprintf(buf,”%d”,d[39]);

ptr=strcat(ptr,buf);

return l;

}

void DMA1_Channel1_IRQHandler(void)

{

uint16_t i=0;

if(DMA_GetITStatus(DMA1_IT_TC1))

{

DMA_ClearFlag(DMA1_FLAG_TC1);

#ifdef Debug

tb++;

if(tb>5)

{

GPIO_ToggleBits(led_port,led_pin);

tb=0;

    }

    tc=1;

 #endif

}

}

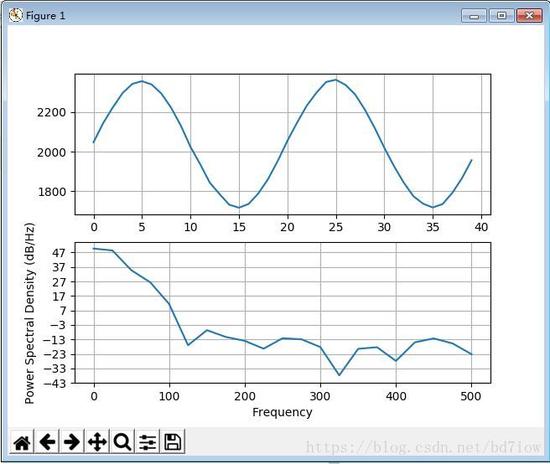

adc采集到50Hz信号数据（叠加在直流上），发送到PC，利用python对数据进行处理显示：

“`
