2020年02月01日 | MSP-EXP430F5529LP开发板006-UART库函数

串口是比较常用的开发中比较常用的部分了，这部分难点就是波特率的设置了，为此还特地下了篇英文手册，硬着头皮看了下，学会如何配置了，下面就是串口初始化部分

void myuart_init()

{

  //P3.3,4 = USCI_A0 TXD/RXD

  GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P3,GPIO_PIN3 + GPIO_PIN4);

  //Baudrate = 9600, clock freq = 4MHz

  //UCBRx = 26, UCBRFx = 1, UCBRSx = 0, UCOS16 = 1

  USCI_A_UART_initParam param = {0};

  param.selectClockSource = USCI_A_UART_CLOCKSOURCE_SMCLK;

  param.clockPrescalar = 26;

  param.firstModReg = 1;

  param.secondModReg = 0;

  param.parity = USCI_A_UART_NO_PARITY;

  param.msborLsbFirst = USCI_A_UART_LSB_FIRST;

  param.numberofStopBits = USCI_A_UART_ONE_STOP_BIT;

  param.uartMode = USCI_A_UART_MODE;

  param.overSampling = USCI_A_UART_OVERSAMPLING_BAUDRATE_GENERATION;

  if (STATUS_FAIL == USCI_A_UART_init(USCI_A0_BASE, ¶m))

  {

      return;

  }

  //Enable UART module for operation

  USCI_A_UART_enable(USCI_A0_BASE);

  //Enable Receive Interrupt

  USCI_A_UART_clearInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);

  USCI_A_UART_enableInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);

}

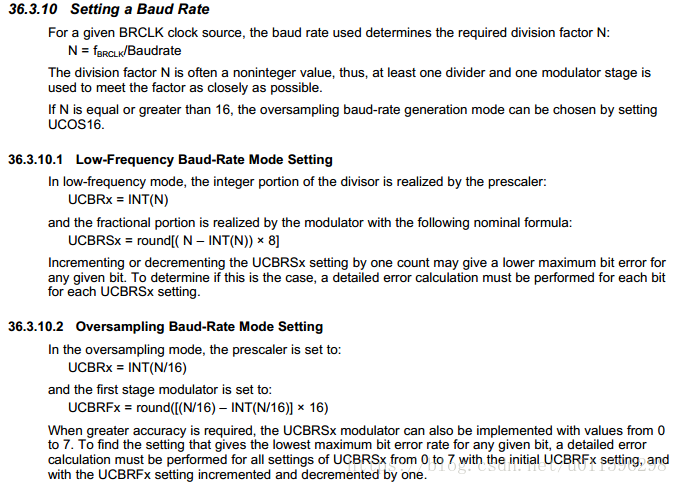

看到这一部分大家就应该比较眼熟了，有点类似32的uart初始化，但不同的是波特率部分，需要根据时钟源进行计算。这里我选择的是SMCLK，时钟配置沿袭了上一篇文章的配置，也就是SMCLK为4MHz。那么具体怎么设置呢？这里就只能参看英文手册了，这一部分截图如下

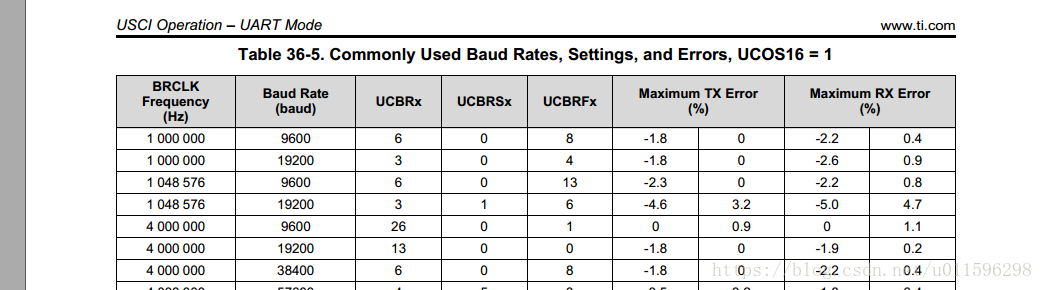

大体思路就是先计算N，然后根据N值进行后面的设置，N大于等于16可以设置为Oversampling，UCOS16 = 1；N小于16可以设置为Low-Frequency，UCOS16 = 0。UCBR, UCBRFx , UCBRSx三个寄存器可以按上述进行计算，但是TI为我们提供了不同时钟源下的取值，还是比较人性化的。下面截图部分，可以很轻松找到4MHz下9600bps的对应设置

整体代码在下面

//*****************************************************************************

#include "driverlib.h"

//*****************************************************************************

//

//Target frequency for MCLK in kHz

//

//*****************************************************************************

#define UCS_MCLK_DESIRED_FREQUENCY_IN_KHZ   24000

//*****************************************************************************

//

//MCLK/FLLRef Ratio

//

//*****************************************************************************

#define UCS_MCLK_FLLREF_RATIO   6

//*****************************************************************************

//

//Variable to store current Clock values

//

//*****************************************************************************

uint32_t clockValue = 0;

//*****************************************************************************

//

//Variable to store status of Oscillator fault flags

//

//*****************************************************************************

//*****************************************************************************

//

//XT1 Crystal Frequency being used

//

//*****************************************************************************

#define UCS_XT1_CRYSTAL_FREQUENCY    32768

//*****************************************************************************

//

//XT2 Crystal Frequency being used

//

//*****************************************************************************

#define UCS_XT2_CRYSTAL_FREQUENCY   4000000

//*****************************************************************************

//

//Desired Timeout for XT1 initialization

//

//*****************************************************************************

#define UCS_XT1_TIMEOUT 50000

#define TIMER_PERIOD 399

#define DUTY_CYCLE  100

#define UCS_XT2_TIMEOUT 50000

uint16_t status;

uint8_t returnValue = 0;

void myclock_init()

{

  //Set VCore = 1 for 12MHz clock

  PMM_setVCore(PMM_CORE_LEVEL_1);//主频提高后，VCore电压也需要随之配置

  //Initializes the XT1 and XT2 crystal frequencies being used

  UCS_setExternalClockSource(UCS_XT1_CRYSTAL_FREQUENCY,UCS_XT2_CRYSTAL_FREQUENCY);//设置外部时钟源的频率，没什么实际设定

  //Initialize XT1. Returns STATUS_SUCCESS if initializes successfully

  GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P5,GPIO_PIN4 + GPIO_PIN5);//XT1口不作为普通IO

  returnValue = UCS_turnOnLFXT1WithTimeout(UCS_XT1_DRIVE_0,UCS_XCAP_3,UCS_XT1_TIMEOUT);//启动XT1

  //Startup HF XT2 crystal Port select XT2

  GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P5,GPIO_PIN2 + GPIO_PIN3);//XT2口不作为普通IO

  //Initialize XT2. Returns STATUS_SUCCESS if initializes successfully

  returnValue = UCS_turnOnXT2WithTimeout(UCS_XT2_DRIVE_4MHZ_8MHZ,UCS_XT2_TIMEOUT);//启动XT2

  //Set DCO FLL reference = REFO

  UCS_initClockSignal(UCS_FLLREF,UCS_XT2CLK_SELECT,UCS_CLOCK_DIVIDER_1);//XT2作为FLL参考

  //Set Ratio and Desired MCLK Frequency  and initialize DCO

  UCS_initFLLSettle(UCS_MCLK_DESIRED_FREQUENCY_IN_KHZ,UCS_MCLK_FLLREF_RATIO);//MCLK设置为24MHz

  //Set ACLK = REFO

  UCS_initClockSignal(UCS_ACLK,UCS_REFOCLK_SELECT,UCS_CLOCK_DIVIDER_1);//ACLK设置为32.768kHz

  UCS_initClockSignal(UCS_SMCLK,UCS_XT2CLK_SELECT,UCS_CLOCK_DIVIDER_1);//SMCLK设置为4MHz

}

void mypwm_init()

{

  //P2.0 as PWM output

  GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P2,GPIO_PIN0);

  //Generate PWM - Timer runs in Up mode

  Timer_A_outputPWMParam param = {0};

  param.clockSource = TIMER_A_CLOCKSOURCE_SMCLK;

  param.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_1;

  param.timerPeriod = TIMER_PERIOD;

  param.compareRegister = TIMER_A_CAPTURECOMPARE_REGISTER_1;

  param.compareOutputMode = TIMER_A_OUTPUTMODE_RESET_SET;

  param.dutyCycle = DUTY_CYCLE;

  Timer_A_outputPWM(TIMER_A1_BASE, ¶m);

}

void myuart_init()

{

  //P3.3,4 = USCI_A0 TXD/RXD

  GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P3,GPIO_PIN3 + GPIO_PIN4);

  //Baudrate = 9600, clock freq = 4MHz

  //UCBRx = 26, UCBRFx = 1, UCBRSx = 0, UCOS16 = 1

  USCI_A_UART_initParam param = {0};

  param.selectClockSource = USCI_A_UART_CLOCKSOURCE_SMCLK;

  param.clockPrescalar = 26;

  param.firstModReg = 1;

  param.secondModReg = 0;

  param.parity = USCI_A_UART_NO_PARITY;

  param.msborLsbFirst = USCI_A_UART_LSB_FIRST;

  param.numberofStopBits = USCI_A_UART_ONE_STOP_BIT;

  param.uartMode = USCI_A_UART_MODE;

  param.overSampling = USCI_A_UART_OVERSAMPLING_BAUDRATE_GENERATION;

  if (STATUS_FAIL == USCI_A_UART_init(USCI_A0_BASE, ¶m))

  {

      return;

  }

  //Enable UART module for operation

  USCI_A_UART_enable(USCI_A0_BASE);

  //Enable Receive Interrupt

  USCI_A_UART_clearInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);

  USCI_A_UART_enableInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);

}

unsigned int i;

uint8_t transmitData = 0x00;

uint8_t receivedData = 0x00;

bool send_ready=0;

void main (void)

{

  //Stop WDT

  WDT_A_hold(WDT_A_BASE);

  myclock_init();

  mypwm_init();

  myuart_init();

  //Verify if the Clock settings are as expected

  clockValue = UCS_getMCLK();

  clockValue = UCS_getACLK();

  clockValue = UCS_getSMCLK();

  // Enable global interrupt

  __bis_SR_register(GIE);

  //Loop in place

  while (1)

  {

  }

}

//******************************************************************************

//

//This is the USCI_A0 interrupt vector service routine.

//

//******************************************************************************

#if defined(__TI_COMPILER_VERSION__) || defined(__IAR_SYSTEMS_ICC__)

#pragma vector=USCI_A0_VECTOR

__interrupt

#elif defined(__GNUC__)

__attribute__((interrupt(USCI_A0_VECTOR)))

#endif

void USCI_A0_ISR (void)

{

  switch (__even_in_range(UCA0IV,4))

  {

    //Vector 2 - RXIFG

    case 2:

      receivedData = USCI_A_UART_receiveData(USCI_A0_BASE);

      USCI_A_UART_transmitData(USCI_A0_BASE,receivedData);

      break;

    default:

      break;

  }

}

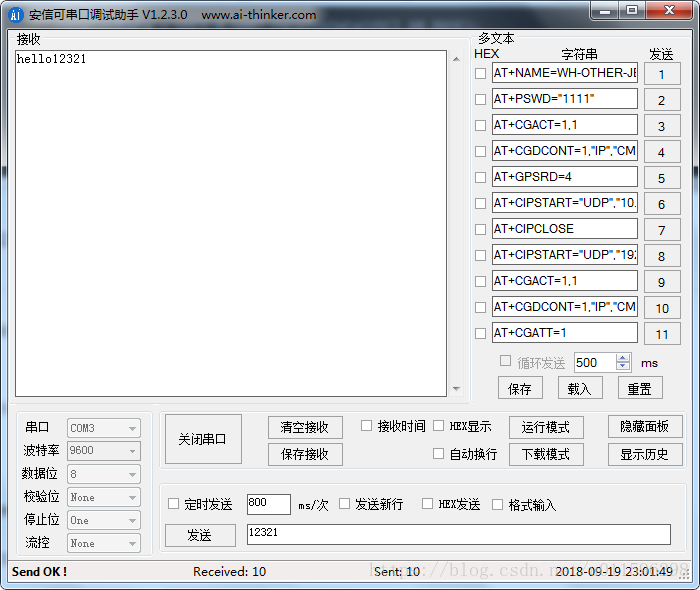

实现上位机向430发送数据，原封不动返回
