GALILEO2P

描述：
Single Board Computers Beaglebone Black
分类：
开发板/开发套件/开发工具
文件大小：
156KB，共2页
制造商：
Intel(英特尔)
厂商官网：
http://www.intel.com/
GALILEO2P 在线购买

供应商：

器件：GALILEO2P

价格：-

最低购买：-

库存：点击查看

点击购买

概述
Single Board Computers Beaglebone Black
器件参数
参数名称
属性值
产品种类
Product Category
Development Boards & Kits - x86
制造商
Manufacturer
Intel(英特尔)
RoHS
Details
产品
Product
Development Boards
工具用于评估
Tool Is For Evaluation Of
Quark SoC X1000
Core
Intel Quark SoC X1000
Description/Function
Provides a programmable control PCB for the maker community, students, and professional developers
Dimensions
123.8 mm x 72 mm
用于
For Use With
Arduino
频率
Frequency
400 MHz
接口类型
Interface Type
Ethernet, I2C, SPI, UART, USB
工作电源电压
Operating Supply Voltage
7 V to 15 V
系列
Packaging
Bulk
Processor Series
Intel Quark SoC X1000
工厂包装数量
Factory Pack Quantity
5
单位重量
Unit Weight
13.072001 oz
文档预览

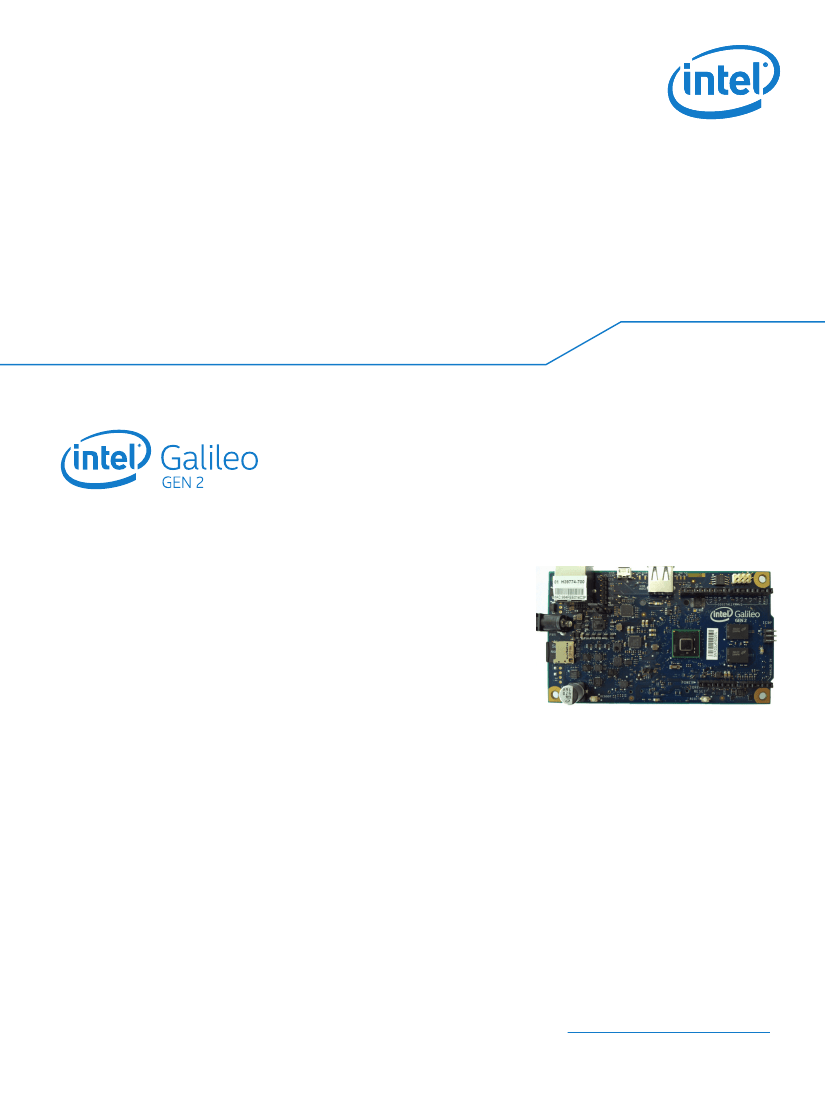

Product Brief
Intel® Galileo Gen 2
Development Board
Intel Galileo Gen 2
Development Board
®
The 2nd generation Intel® Galileo board provides a programmable control PCB
for the maker community, students, and professional developers. Based on the
Intel® Quark™ SoC X1000, a 32-bit Intel® Pentium® processor-class system on a
chip (SoC), the genuine Intel® processor and surrounding native I/O capabilities
of the Intel Galileo board (Gen 2) provide a fully featured offering for a wide range
of applications. The board also provides a simpler and more cost-effective
development environment compared to the Intel® Atom™ processor- and
Intel® Core™ processor-based designs.
2nd Generation Product
Enhancements
The Intel Galileo board (Gen 2) delivers
improved features and functionality in
the following areas:
•
12 GPIOs fully native for greater speed
and improved drive strength.
•
12-bit PWM for more precise control
of servos and smoother response.
•
12 V Power-over-Ethernet capable.
•
Power supplies from 7 V to 15 V
are supported.
•
Serial console UART header is com-
patible with FTDI USB converters.
•
Console UART1 can be redirected to
Arduino* headers in sketches, which
can eliminate the need for soft-serial.
Open Source Hardware
The Intel Galileo board (Gen 2) is an
open source hardware design. Sche-
matics, Cadence Allegro board files,
and bill of materials (BOM) are freely
available for download.
Extensive Expandability
In addition to Arduino hardware and
software compatibility, the Intel
Galileo board (Gen 2) includes the
following industry-standard I/O
ports and features:
•
Full-sized mini-PCI Express* slot
•
10/100 Mbps Ethernet* RJ45 port
with PoE support
•
Micro-SD slot
•
TTL UART 6-pin header
•
USB 2.0 Host port
•
USB 2.0 Client port
Target Software
Use the Arduino Software Develop-
ment Environment to create programs
for Galileo called “sketches.” To run a
sketch on the board:
1. Connect power.
2. Connect the board’s USB Client port
to a computer.
3. Upload the sketch using the IDE
interface.
The sketch runs on the Galileo board
and communicates with the Linux*
kernel in the board firmware using the
Arduino I/O adapter. For complete de-
tails on programming your board, see
the
Intel® Galileo Getting Started Guide.
Arduino Uno R3*-compatible
Getting familiar with the board and de-
veloping applications is a snap because
the Intel Galileo board (Gen 2) matches
the Arduino 1.0 pinout and is also
software-compatible with the Arduino
Software Development Environment.
Intel® Galileo Gen 2 Development Board
SPECIFICATIONS
DIMENSIONS
ATTACHMENT
123.8 mm (L) × 72.0 mm (W)
USB connectors, RJ45 (Ethernet) jack, and power jack slightly extend beyond these dimensions
Four screw holes 4 mm (diameter)
Arduino-compatible headers containing:
• 20 digital I/O (12 fully native speed)
• 6 analog inputs
• 6 PWMs with 12-bit resolution
• 1 SPI master
• 2 UARTs (1 shared with console UART)
• 1 I
2
C master
6-pin console UART (compatible with FTDI USB converters)
6-pin ICSP
10-pin JTAG for debugging
RJ45 Ethernet, Power over Ethernet capable
USB 2.0 Host (standard Type A)
USB 2.0 Client (micro-USB Type B)
Mini-PCI Express* 1x slot
Jack with increased range (7 to 15 V)
Supports Power-over-Ethernet (requires PoE module installation)
Header for RTC power
Reset for sketch and attached shield resets 10/100 Mbps Ethernet
Reboot to reset the Intel® Quark™ SoC X1000
CONNECTORS
POWER
BUTTONS
COMMUNICATIONS
PORTS
USB 2.0 Host port (standard Type A)
USB 2.0 Client port (micro-USB Type B)
TTL UART 6-pin header (compatible with FTDI converters)
Mini-PCI Express* (mPCIe*) slot with USB 2.0 Host support
PROCESSOR FEATURES
MODEL
SPEED
CORES/THREADS
INSTRUCTION SET ARCHITECTURE (ISA)
L1 CACHE
SRAM
PACKAGING
TECHNOLOGIES SUPPORTED
STORAGE OPTIONS
FIRMWARE/BOOTLOADER
SRAM
DRAM
SD CARD (OPTIONAL)
USB
EEPROM
8 MB NOR Flash
512 KB (embedded)
256 MB DDR3
Up to 32 GB
Compatible with any USB 2.0 storage device (USB drive/stick)
8 KB (programmed via the EEPROM library)
Intel® Quark™ SoC X1000
400 MHz
1/1
32-bit Intel® Pentium® processor-compatible ISA
16 KB
512 KB on-die, embedded; 800 MT/s
15 mm × 15 mm BGA
ACPI-compatible with CPU sleep states
Integrated real-time clock (RTC)
Optional 3 V coin cell battery for operation between turn-on cycles
This Intel® Galileo design document is licensed by Intel under the terms of the Creative Commons Attribution Share-Alike License (ver. 4), subject to the following
terms and conditions. The Intel® Galileo design document IS PROVIDED “AS IS” AND “WITH ALL FAULTS.” Intel DISCLAIMS ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED REGARDING THE GALILEO DESIGN OR THIS GALILEO DESIGN DOCUMENT INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Intel® may make changes to the specifications, schematics and product descriptions at any time, without notice. The Customer must not rely on the absence
or characteristics of any features or instructions marked “reserved” or “undefined.” Intel® reserves these for future definition and shall have no responsibility
whatsoever for conflicts or incompatibilities arising from future changes to them.
Copyright © 2014 Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.
* Other names and brands may be claimed as the property of others.
MB/BL/0614
Please Recycle 330736-001
